4

DESIGN

INFORMATION

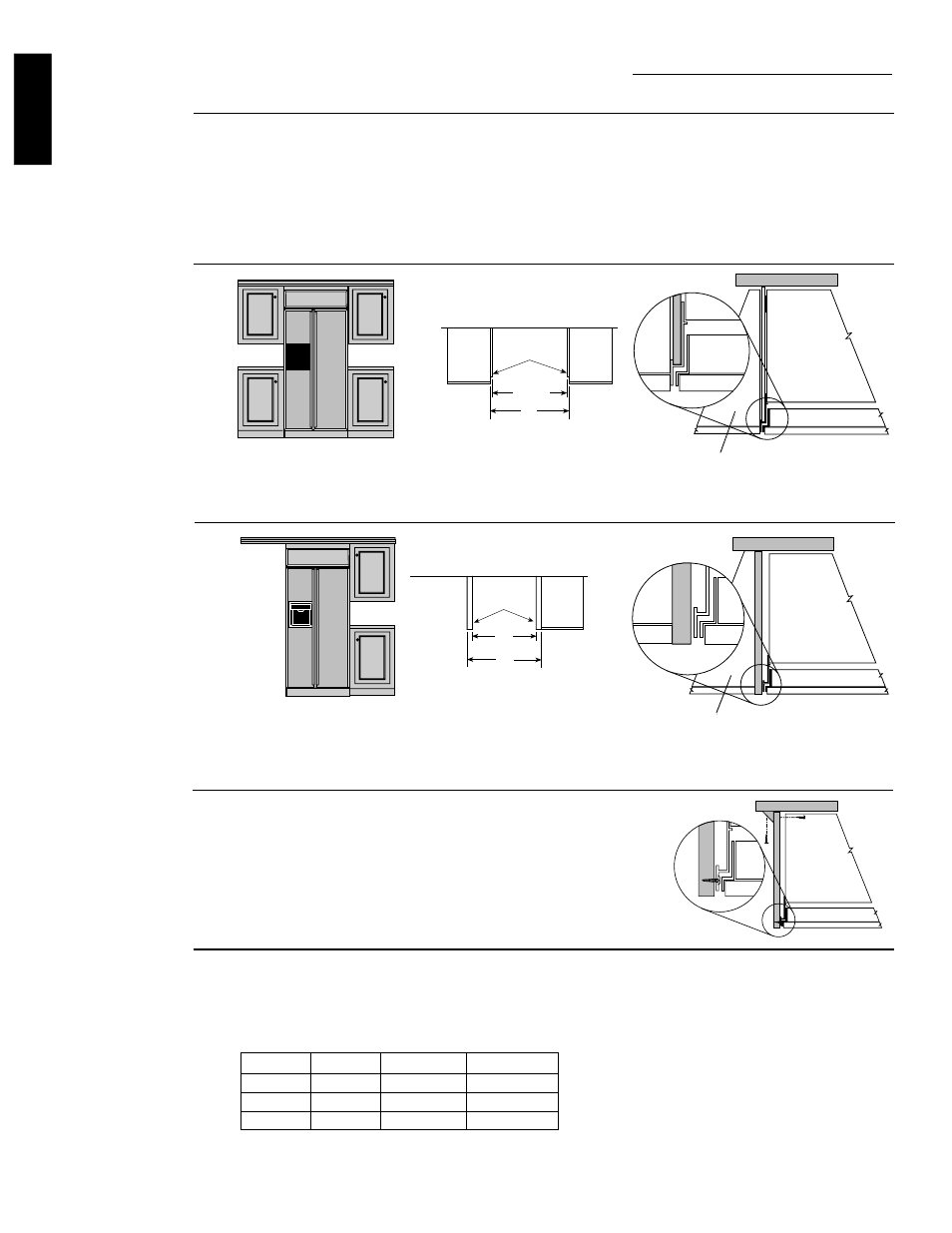

Design Information

42" Built-In Refrigerators

Installation
At End-of-Run

Frameless
Cabinets

Note: 1/2" thick side panels shown. Side panels can
be any thickness. Add side panel thickness to outside
trim width (42") to calculate the rough-in dimension.
The leading (front) edge must be finished to match
surrounding cabinetry.

Side panels, 1/2" minimum thickness are
required when using frameless cabinets.
The side panel acts as a spacer between the
cabinet and the case trim and prevents
interference with cabinet door swing. The
leading (front) edge must be finished to
match surrounding cabinetry.

1/2" To 3/4" Side Panels. Leading

Edge Flush With Cabinet

1/2" To 3/4" Side Panels. Leading

Edge Flush With Cabinet

Refrigerator

Cabinet

Refrigerator door

Side panels are required whenever the sides of the refrigera-
tor will be exposed.

1/2" to 3/4" side panels are normally set into place and
fastened to adjacent cabinetry or to the back wall before
rolling the refrigerator into the opening.

Installation
Between
Base &
Wall Cabinets

Note: 1/4" thick side panels can be
inserted into the case trim, making the
rough-in the same as the outside trim
width, 42".

1/4" Side Panels. Insert end of

side panel into trim

Installation Examples

Therefore, the rough-in dimensions must allow for side panel
thickness. In both a flush and semi-flush installation, the
finished dimension, (the width of the opening after side panels
are installed), must accommodate the full width of the
refrigerator.

See page 14 for side panel sizes.

Flush and Semi-Flush

Installations

Cabinet

Refrigerator door

Refrigerator

Cabinet

Flush and Semi-Flush

Installations

Refrigerator

Cabinet

Refrigerator door

Cabinet

Accessory
Panel Kits

Field installed door and grille panels are required. The factory
installed trim will accept accessory panel kits. White or black
Lexan

®

and stainless steel kits are available. Panels are cut to

size and ready to install. These panel kits must be ordered
separately.

Model

Black

White

Stainless

ZIS42N

ZWBP42

ZWWP42

ZWSP42

ZISW42D

ZWWP42D

ZWSP42D

ZISB42D

ZWBP42D

ZWSP42D

A wide range of custom appearance options can be created
with optional custom trim kits. See the opposite page for
examples and trim kit descriptions.

1/4" Thick

Side Panels

41-1/2"

Finished Dim.

42"

Roughed-In Dim.

43"

1/2" Thick

Side Panels

42"

Finished Dim.

Rough-In Dim.
