11

Custom Panel Dimensions

42" Built-In Refrigerator

ZISW42D (white dispenser)
ZISB42D (black dispenser)

Standard Trim with 1/4" Panels

• 1/4" Panels: Cut panels to size.
• Custom handles with 1/4" door panels require Trim Kit

ZKH1. When using ZKH1 with the standard dispenser
trim, the length of the custom handle, top to bottom
cannot exceed 11-3/4".

• Tubular stainless steel handle kit, ZKHSS1.
• Custom collar dispenser trim with 1/4" door panels

require trim kit ZWCD1.

Standard Trim with Panels secured to
1/4" thick backing

• Applying a raised panel design to a 1/4" thick backing

(screwed or glued): Cut 1/4" panels to size, fabricate
the raised panel to permit clearances of at least 2"
from the handle side for fingertip clearance of the
standard handle, 1-1/4" from the hinge side to avoid
striking adjacent cabinetry and 5/16" from the top and
bottom edges to allow for the trim flange, then install.

• Countertops adjacent to refrigerator installation

should be mitered 45

°

degrees.

Note:

ZWCD1 custom collar dispenser trim and

ZKHT1 custom handle kits cannot be used in this
configuration.

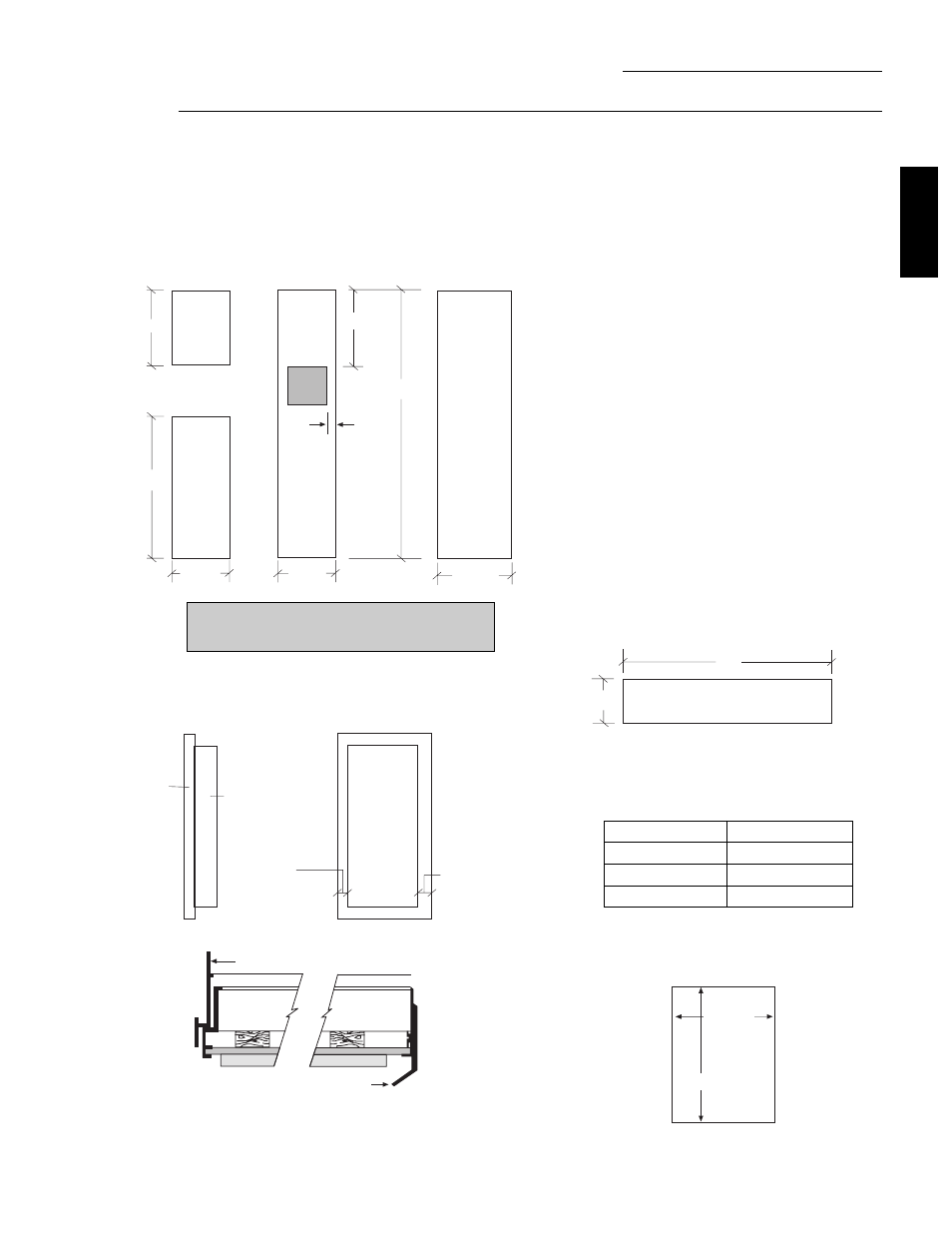

Custom Door Panel Dimensions Using Standard Trim

1/4" thick panels

or

Panels secured to 1/4" thick backing

The grille panel frame is factory assembled
for 84" installation height. If installation height
varies, order ZG2 trim kit for optional side trim
pieces. Cut grille panel to sizes shown below.

Installation Height

Panel Height

83"

8"

83-1/2"

8-1/2"

84-1/2"

9-1/2"

Important: Maintain 1-1/2" min. gap between
top of doors and bottom of panel frame.

CUSTOM PANEL

DIMENSIONS

1 1/4"
Clearance
hinge side

2" Clearance
handle side

Appearance
Panel

1/4"

Thick

Backing

Raised Panel on 1/4" Thick Backing

Using Standard Handles

Door
Handle

Case Trim

9 7/16"

12 5/16"

The Cutout is 9 7/16" wide
by 12 5/16" high.

Custom Dispenser Cutout

16 5/8"

2 9/16"

67 7/8"

15 1/4"

25 1/4"

17 11/16"

Fresh Food

Panel

Freezer Panel

Standard

Dispenser

Freezer Panel

Custom

Dispenser

15 1/4

36 7/8"

41"

9"

1/4" Thick Panel

Custom Grille Panel

Important: Maximum weight for fresh food panels
is 50 pounds and 30 pounds for freezer door panels.
