47

ZWCD1 Trim Kit

Custom Dispenser Collar

Note:

1/4" door panels do not

require routing.

• Secure top and bottom brackets to the dispenser,

using the screws previously removed.

• Install the custom panels according to the appropriate

installation instructions.

• Select the black or white collar trim according to

appearance desired.

• Match the indentations on the collar trim to the tabs

on the lower bracket. Push the collar flush against
the door.

• Drive 2 screws (provided) upwards through the collar

and into the brackets.

The use of this custom collar trim requires that the hole
for dispenser be located and cut

very accurately. 3/4"

door panels must be routed on all 4 sides of the
dispenser cutout.

Rout the back side of the panel 1/4" deep and 7/8" wide,
flush with the edge of the cutout.

Select the door panel size for your application.
• If using the standard 1⁄4" trim, follow the installation

instructions packed with the product.

• When using another optional trim kit, use the

instructions provided with that kit to install the panel
trim and/or custom handles.

• Remove the aluminum trim above and below the

dispenser. Discard trim.

• Remove and discard the standard full-width

dispenser trim.

• Remove 2 screws above and below the dispenser

recess. Retain screws.

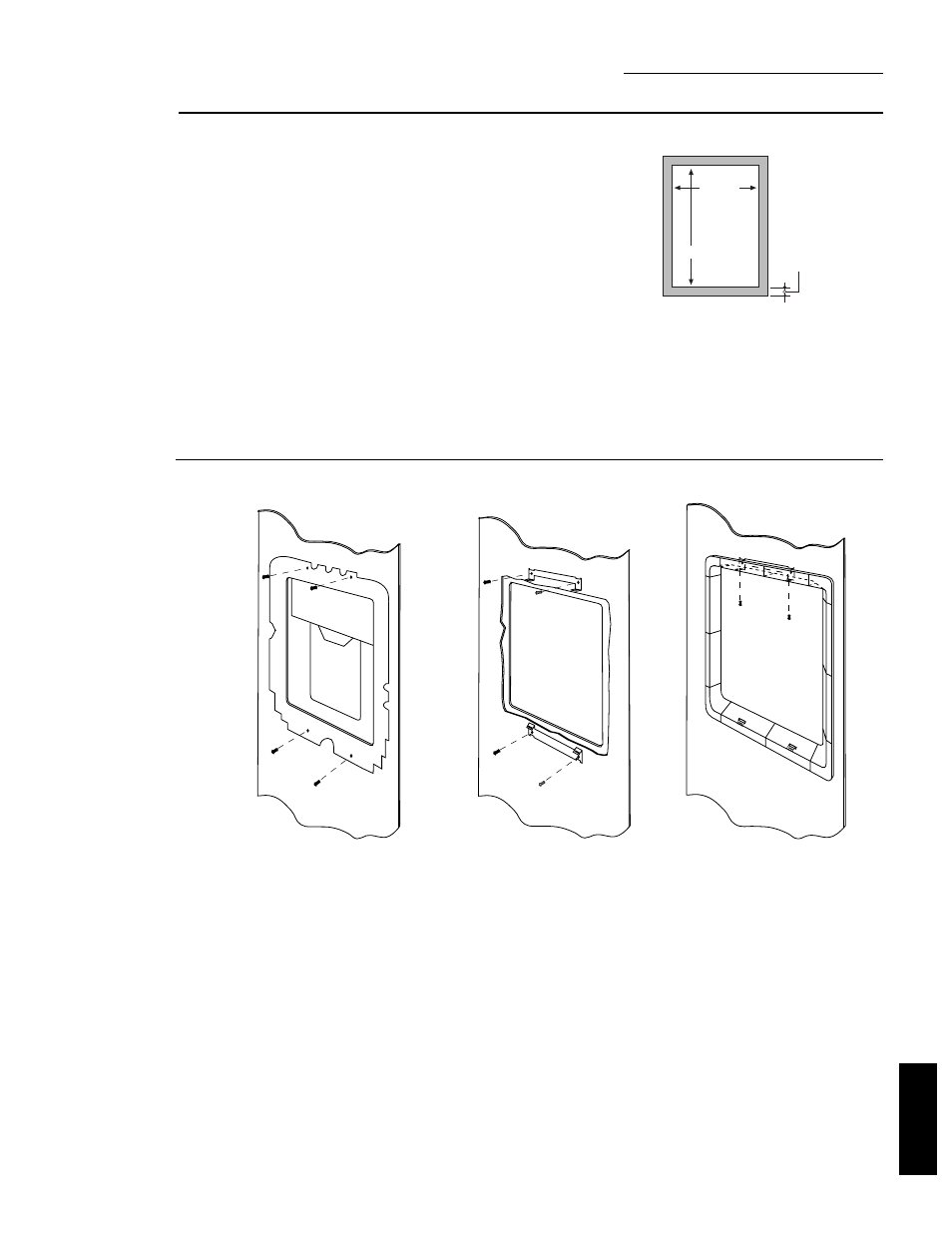

Cut dispenser
hole and rout
door panel

Install
collar
brackets
and trim

ZWCD1

INSTALLATION

9 7/16"

12 5/16"

7/8"
Wide
Rout

The Cutout is 9 7/16" wide
by 12 5/16" high. 3/4" panels
must be routed on all four
sides of the cutout. Rout
the back side of the panel
1/4" deep. 7/8" wide.
