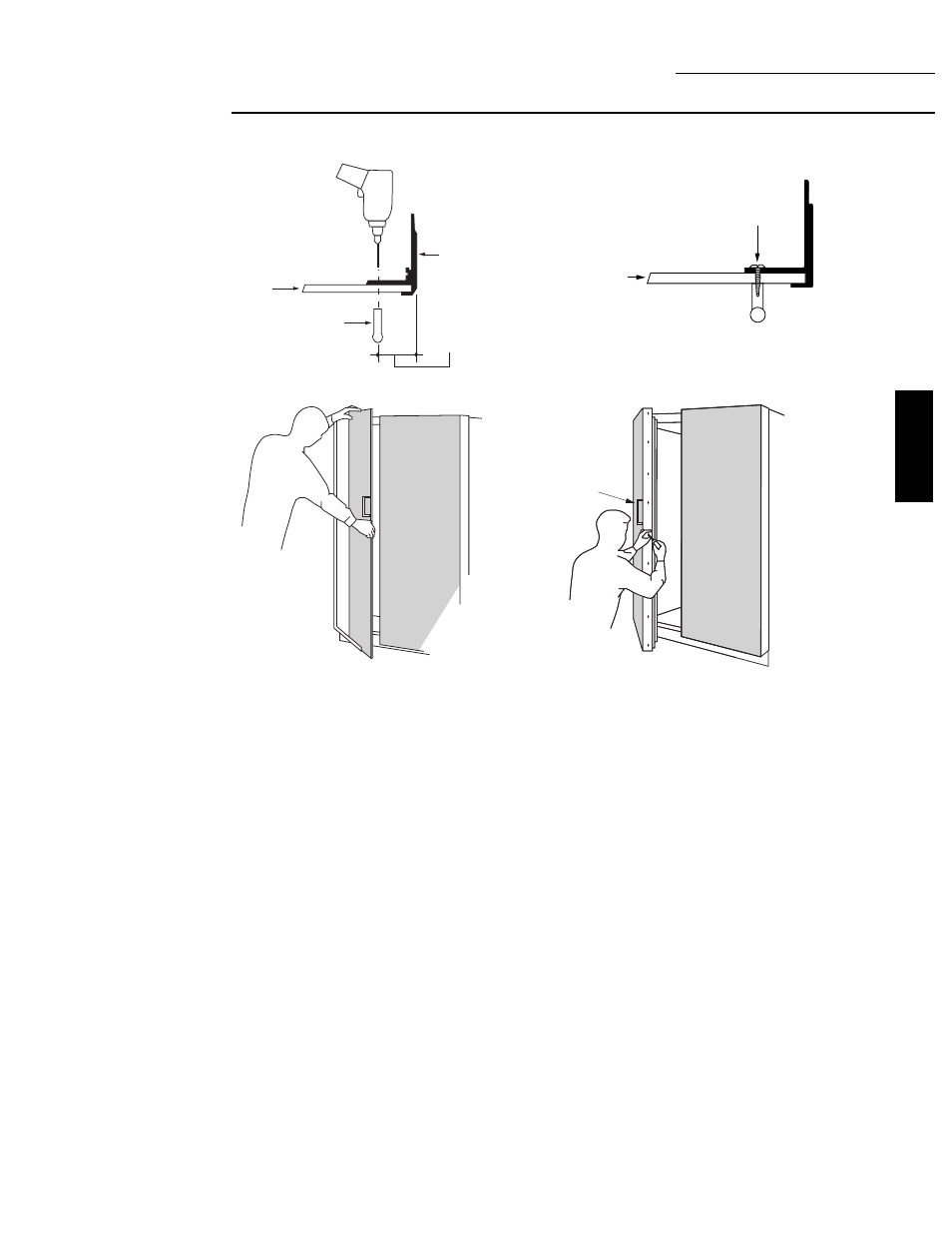

Step 3
Assemble panel,
extrusion and
handle

Extrusion

3/4" Min.
1-1/2" Max.

Handle

Decorator
Door Panel

ZKH1 Trim Kit (For 1/4" Panels)

Support for Custom Handles

Option 1 Installation

• Remove the door extrusions and door panels.
• Drill 1/16" pilot hole through extrusion.
• Drill clearance holes through the panel and extrusion.
• Assemble the door panel, extrusion and custom

handle.

• Install screw(s) long enough to pass through the

extrusion, door panel and into the handle.

• Slide the assembly into the door frame until the new

extrusion fits firmly against the steel door.

• Re-install original screws into the door extrusion.

23

Door Handle

Screw

Decorator
Door
Panel

ZKH1

INSTALLATION
