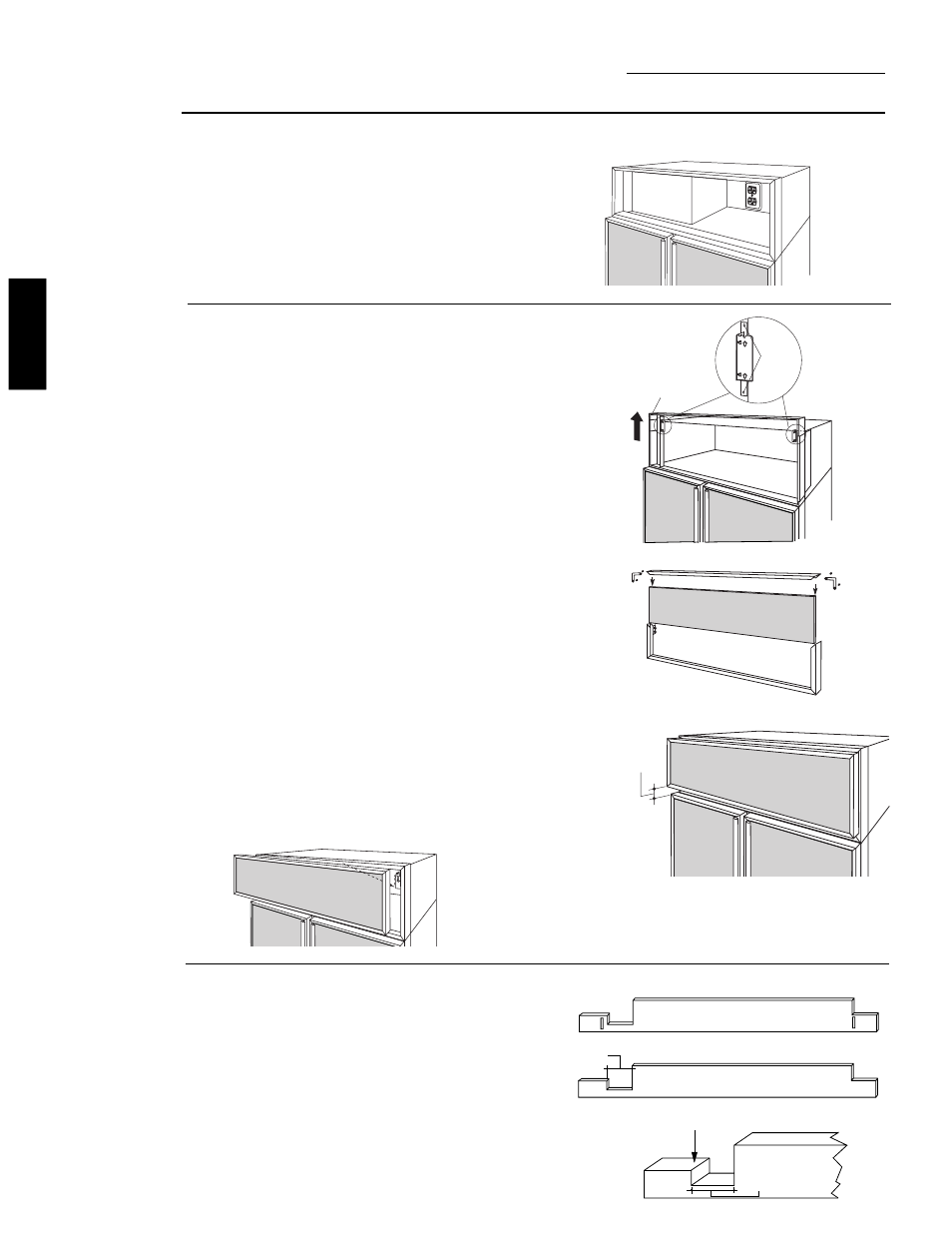

Installation

42" Built-In Refrigerator

20

Step 9
Connect
power

• Connect refrigerator power cord plug to properly

grounded receptacle, accessible through the top right
side of the grille opening.

• Check to make sure power to refrigerator is on by

opening refrigerator door to see if interior lights are
on.

If you are using 3/4" thick custom panels, SKIP THIS
STEP. See Custom Panel Dimensions for grille panel
sizes. Order ZKT42 kit and follow the installation
instructions packed with the kit.

The grille panel frame is factory assembled for an 84"
installation height. If installation height varies, order
ZG2 trim kit which provides optional side trim pieces.

Cut 1/4" thick custom panel to fit the frame,
41" wide, 9" deep.

To insert decorative grille panel into the frame:
• Remove screws (2 on each top corner) and “L”

brackets on each side.

• Slide panel into the frame and reassemble.
• Mount the grille panel by dropping into slots on the

case trim.

• For shipping purposes, the top case trim is secured at

84" installation height and must be adjusted.

To raise or lower case trim to other installation
heights:
• Loosen 2 screws on both sides and raise the top case

trim to meet soffit height or to the top of adjacent
cabinets.

• Tighten all 4 screws.

If installation height is more or less than 84", order ZG2
optional grille panel kit which accommodates 83",
83-1/2" and 84-1/2" heights. See installation instructions
page 26.

Step 10
Mount
Top Grille
Panel

1-1/2"

min.

gap

Important: Maintain 1-1/2" min. gap between top of doors and
bottom of panel frame.

• A standard toekick is supplied. Install with 2 screws

provided, adjust to desired height and tighten screws.

• A custom toekick can be installed to match or

complement the surrounding cabinetry.

– If a custom toekick is to be installed, use the

supplied toekick as a template to cut out notches
around hinges and waterline tubing.

• For 1/2" to 3/4" thick custom toekicks, additional

material should be removed and cut away. This will
allow the water and electrical umbilical tube to rotate
smoothly when the door is fully opened.

Step 11
Install
Toekick

1/4" Thick Custom Toekick

Standard Toekick (Packed with Product)

3-1/4"

1/2" to 3/4" Thick Custom Toekick Remove Additional Material

4-1/16"

PRODUCT

INSTALLATION

Top Case Trim

Raise To
Installation
Height

Screws
