17

Installation

42" Built-In Refrigerator

PRODUCT

INSTALLATION

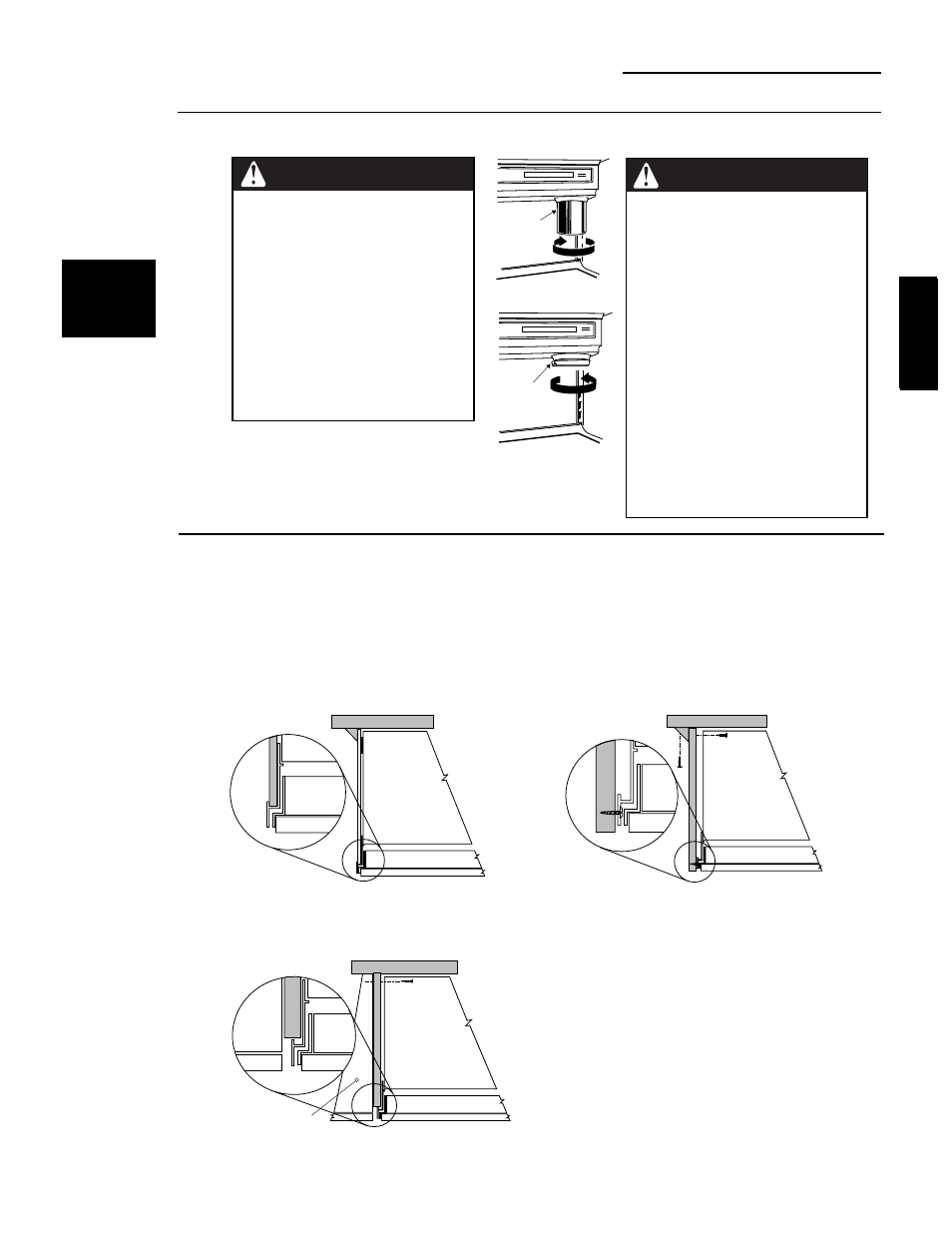

Step 3
Install
Side Panels

• Side panels are not required when the refrigerator is

installed into an enclosure. Skip this step if you are
installing in an enclosure.

• Side panels are required whenever the sides of the

refrigerator will be exposed and when installed
between frameless cabinets. See pages 3 and 4.

• Side panel installation will be determined by the

design of the side panel you have previously chosen.

• Side panels must be installed plumb.

• If you choose to use 1/4" side panels, they should be

inserted into the case trim as illustrated. Fasten the
panels to the refrigerator with Velcro strips (provided)
before setting refrigerator in place. See illustration A.

• 1/2" to 3/4" side panels are normally set into place and

fastened to adjacent cabinetry or the back wall before
rolling the refrigerator into the opening. See illustra-
tions B and C.

Refrigerator door

Side

Panel

Refrigerator

Cabinet

Refrigerator

Cabinet

Refrigerator door

Illustration B

Illustration A

1/2" to 3/4" Side Panels – Leading Edge Of Side Panel Is Flush

With Cabinet front. Fasten To The Back Wall Using A Cleat.

1/4" Side Panels – Insert End Of Side Panel Into Case Trim. Fasten

WIth Velcro Strips provided.

1/2" to 3/4" Side Panels – Recessed Front Edge of Side Panel.

Fasten To Adjacent Cabinet.

PRODUCT

INSTALLATION

Step 2A
For Installations
With A Reverse
Osmosis System
Only

Skip This
Step When
Not Using
RO System

If you use the bypass Plug and want a light shield
without the filter opening, order a replacement solid
light shield WR02X8967.

WARNING

When connecting a GE Reverse
Osmosis Water System to your
refrigerator, the only approved
installation is with a GE RVKIT.

If the water supply to the refrigerator is
from a Reverse Osmosis Water System
AND the refrigerator also has a water
filter, use the refrigerator’s filter bypass
plug. Using the refrigerator’s water
filtration cartridge in conjunction with
the RO filter can result in hollow ice
cubes and slower water flow from the
water dispenser.

ATTENTION

Lors du raccordement au réfrigérateur
du système GE de purification de l’eau
par osmose inversé seule l’installation
avec un ensemble GE RVKIT est
approuvée.

Si le réfrigérateur es alimenté en eau à
partir d’un système de filtration d’eau
par osmose inversée, et si le
réfrigérateur comporte également un
filtre à eau, utiliser le bouchon du
circuit de dérivation du filtre du
réfrigérateur. Si la cartouche de
filtration d”eau du réfrigérateur est
utilisée en conjonction avec le
système de filtration par osmose
inversée, on peut observer une
réduction du débit d’eau au point de
puisage, et la production de cubes de
glace creux.

Rotate

Clockwise

To Remove

Filter

Bypass

Plug

Illustration C

Cabinet

Refrigerator

Cabinet

Refrigerator door
