39

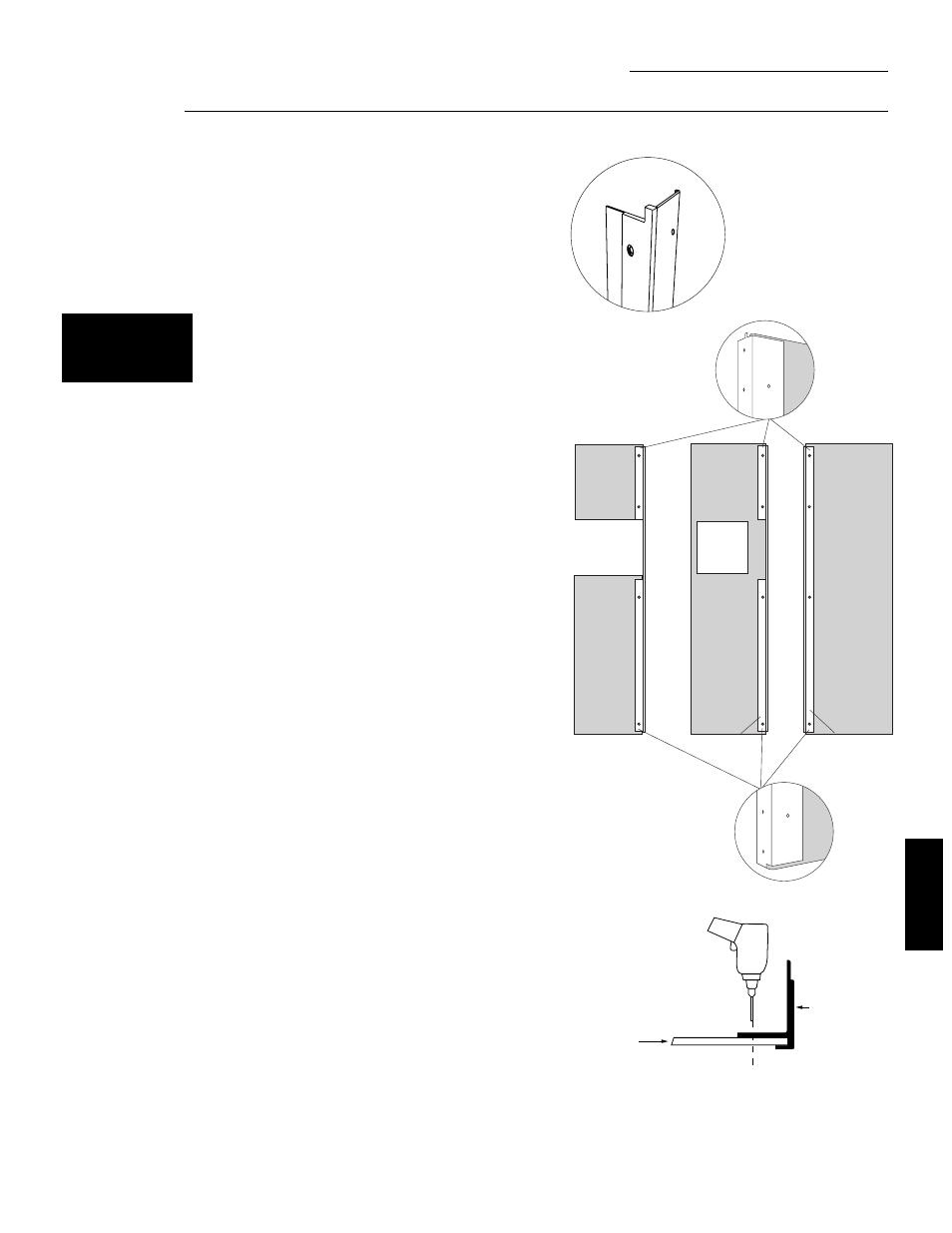

ZKHSS1 for 1/4" Panels

Tubular Stainless Steel Handles

Step 2:
Match
Handle Extrusions
to Handle

• Cut a piece of corrugated to use as a pad to protect

the panel finish. Use 1/2" thick section of plywood to
protect flooring when drilling.

• Place custom panels on the pad, appearance side

down.

Note: If panels are wood, be sure to note which end is
the top so that wood grain is in the correct direction on
both (or all 3) panels.

• On the back side of the panel – at the handle side,

measure and mark 1/4" below the top edge of the
panel with a pencil.

• Slip panels into new extrusion on the handle side of

the panels.

• Align the extrusion at the pencil mark, 1/4" below the

top of the panel.

• Follow the same procedure on the opposite panel.
• Tape the extrusions to the panels to prevent move-

ment.

• Center punch and drill 1/8" pilot holes through the

holes in the extrusion and into the panel.

• Turn panel over. On the appearance side, use 9/32" bit

to enlarge clearance hole.

IMPORTANT: Hole locations must be exact to accept handle
standoff and handle assembly.

For models with full width dispenser trim and 2 piece
freezer panels:
• Measure 1/4" from the top of the upper panel and 1/4"

from the bottom of the lower panel. Mark with pencil
on the back handle side.

• Align the extrusion on the pencil mark as shown, top

and bottom.

Note: Be sure to orient
extrusions and handles

correctly. The top ends of the

extrusions are cutout to fit the

shape of the top of the door.

Top
End

Decorator
Door
Panel

Extrusion

Back

Side

Freezer

Panel

Back

Side

Freezer

Lower

Panel

Freezer

Upper

Panel

Models

With Full Width

Dispenser Trim

Align Extrusion

1/4" Below Top

of Panel

Back

Side

Fresh

Food

Panel

Freezer

Extrusion

Fresh Food

Extrusion

FOR CUSTOM

WOOD

PANELS

See Step 2A
for Stainless
Steel panels

ZKHSS1

INSTALLATION
