14

Custom Panel Dimensions

42" Built-In Refrigerator

For All Monogram Built-In Refrigerators

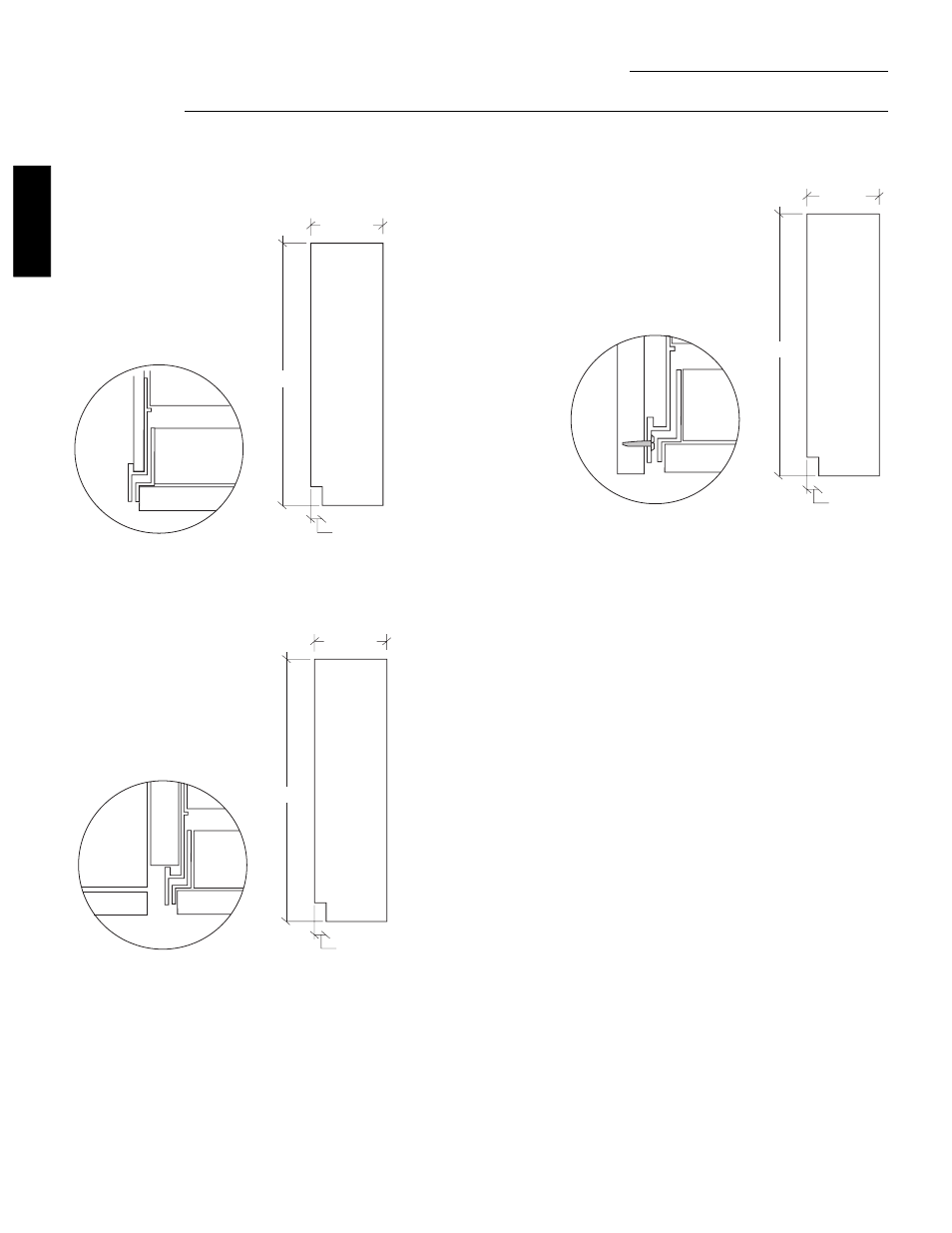

Side Panel or Filler Options

(not to scale)

Side panels must be used whenever the sides of the refrigerator

will be exposed.

1/4" Side Panels
Insert end of

side panel into trim.

Standard 4" high toekick or trim to fit.
Height may vary depending on application.

1/2" to 3/4" Side Panels

Leading Edge

Flush with Cabinet
Front. The front or

leading edge, must be

finished to match
cabinetry

Standard 4" high toekick or trim to fit.

Height may vary depending on application.

Standard 4" high toekick or trim to fit.
Height may vary depending on application.

1/2" to 3/4" Side Panels

Recessed front edge.

23 9/16"

84"

2 9/16"

Trim

23 5/16"

84"

2 5/16"

24 3/4"

84"

3 3/4"

CUSTOM PANEL

DIMENSIONS

Top View

Top View

Top View
