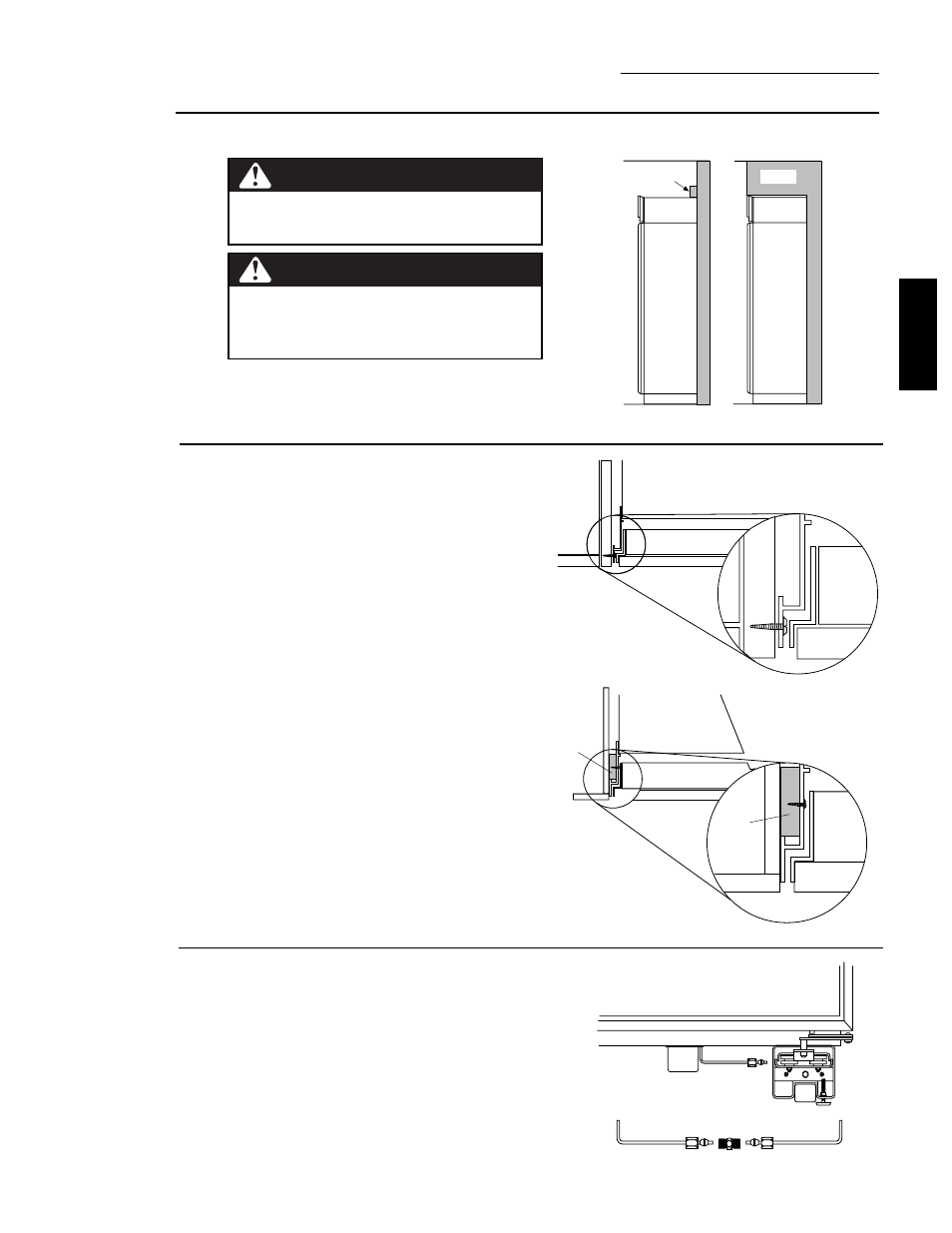

19

Installation

42" Built-In Refrigerator

Step 7
OPTION 1
Secure
refrigerator
at the top

To prevent the refrigerator from tipping over, you must:
• Install a wood block, the full width of the refrigerator.

Secure the block with wood screws penetrating at
least 3/4" into wall studs.

Block

Soffit

Side View

Side View

When using 1/2" to 3/4" side panels, the front flange of
the case trim is attached to the side panel.
• Open freezer door to access case trim.
• Drill hole in case trim slightly below top hinge. Drive

screw through the trim and into the side panel.

• Follow the same procedure on the fresh food side.

OR

If refrigerator is installed between cabinets with no side
panels or in a custom enclosure, install a spacer block
as shown.
• Open freezer door to access case trim.
• Drill hole in case trim slightly below top hinge and

drive screw through the trim and into the spacer
block.

• Follow the same procedure for fresh food side.

Step 8
Connect
Water
Supply

Check to be sure that refrigerator power cord is not
plugged into the wall outlet.

• Locate and bring copper tubing to the front of the

cabinet.

• Turn the water on to flush debris from line, run about

a quart of water through tubing into a bucket, then
shut-off water.

• Slip a 1/4-1/4 union nut (provided) over both ends of

the copper tubing at the right front leg of the
refrigerator and couple the lines.

• Turn on the water to check for leaks.

PRODUCT

INSTALLATION

OPTION 2
Secure
refrigerator
at the sides

Refrigerator Cabinet

Refrigerator

Door

Top View

Side

Panel

Spacer

Block

Spacer
Block

Refrigerator Cabinet

Refrigerator Door

Top View

WARNING

ANTI-TIP PRECAUTIONS
The refrigerator is heavy at the top and must be
secured to prevent the possibility of tipping forward.

PRECAUTIONS CONTRE LES BASCULEMENTS
Le réfrigérateur est beaucoup plus lourd en haut et
il faut le maintenir en place pour éviter la possibilité
de son basculement vers l'avant.

ATTENTION
