OPERATOR’S MANUAL
IntelliAg MVT
11001-1643-201401
SYSTEM CONFIGURATION / 63
ROW MONITOR SETUP
The Row Monitor Setup screen controls the parameters for:
• Material Name - monitor only
• High alarm delay
• Low alarm delay
• Population adjustment
• Population filter
• Row fail rate
To Edit Row Monitor Setup:
1. Press the Row Monitor button.
2. Use the rotary dial to highlight and change yellow input box values.
3. Push in the dial to accept.
NOTE: A material name will display on
the Row Monitor Setup screen
only when ALL seeding control
channels are disabled, no seed
rows are assigned to channels,
and material is set for Monitor

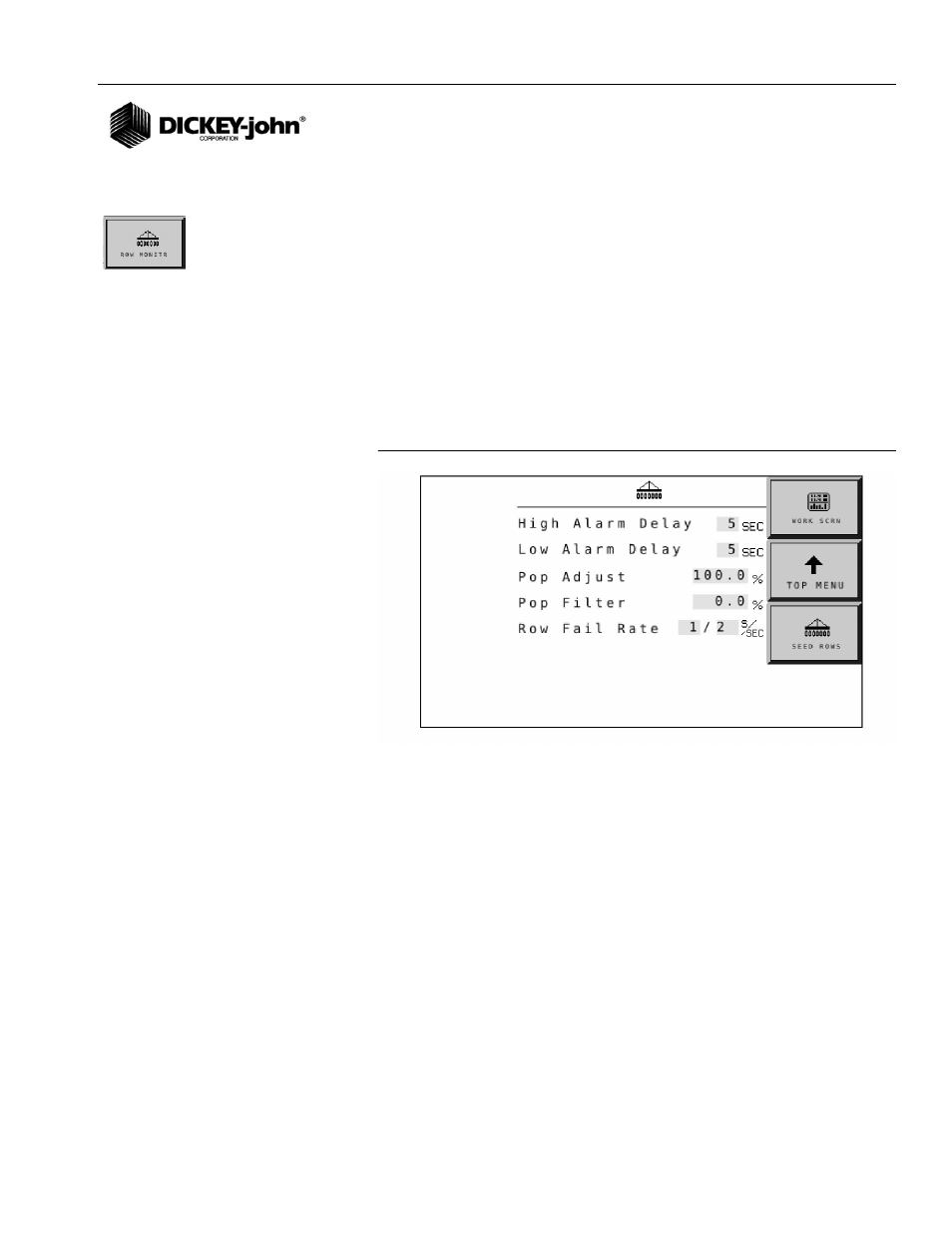

Only. Figure 55
Row Monitor Setup Screen
IMPORTANT: For ground drive/nonhydraulic applications using the
planter monitor only feature, all seeding control
channels must be disabled, no seed rows assigned to
these channels, and a Material Name selected at the Row
Monitor Setup screen. Reference the Material
Setup-Monitor Only section for additional information.
MATERIAL NAME
Material Name only displays if there are NO seeding channels enabled and
no rows assigned to these channels. The Monitor Only selection must be
selected at the Material Configuration Setup screen.
HIGH/LOW ALARM DELAY
NOTE: Population is updated every 5
seconds. Setting the Alarm
Delay for under 5 second
intervals does not provide any
delay at all. Establishes the delay between the detection of a High or Low Population
Alarm condition and the resulting alarm display. The value is entered in
seconds. If the value is set to 10, a row must be in a High or Low Population
Alarm condition continuously for 10 seconds before the alarm is issued.
