OPERATOR’S MANUAL
IntelliAg MVT
11001-1643-201401
SYSTEM COMPONENTS / 5
CAN TERMINATORS
CAN terminators are necessary for proper communication between each
component of the system.
• One terminator is located on the cab harness, approximately 30 inches
from the Virtual Terminal connector.
• One terminator plugs into the implement harness of the last module
connected to the CAN bus.

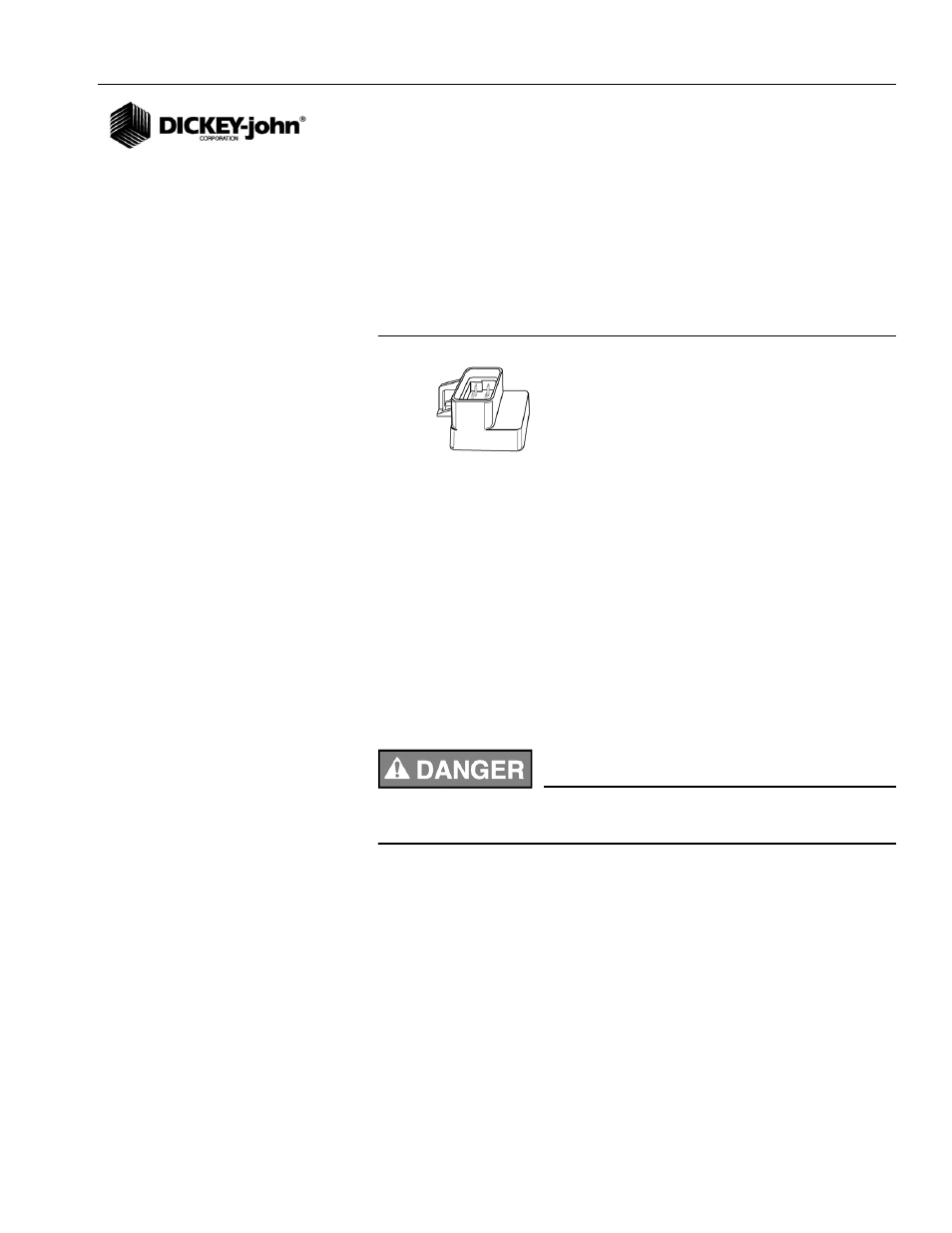

Figure 4
Can Terminator
TERMINAL MOUNTING KIT
The terminal is secured in the tractor cab by a bracket that is installed in a
location that does not obstruct the view of tractor operation.
Terminal mounting bracket kit includes:
• Terminal mounting plate
• RAM Mount
• Bolts to secure mounting plate to RAM mount
Bracket Features:
• A ball mount at top and bottom of bracket orients terminal in many
different positions.
• Wing bolt tighten and secures the VT in the desired position.
The console must not obstruct the view of the operator or interfere
with the operation of the tractor.
To Assemble the Terminal Mounting Kit:
1. Secure RAM mount to desired location in cab with 4 screws (included)
per ( Figure 5 ).
