COMPONENT INSTALLATION / 17
SENSOR INSTALLATION
For proper system operation, all sensors used with the system must be
connected properly as described in the following sections. Sensors that are
incorrectly installed will not be properly identified by the system and will
result in incorrect numbering of the sensors.
SEED SENSORS
The system is compatible with all existing DICKEY-john seed sensors. Seed
sensors may be connected to the PCM module and all WSMB planter
monitor modules. Any number of sensors up to the maximum capacity of
the module may be connected. A maximum of 84 seed sensors can be
connected to the system.
When connecting seed sensors to the modules, the following requirements
must be observed:
All seed sensors installed must be connected to the seed sensor
harness SEQUENTIALLY starting with the Row 1 input. In the event
that not all row inputs on the module are used, the unused inputs
must be the last inputs on that module.

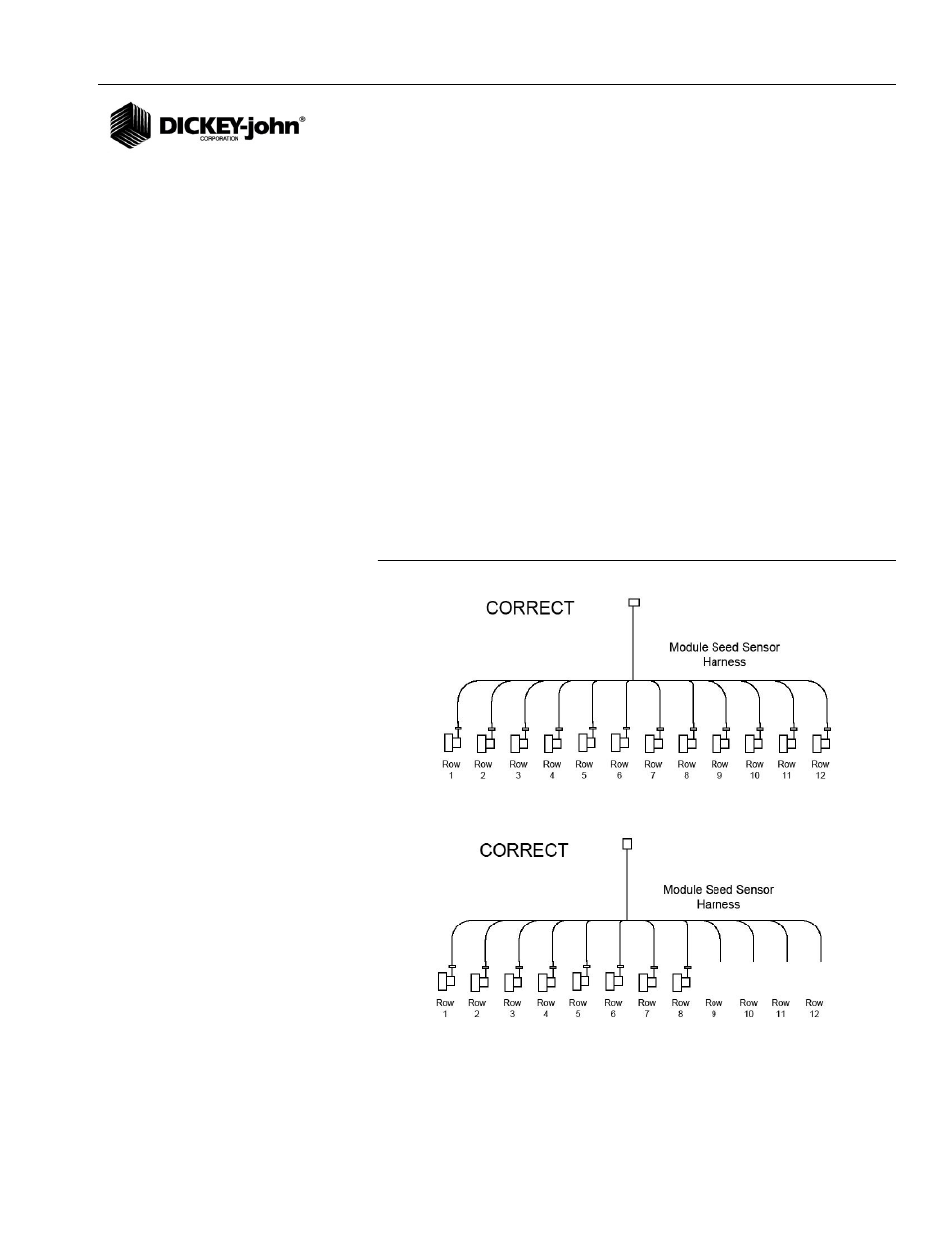

Figure 16
Correct Seed Sensor Module Connection
