Operator’s manual, Cab harnessing diagram – Great Plains DICKEY-john MVT Monitor Operator User Manual
Page 23
OPERATOR’S MANUAL
IntelliAg MVT
11001-1643-201401
14 / COMPONENT INSTALLATION
secure the connector to the module. The WSMB uses a pair of 12-pin
connectors.
5. Secure module harness as needed.
CAB HARNESSING DIAGRAM

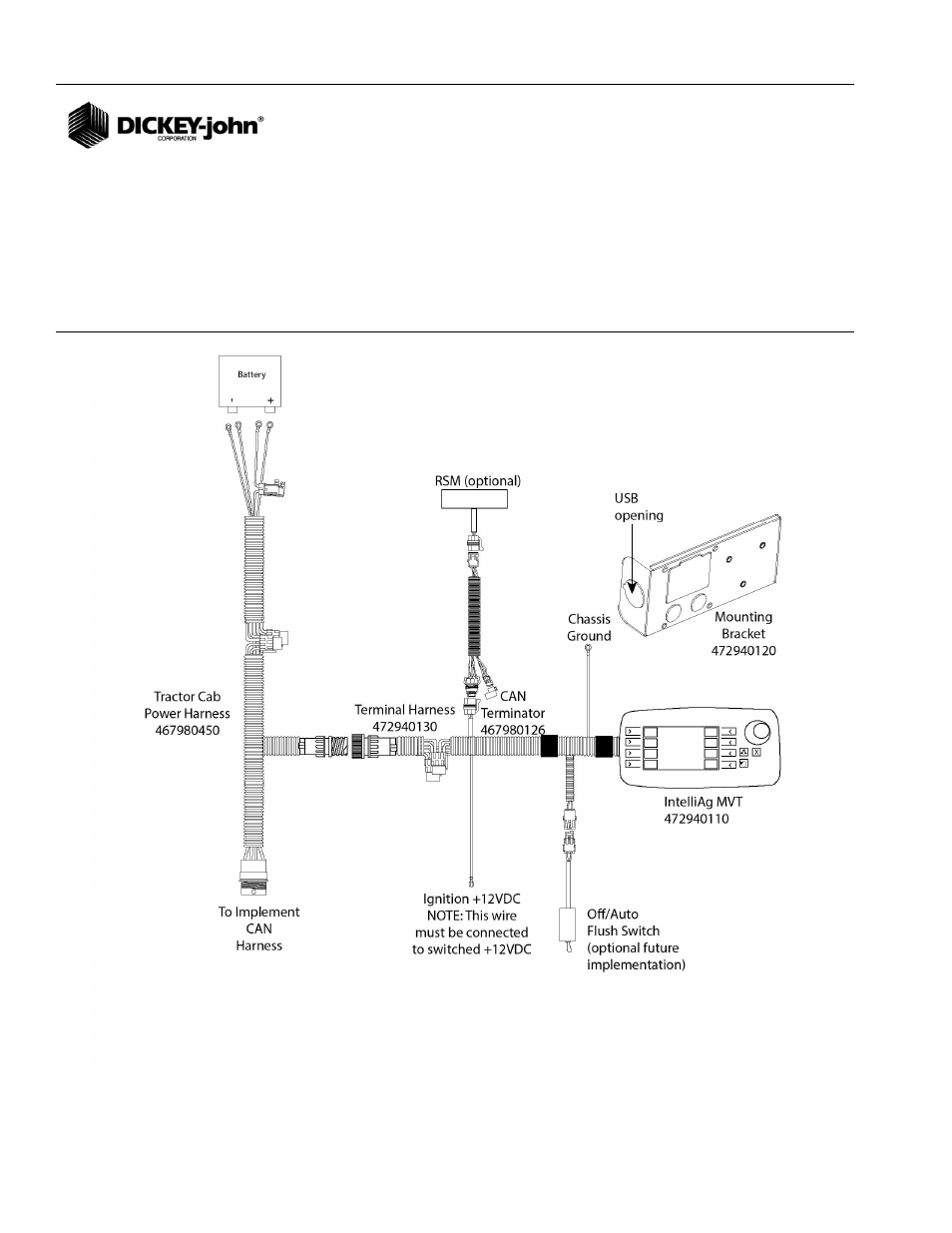

The following diagram illustrates the cab harness layout and connecting to
the virtual terminal.
Figure 13
Cab Harness Connections to Virtual Terminal
