OPERATOR’S MANUAL
IntelliAg MVT
11001-1643-201401
10 / COMPONENT INSTALLATION
WORKING SET MEMBER (WSMB) MODULE
The WSMB module can be attached to the implement:
1. Bolting to the implement
2. Using tie straps to secure to implement
IMPORTANT: For applications using multiple modules, it is
recommended that the WSMB’s are mounted on the
implement by increasing serial number order from left to
right.

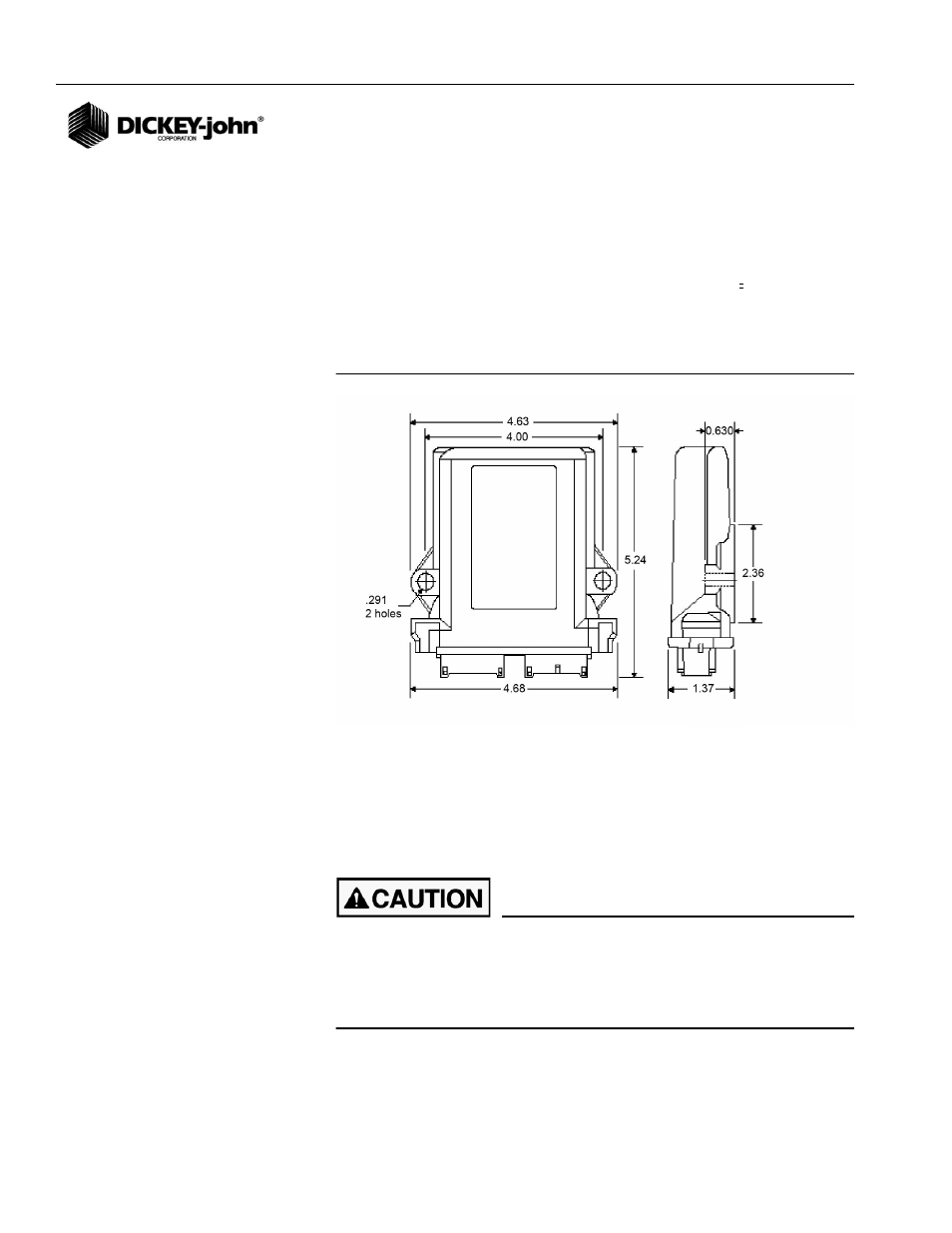

Figure 10
WSMB
WSMB INSTALL CONSIDERATIONS
1. Select an area on the implement to mount the member that allows for
easy hookup and access. Extensions may be used to reach members
installed on remote areas of the implement.
2. The module can be mounted in the same orientations as the Planter
Control Module (PCM) as illustrated in ( Figure 9 ).
Do not install the module in any orientation other than illustrated
in (
Figure 9 ). The connection wires must not be mounted upward
as moisture can collect inside the unit and damage the circuits.
Ensure that module connectors do not face upward when
implement is in a folded position as well.
3. Mount with the label side of the module facing out.
