Operator’s manual, Module & sensor installation examples – Great Plains DICKEY-john MVT Monitor Operator User Manual
Page 66
OPERATOR’S MANUAL
IntelliAg MVT
11001-1643-201401
SYSTEM CONFIGURATION / 57
To Perform an Auto Configuration:
1. Press the Module Configuration button to access the Module
Configuration screen.
2. Press the Auto Config button. An hour glass appears in the upper
right corner while the system is configuring.The following illustrations
provide examples of possible installations:
MODULE & SENSOR INSTALLATION EXAMPLES
16 ROW INSTALLATION
A 16 row installation connected to the Planter Control Module and assigned
to Module Address 1. No Working Set Member is utilized.

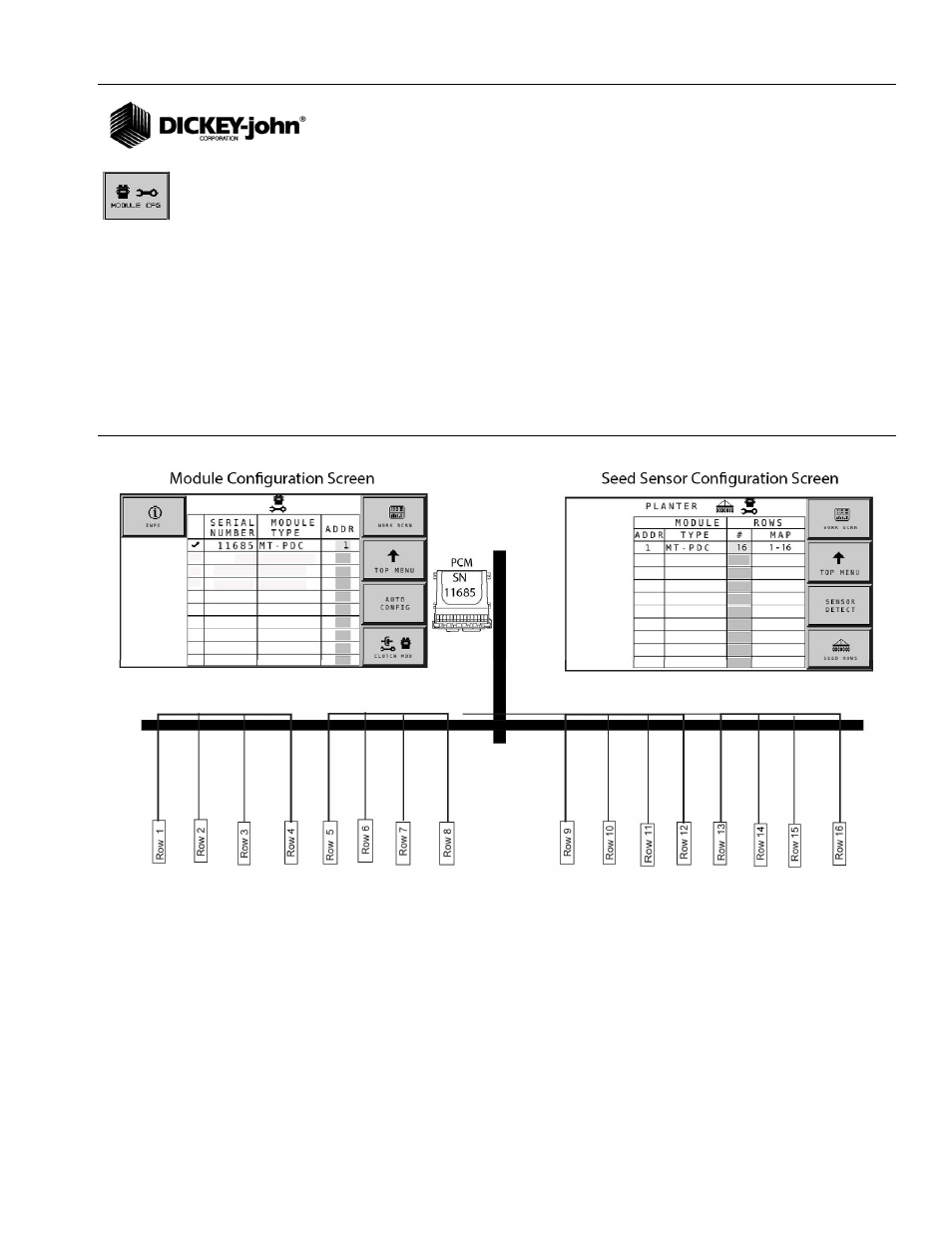

Figure 50
16 Row Installation Example (PCM only)
