HP 220 User Manual
Page 89

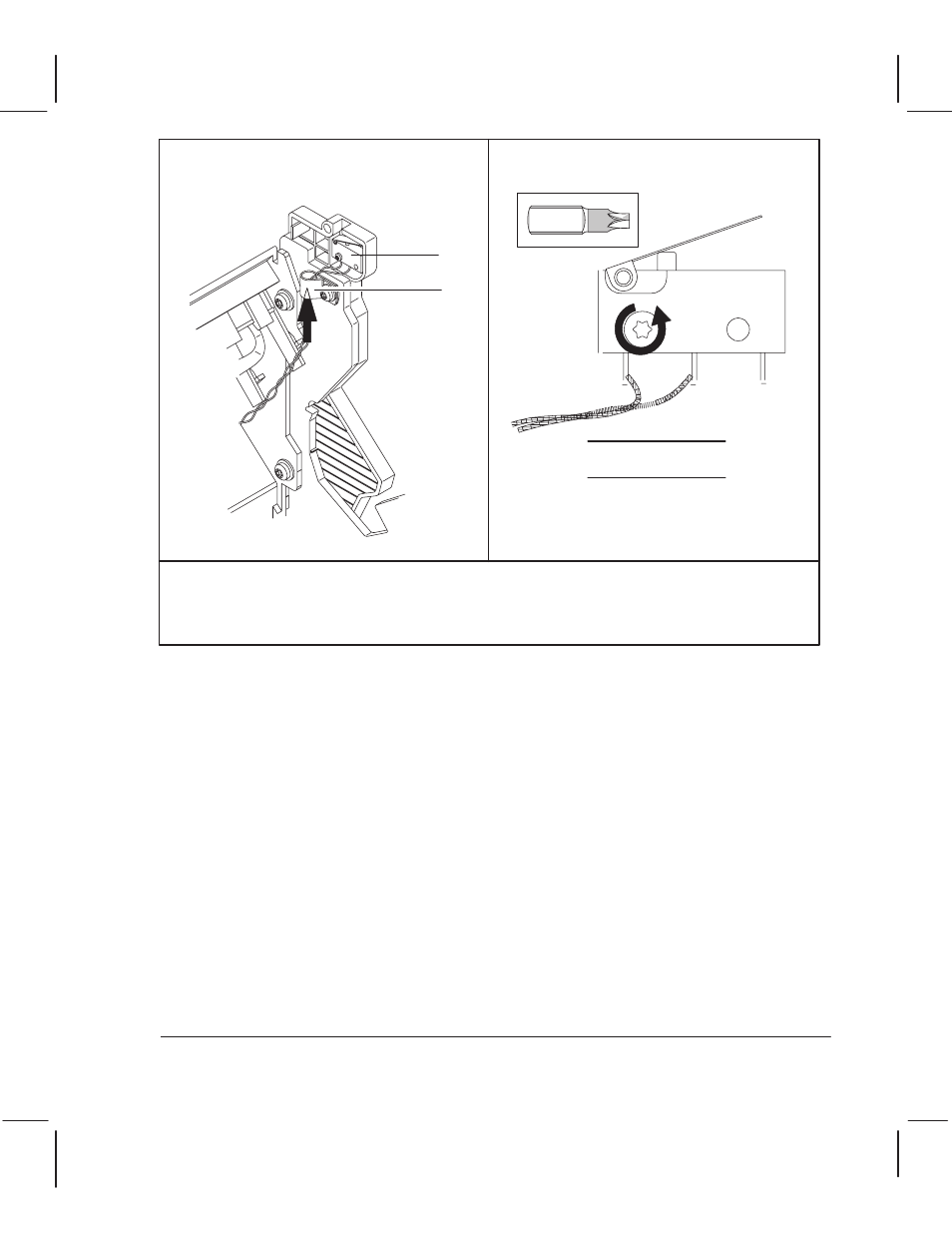

7 Slide the cable and connector up through
the fastener near the right front trim.
Fastener
8 Remove the screw that attaches the
window sensor to the right front trim.
9 Lift the sensor, with cable, clear of the plotter.
Sensor
C A U T I O N
Reassembling: Do not crossĆthread
or overĆtighten the screw.
Torque = 3 l b in. (
≅
0.35 Nm)
Torx-8
6Ć25
Removal and Replacement
C3187Ć90000
