The tensioner plate is under spring tension. Ensure that the plate does
not spring back suddenly. Hold the right end (viewed from the rear) of
the tensioner plate to keep the tensioner spring compressed.
1 Remove the window D page 6Ć15.
2 Remove the center cover D page 6Ć16.
3 Remove the left endcover D page 6Ć18.

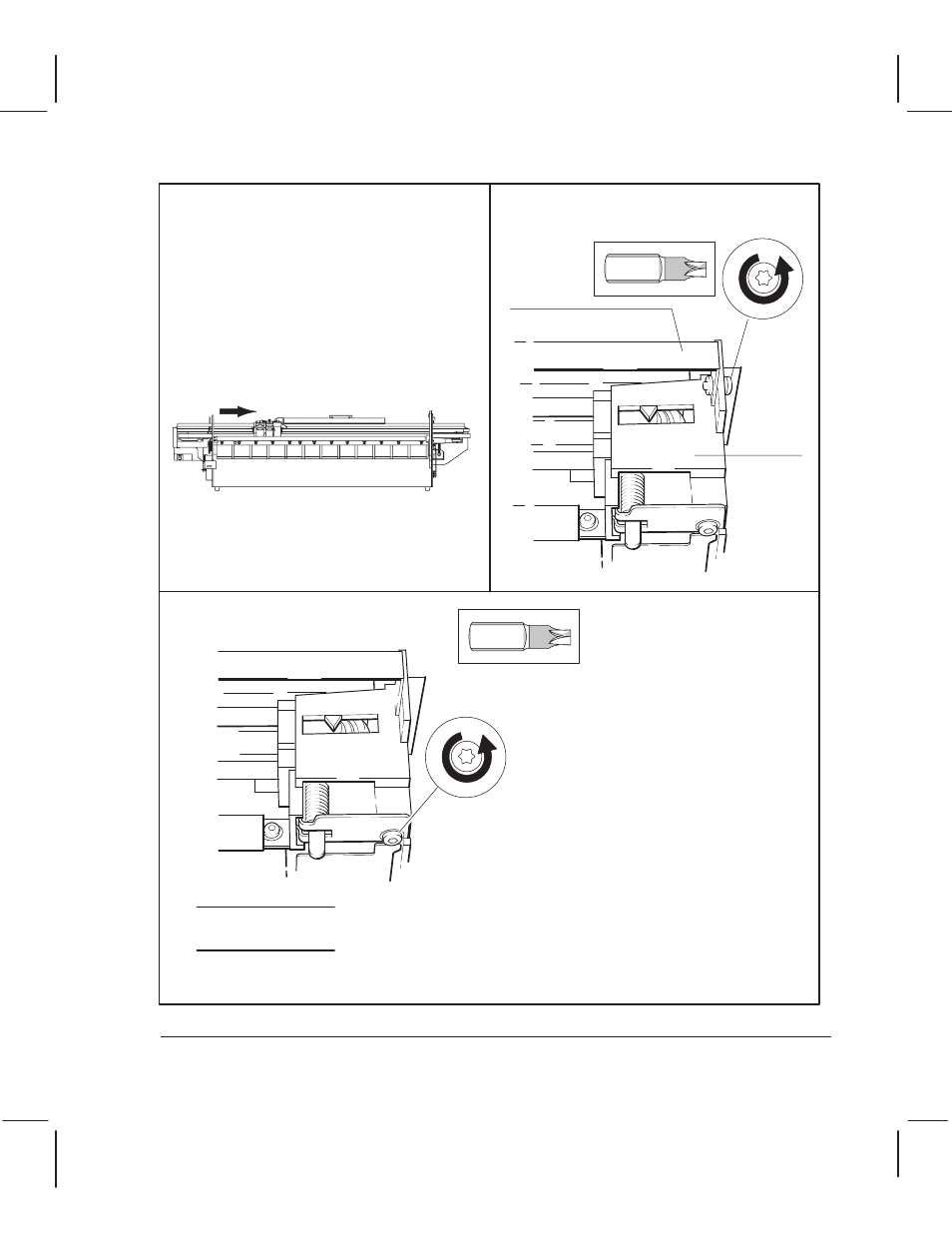

4 Slide the cartridge carriage towards the
center of the plotter in order to access the
tensioner.
5 Remove the screw that attaches the
trailingĆcable guide to the tensioner
housing.
6 Remove the tensionerĆplate screw.
Tensioner
housing
Trailing-cable guide
Torx-15
Torx-15
C A U T I O N
6Ć45 Removal and Replacement C3187Ć90000
Removing the YĆTensioner and Housing
