C. Vent Components Diagrams (continued)

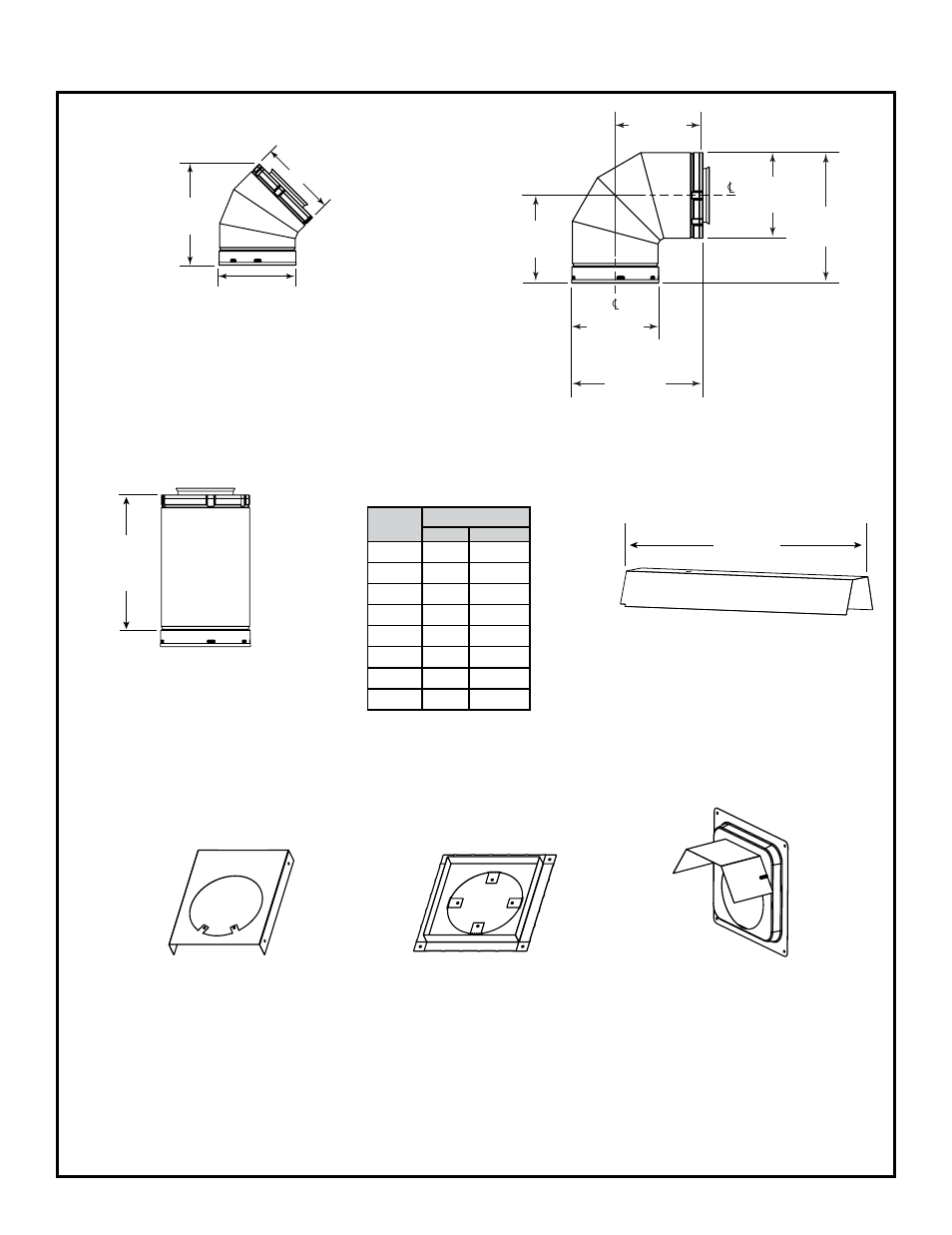

Figure 17.5 SLP Series Vent Components
26 in.
(660 mm)
DVP-HSM-B
Extended Heat Shield
Pipe
Effective Length
Inches Millimeters
SLP4 4 102
SLP6 6 152
SLP12 12 305
SLP24 24 610
SLP36 36 914
SLP48 48 1219
SLP6A 2 to 6 51 - 152
SLP12A 2 to 12 51 - 305
