Heat & Glo • XLR-PLUS-N-AU, XLR-PLUS-PB-AU • 2264-900 Rev. o • 1/13 48
5. Close the housing door. See Figure 12.8.
4. Place remote control inside housing. See Figure 12.7.

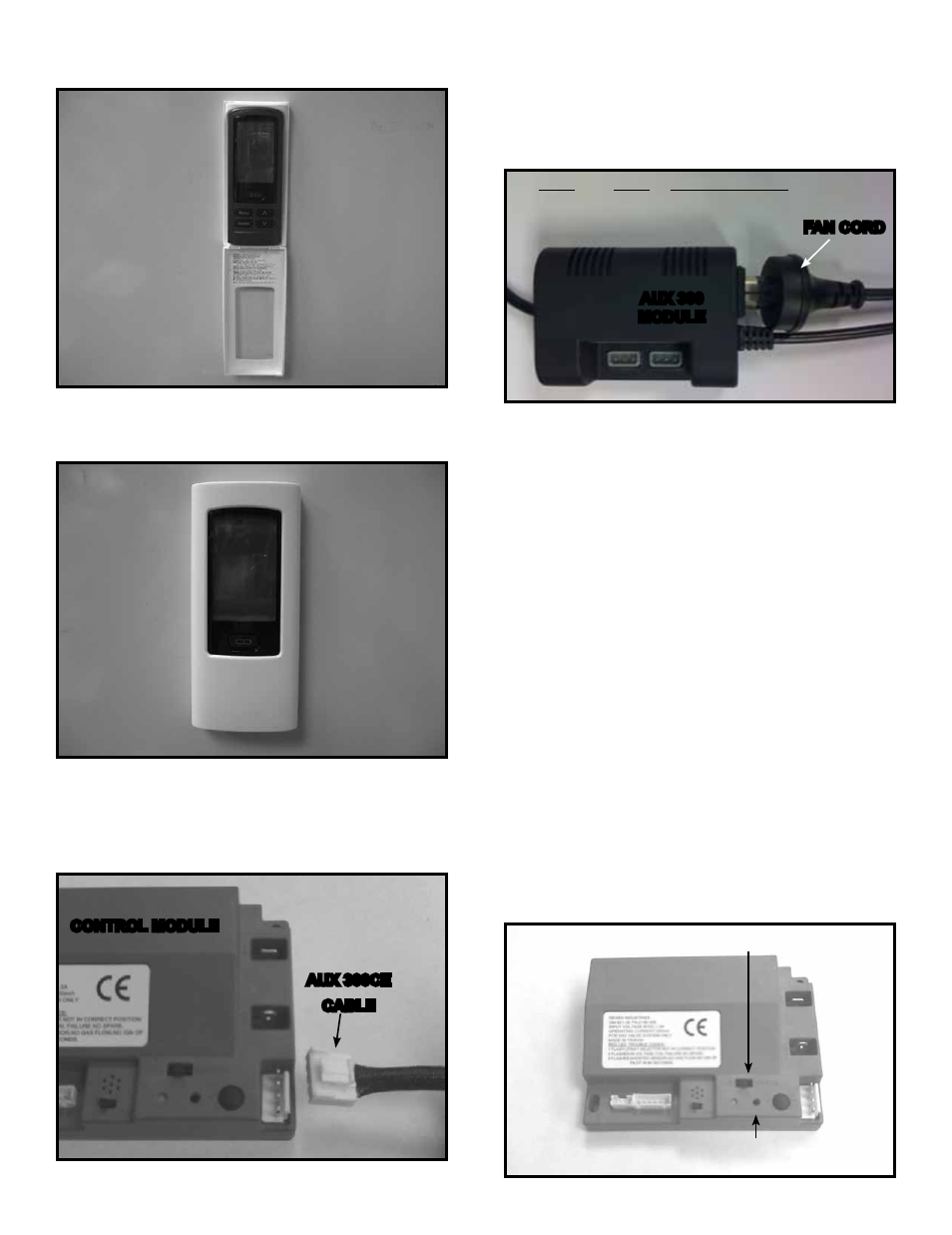

Figure 12.7 Remote in Housing
Figure 12.8 Mounting Remote Control Housing
AUX300CE Module Installation
• Insert the 4 hole harness from the AUX300CE module into
the 4 pin plug on the control module. See Figure 12.9.
Fan Installation
• Insert the 3 prong plug from the fan into the receptacle
located in the AUX300CE module. See Figure 12.10.
• Insert 3 prong plug from AUX300CE module into REM/
AUX receptacle of fireplace junction cord.
Figure 12.10 Plug Fan into AUX300CE Module
Figure 12.9 AUX 300 module installation
CONTROL MODULE
AUX 300CE
CABLE
AUX 300
MODULE
AUX 1:
3 steps, HIGH,
MED and LOW
AUX 2:
ON/OFF
3 PRONG PLUG (FAN):
3 steps, timer based,
3 min. ON, 12 min. OFF
FAN CORD
REMOTE POSITION
LEARN BUTTON
Programming the RC300AU to the Control Module
CAUTION! Risk of burns! DO NOT program the remote control
to the control module when fireplace is hot.
• Verify the ON/OFF/REMOTE switch is in the REMOTE position.
Green LED light will blink three times and the control module
will beep once 5 seconds later when ready. See Figure 12.4.
• Using a small item (such as a paper clip) press and release
the LEARN button located near the ON/OFF/REMOTE switch.
See Figure 12.11.
• Control module will beep once and LED will blink green for 10
seconds.
• While the LED is blinking, press the POWER button on the
remote control. A double beep will come out of the control
module to indicate that it has been programmed successfully.
NOTICE: Up to three remote controls can be programmed into
the control module. Simply press a button on the other remote
controls during the 10 second programming process to add
another remote into the system. It is recommended to program
only one RC300AU remote control.
To clear memory in the control module, use a small item (such
as a paper clip) to press and release the LEARN button. Control
module will beep once and LED will blink green for 10 seconds
DO NOT press any buttons on the remote during the ten seconds
that the green LED blinks. The memory will be cleared. Note that
the RC300AU will not be programmed if it’s in STANDBY mode.
Press the ON/OFF button twice to switch to IDLE mode.
Figure 12.11 Programming RC300AU
