Heat & Glo • XLR-PLUS-N-AU, XLR-PLUS-PB-AU • 2264-900 Rev. o • 1/13

34

ELBOW HEAT SHIELD SHOWN

IN SHIPPING POSITION

CAUTION! Risk of Cuts, Abrasions or Flying Debris.

Wear protective gloves and safety glasses during instal-

lation. Sheet metal edges are sharp.

A. Top Vent

9

Appliance Preparation

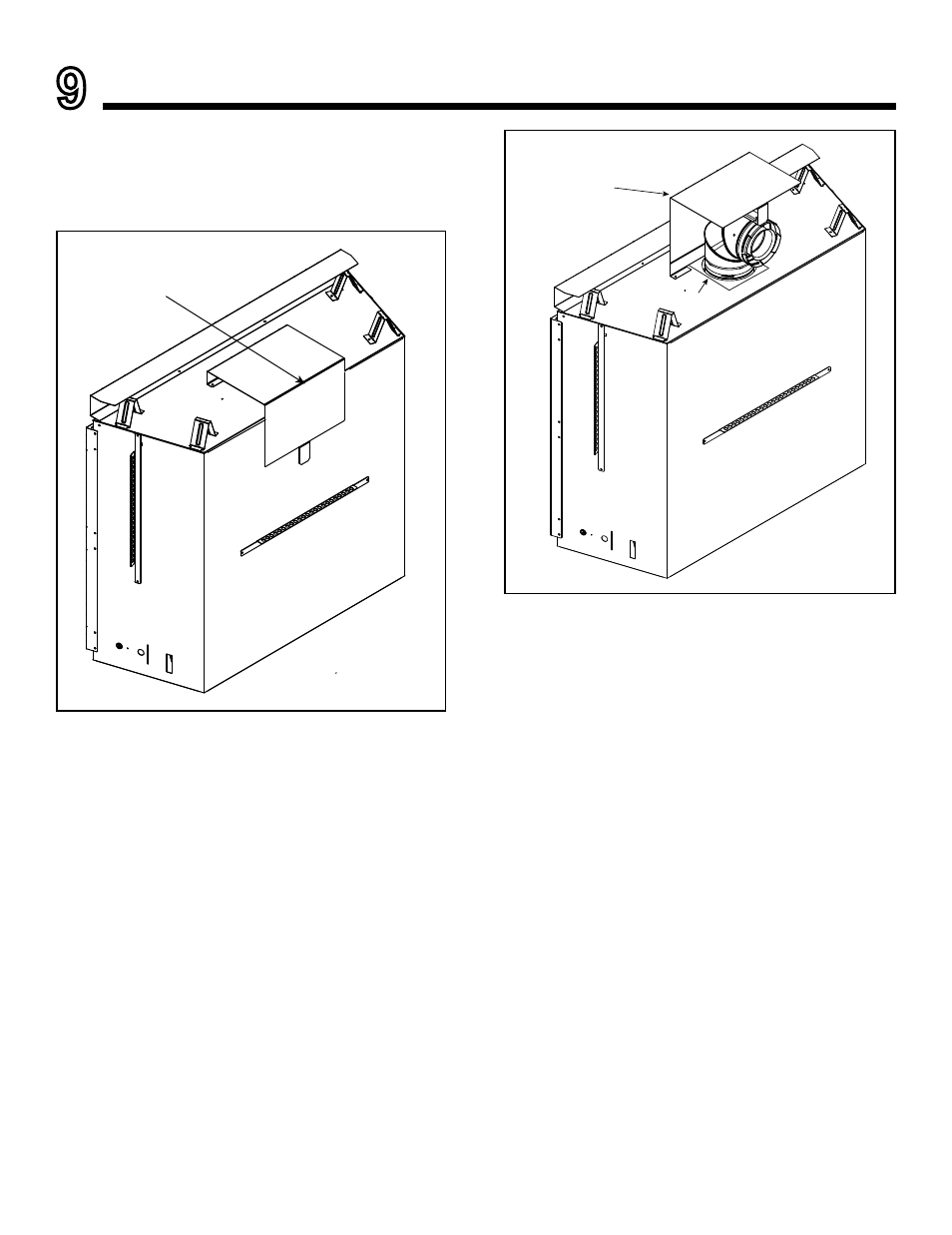

Figure 9.1 Elbow Shield Shown as Shipped

ELBOW HEAT SHIELD

SHOWN AS INSTALLED

PIPE GASKET

Figure 9.2 Elbow Shield Shown Installed

If venting with a 90 degree elbow directly off of the top of

the appliance, the elbow heat shield must be repositioned

as shown in Figure 9.2.
If venting vertically or using a straight section of vertical

pipe, remove the elbow heat shield and discard by remov-

ing the two screws that secure the elbow heat shield to the

top of the fireplace.
For all venting applications, ensure that the pipe gasket is

in place before attaching any pipe section. This gasket is

shipped in place around the starting collar. See Figure 9.2.
