Heat & Glo • XLR-PLUS-N-AU, XLR-PLUS-PB-AU • 2264-900 Rev. o • 1/13 58
Non-Combustible Finish Material 0 - 1 in. (25 mm) Thick
Bottom Joint
3 in.
(76 mm)
3/4 in.
(19 mm)
1-1/2 in. (38 mm) (TN-XLR-**)
3/4 in. (19 mm) (TN-SLR-**)

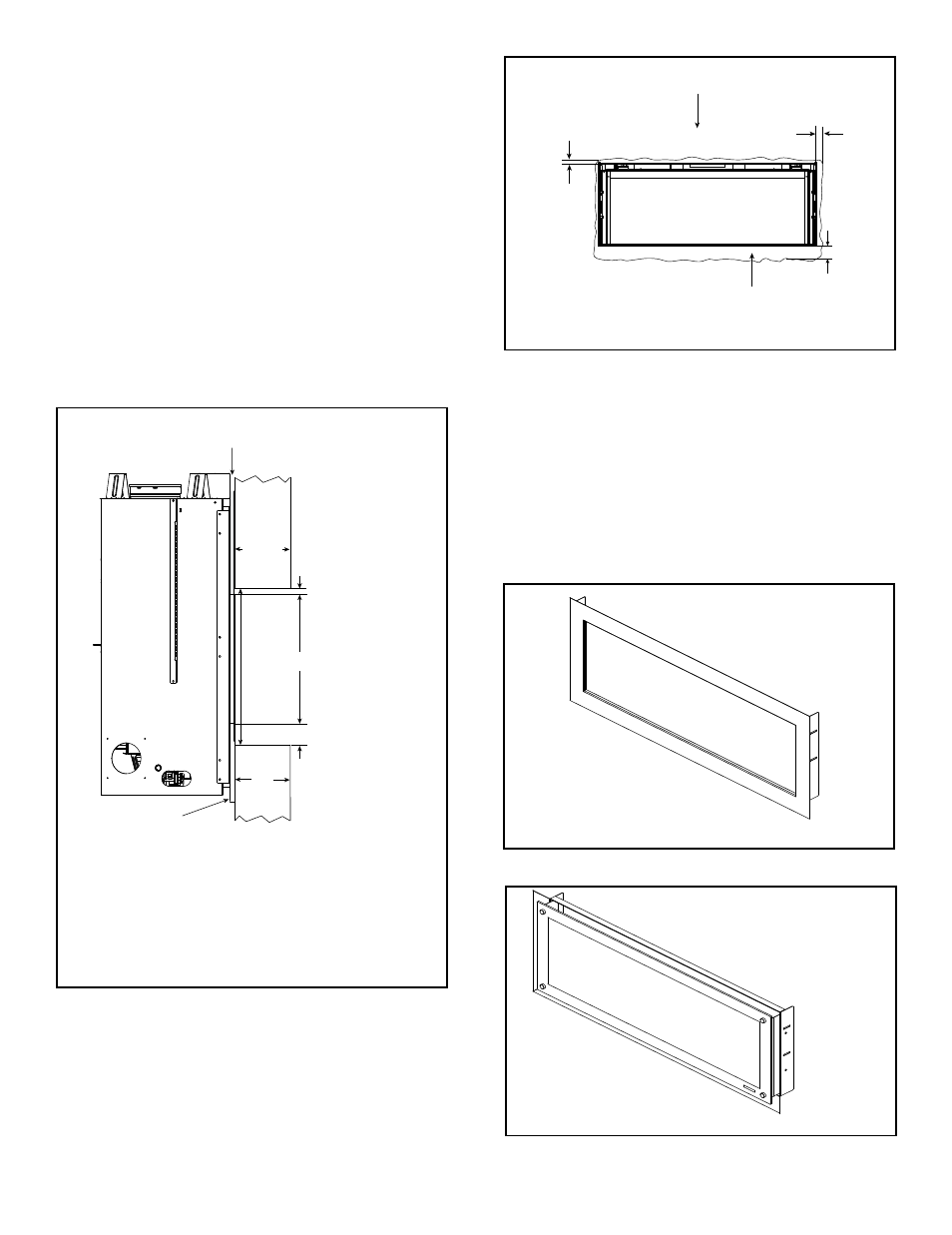

Figure 13.11 Noncombustible Surface Finishing Material
0 - 1 in. (25 mm) Thick-Inside Fit Method
(Tonic Decorative Front Only)
FACTORY-INSTALLED
NON-COMBUSTIBLE
BOARD
\\\\\\
\\\\\\
\\\\\\
\\\\\\
\\\\\\
\\\\\\
\\\\\\
\\\\\\
\\\\\\
\\\\\\
\\\\\\
\\\\\\
\\\\\\
DRYWALL OR
EQUIVALENT
3/8 in. (10 mm)
20-1/2 in. (520 mm)
APPLIANCE OPENING (HEIGHT)
1-1/2 in. (38 mm) (TN-XLR-**)
3/4 in. (19 mm) (TN-SLR-**)
3 in. (76 mm)
1 in.
(0-25 mm)
(MAX)
1 in.
(0-25 mm)
Figure 13.10 Inside Fit Method (Tonic Decorative Front Only)
Non-Combustible Finish Materials
0 mm to 1 in. (25 mm) Thick Inside Fit Method
The Tonic decorative front is approved for inside fit ap-
plications. Non-combustible finishing materials up to 1 in.
(25 mm) thick can be installed around the front (left, right,
top, and bottom).
For the Tonic decorative front inside fit applications, the
decorative front must be installed tight to the finishing
flanges and must not overlap any finish material.
Ensure that no non-combustible finish materials are in-
stalled within 3/4 in. (19 mm) (TN-SLR-**) or 1-1/2 in. (38
mm) (TN-XLR-**) of the top of the fireplace opening, or
within 3 in. (76 mm) of the bottom of the fireplace open-
ing. The top spacing is required to provide clearance for
removing and installing the Tonic decorative front. See
Figure 13.11.
D. Decorative Fronts
WARNING! Risk of Fire! A decorative front is required
for this model. DO NOT operate this appliance without a
decorative front in place.
Only doors certified for use with this appliance model may
be used. Contact your dealer for a list of doors that may
be used.
TONIC DECORATIVE FRONT
(TN-SLR-**, TN-XLR-**)
Figure 13.12 Tonic Decorative Front
Inside and Overlap Method
See Section 13.C.
MARTINI DECORATIVE FRONT
(MT-SLR-**)
Figure 13.13 Martini Decorative Front
Inside-Fit Method Only
See Section 13.C.




