Heat & Glo • XLR-PLUS-N-AU, XLR-PLUS-PB-AU • 2264-900 Rev. o • 1/13 68
17
Reference Materials

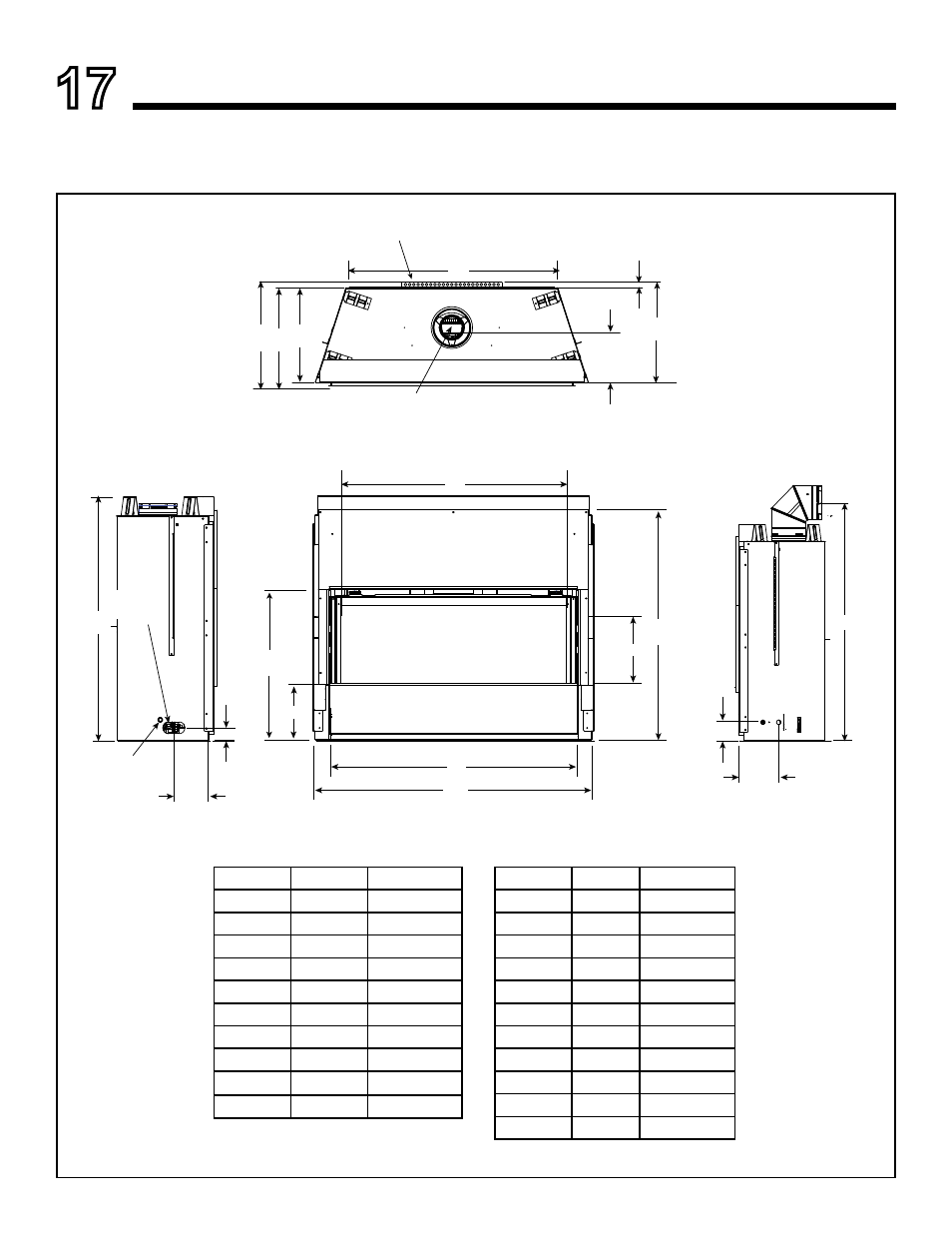

A. Appliance Dimension Diagram
Dimensions are actual appliance dimensions. Use for reference only. For framing dimensions and clearances refer to Section 5.
A
B G
Q
C
L
D
E
H O
F
P
N Ø
I
J
K
M S R
GAS LINE
ACCESS
LEFT VIEW FRONT VIEW RIGHT VIEW
NON-COMBUSTIBLE ZONE
(PROVIDED WITH UNIT)
1 in. (25 mm) STANDOFF
T
U
ELECTRICAL
ACCESS
Figure 17.1 Appliance Dimensions
Location Inches Millimeters
K 1 25
L 37-3/4 959
M 16-5/8 397
N 6-5/8 168
O 41-3/4 1060
P 2-3/16 55
Q 6 152
R 17-1/8 435
S 18-1/8 461
T 25-7/8 657
U 9-3/4 248
Location Inches Millimeters
A 48 1218
B 43 1092
C 39 993
D 13-3/4 337
E 39-9/16 1006
F 3-1/2 90
G 6-7/8 174
H 47 1195
I 9-5/16 237
J 16-3/4 425
