65 Heat & Glo • XLR-PLUS-N-AU, XLR-PLUS-PB-AU • 2264-900 Rev. o • 1/13
16

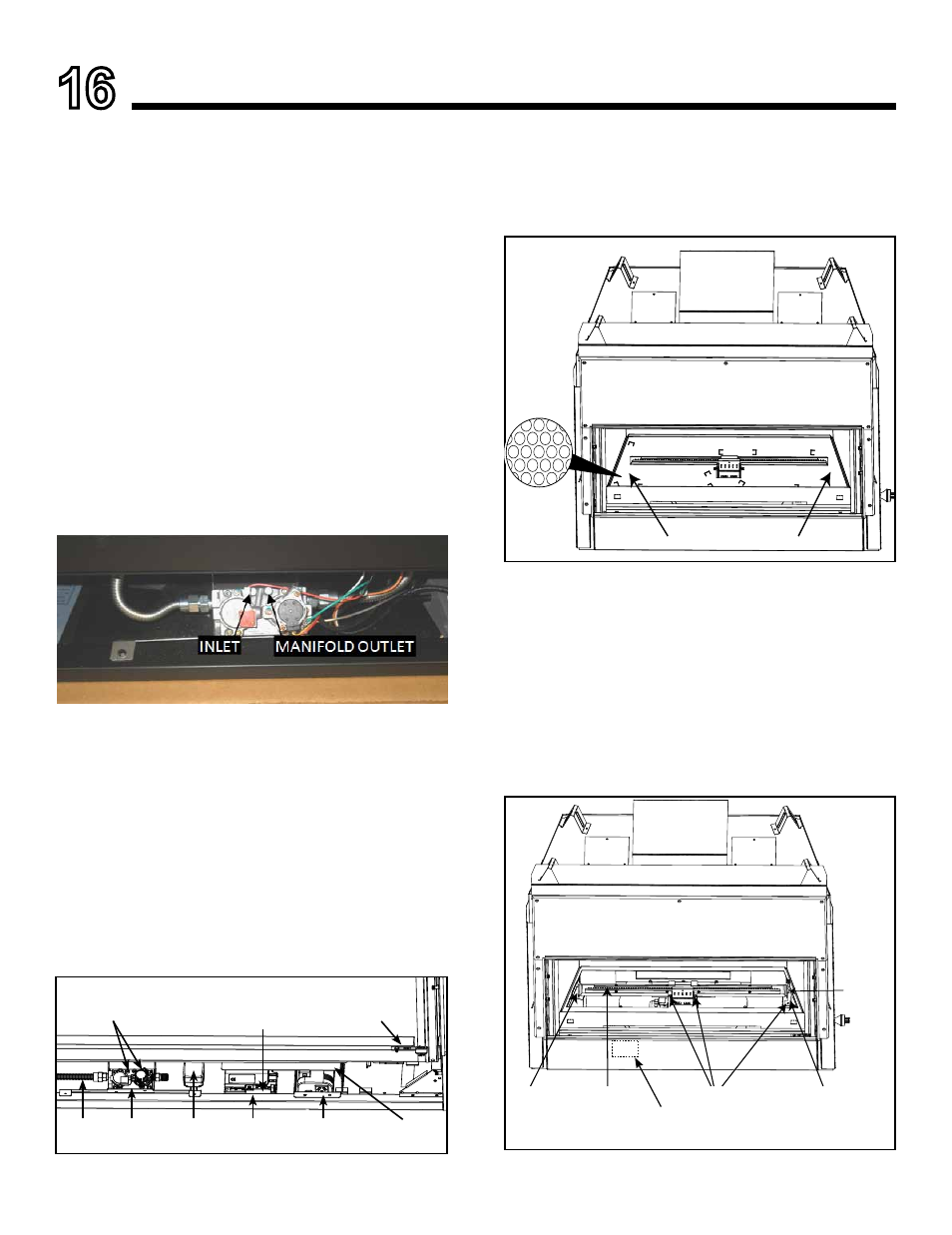

Component Access
WARNING! Risk of Fire, Electric Shock and Burns!
Turn off power to module and valve by unplugging the 6V
transformer from the junction cord, before removing fixed
glass assembly.
A. Decorative Front and Fixed Glass Assem-
bly Removal
• The decorative front can be removed by unscrewing (4)
screws that secure the decorative front to the fireplace.
Refer to the installation instructions that were included
with the decorative front option for more detailed
instruction.
• Refer to Section 14.E for fixed glass removal and
installation instructions.
Figure 16.2 Valve Components
D. Media Tray Removal
1. Remove decorative front and fixed glass assembly.
2. Remove media tray by removing two screw located on
the front edge of the media tray. See Figure 16.3.
Figure 16.4 Remove Burner Assembly
E. Burner and Base Pan Removal
Once the media tray is removed, the burner assembly
and base pan may be removed.
1. Remove burner assembly by removing two screws that
secure the burner to the pilot assembly bracket and
remove the one screw that secures the burner clip that
secures the burner to the base pan. See Figure 16.4.
2. Once the burner is removed, the base pan can be
removed by lifting “up” and “out”.
Figure 16.3 Remove Media Tray
B. Valve Pressure Taps
The pressure taps are available through the front of the
appliance. The decorative mesh front and fireplace gas
assembly must be removed to gain access to the pres-
sure taps.
Figure 16.1 Pressure Taps
C. Control Module Access
The control module on this appliance can be accessed by
following the following steps:
1. Remove decorative front and fixed glass assembly.
2. Locate the control module. See Figure 16.2.
3. Unplug the black wire from the transformer, unplug the
wire harness to the valve, and unplug the orange and
white wires from the pilot assembly.
4. Verify the replacement module is installed to the wire
diagram listed in Section 12.
PRESSURE
TAPS
ON/OFF REMOTE
TOGGLE SWITCH
MODULE RESET
SWITCH
VARIABLE
VALVE
6V DC
REGULATOR
8KI-CE
MODULE
AUX300CE HEAT
SHIELD
BURNER
SUPPORT
LEG
BURNER REMOVE SCREWS BURNER
CLIP
BURNER
SUPPORT
LEG
SCREW LOCATIONS
GAS
FLEX
BATTERY PACK
NOTE: BATTERY PACK IS LOCATED ON
ACCESS PANEL TO RIGHT OF VALVE.
