13

Heat & Glo • XLR-PLUS-N-AU, XLR-PLUS-PB-AU • 2264-900 Rev. o • 1/13

J. Control Module Operation

1. The control module has an ON/OFF/REMOTE selector

switch that must be set.

OFF Position: Appliance will ignore all power inputs and

will not respond to any commands from a wall switch or

optional remote. The unit should be in the OFF position

during installation, service, fuel conversion, and in the

event that the control goes into LOCK-OUT mode as a

result of an error code.

ON Position: Appliance will ignite and run continuously

in the HI flame setting, with no adjustment in flame

output. This mode of operation is primarily used for initial

installation and inspection.

REMOTE Position: Appliance will initiate commands from

a wired wall switch and/or one of the optional wireless

remote options.

2. A wall switch can be wired into the control module brown

and red wires. See Figure 12.1.

3. The control module has safety feature that automatically

shuts down the fireplace after 9 hours of continuous

operation without receiving a command from the wall

switch or optional remote.

4. If you intend to use both a wired wall switch and an optional

remote control to operate your fireplace, the wall switch

will override any commands given by the remote.

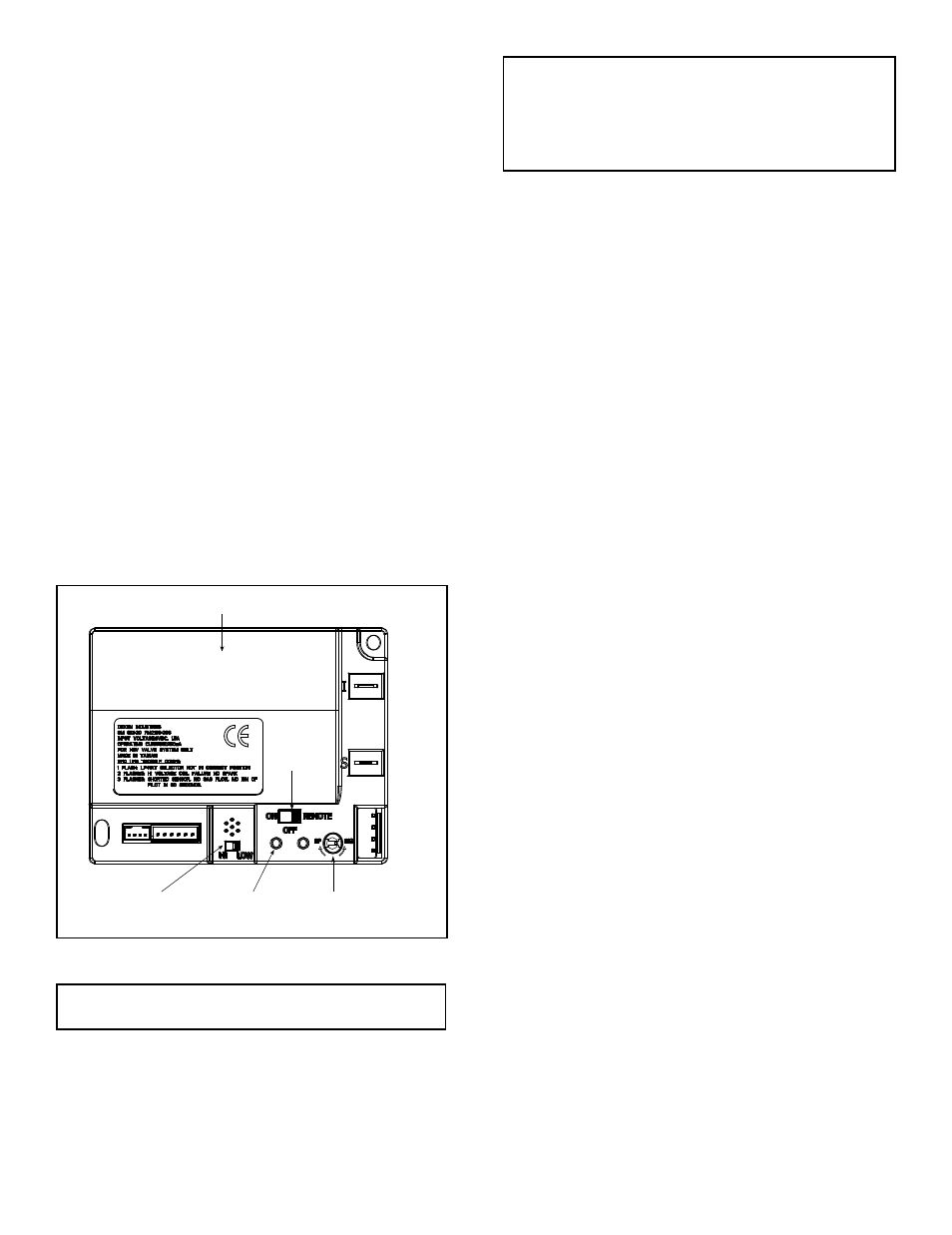

Figure 2.3 Control Module

NG/LP GAS-TYPE

SELECTOR SWITCH

SELECTOR

SWITCH

FLAME HI/LOW

SWITCH

STATUS

INDICATOR LED

MODULE

Note: The HI/LO and LP/NG switches on the control module

are non-functional on the XLR fireplace.

Nine Hour Safety Shutdown Feature
This appliance has a safety feature that automatically

shuts down the fireplace after 9 hours of continuous

operation without receiving a command from the wall

switch or optional remote.
