25

Heat & Glo • XLR-PLUS-N-AU, XLR-PLUS-PB-AU • 2264-900 Rev. o • 1/13

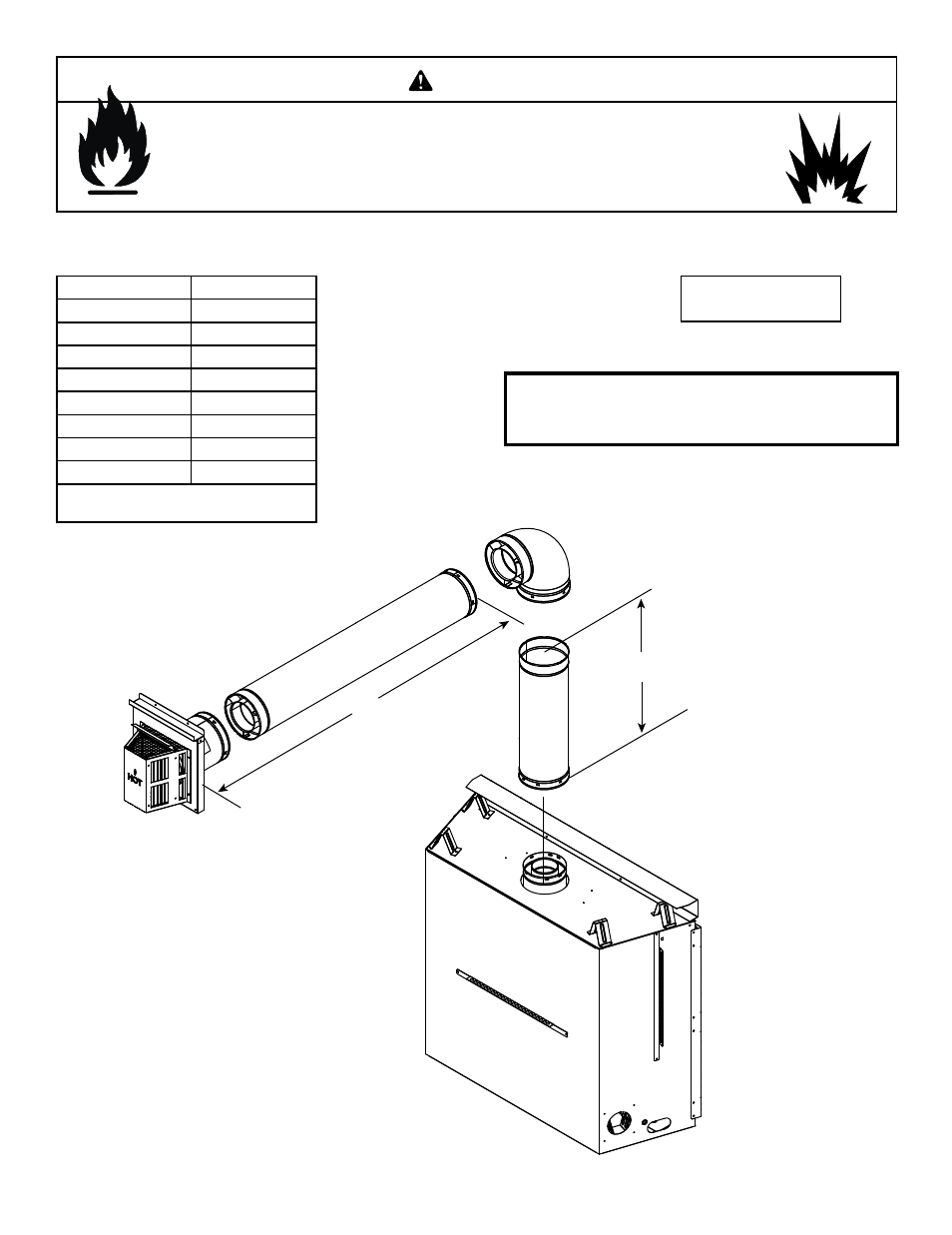

Figure 7.3

Top Vent - Horizontal Termination

Venting with 1 elbow

H

1

V

1

V Minimum

H

1

Maximum

90 Elbow

457 mm

305 mm (1 ft.)

914 mm (3 ft.)

457 mm (1.5 ft.)

1067 mm (3.5 ft.)

610 mm (2 ft.)

1.52 m (5 ft.)

762 mm (2.5 ft.)

1.85 m (6 ft.)

914 mm (3 ft.)

2.13 m (7 ft.)

1066 mm (3.5 ft.)

3.05 m (10 ft.)

1.2 m (4 ft.)

4.6 m (15 ft.)

H Max. =4.6 m (15 ft.)

V + H Max. = 12.2 m

Fire Risk. Explosion Risk.
Do NOT pack insulation or other combustibles between ceiling firestops.
• ALWAYS maintain specified clearances around venting and firestop systems.
• Install wall shield and ceiling firestops as specified.
Failure to keep insulation or other material away from vent pipe may cause fire.

WARNING

Note: Use SLP Series

components only.

Note: All appliances that will burn butane must have

a 10 in. (254 mm) vertical section of pipe

before any other venting.
