61

Heat & Glo • XLR-PLUS-N-AU, XLR-PLUS-PB-AU • 2264-900 Rev. o • 1/13

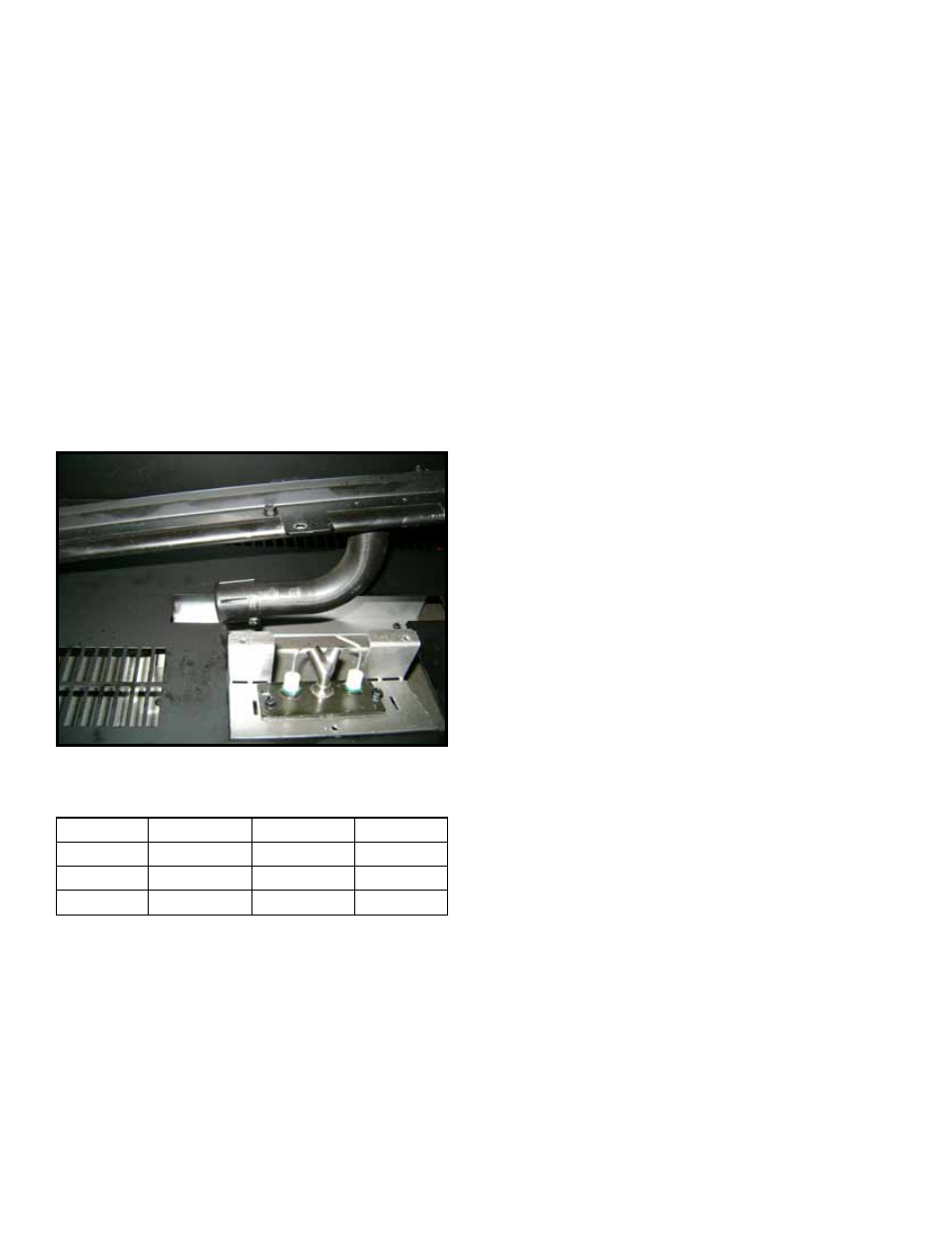

Figure 14.3 Air Shutter

G. Air Shutter Setting

Air shutter settings may be adjusted by a qualified install-

er at the time of installation. The air shutter is set at the

factory for minimum vertical vent run. Adjust air shutter for

longer vertical runs. See Figure 14.3.
• Loosen the 1/4 in. (6 mm) screw.
• Twist shutter to adjust
• Shutter may be open for longer horizontal vent runs.
• Do not close the air shutter more than 16 mm for NG or

80 mm for LP. Note: the air shutter should be fully open

when using butane.

• Tighten the screw.
NOTICE: If the flames appear to be orange, open the air

shutter to prevent residue buildup on the glass.

H. Media Options

Unit ships without a media option. Available approved

media options are:
• MEDIA-AMBER
• MEDIA-BLACK
• MEDIA-CLEAR
• MEDIA-COBALT
• MEDIA-BK2-GEMS
• MEDIA-WH2-GEMS
• MEDIA-GEMS
• XLR-LOGS
• MEDIA-STONES-2

I. Verify Performance of Appliance

1. Verify pilot sparks, pilot lights, pilot stops sparking, and

the main burner turns “ON” by turning wall control “ON”.

2. Turn fireplace “OFF”. Verify that the both the pilot and

burner turn “OFF”.

3. Repeat Step 1 above.
4. With the burner “ON” remove the green wire connected

to the gas valve after the second audible “beep” from

the control module is heard. The main burner should

shut off. Turn appliance “OFF”.

5. Reattach the green wire to the valve and turn “ON” the

fireplace. The main burner should light after the second

audible “beep” from the control module is heard.

6. With the burner “ON” remove orange wire both the main

burner and pilot should go out.

7. Turn fireplace “OFF” and reattach orange wire to the

valve.

8. Repeat steps 1 & 2 to ensure proper functionality of

appliance.

Shutter Settings

Logs

Glass Media Fiber Stones

NG

13 mm

5 mm

6 mm

Propane

Full Open

10 mm

13 mm

Butane

Full Open

Full Open

Full Open
