B. Securing and Leveling the Appliance

WARNING! Risk of Fire! Prevent contact with:

• Sagging or loose insulation

• Insulation backing or plastic

• Framing and other combustible materials
Block openings into the chase to prevent entry of blown-

in insulation. Make sure insulation and other materials

are secured.
DO NOT notch the framing around the appliance

standoffs. Failure to maintain air space clearance may

cause overheating and fire.

For details on setting the appliance in the framing, refer to

section 13.A. The diagram shows how to properly position,

level, and secure the appliance (see Figure 9.3). Nailing

tabs are provided to secure the appliance to the framing

members.
• Bend out nailing tabs on each side.
• Place the appliance into position.
• Keep nailing tabs flush with the framing.
• Level the appliance from side to side and front to back.
• Shim the appliance as necessary. It is acceptable to use

wood shims underneath the appliance.

• Secure the appliance to the framing by using nails or

screws through the nailing tabs.

• Secure the appliance to the floor by inserting two screws

through the pilot holes at the bottom of the appliance.

Figure 9.3 shows the fireplace installed on the floor.

However, this fireplace can be elevated off the floor

provided that the fireplace is properly supported by framing

materials and the ceiling clearances are maintained.

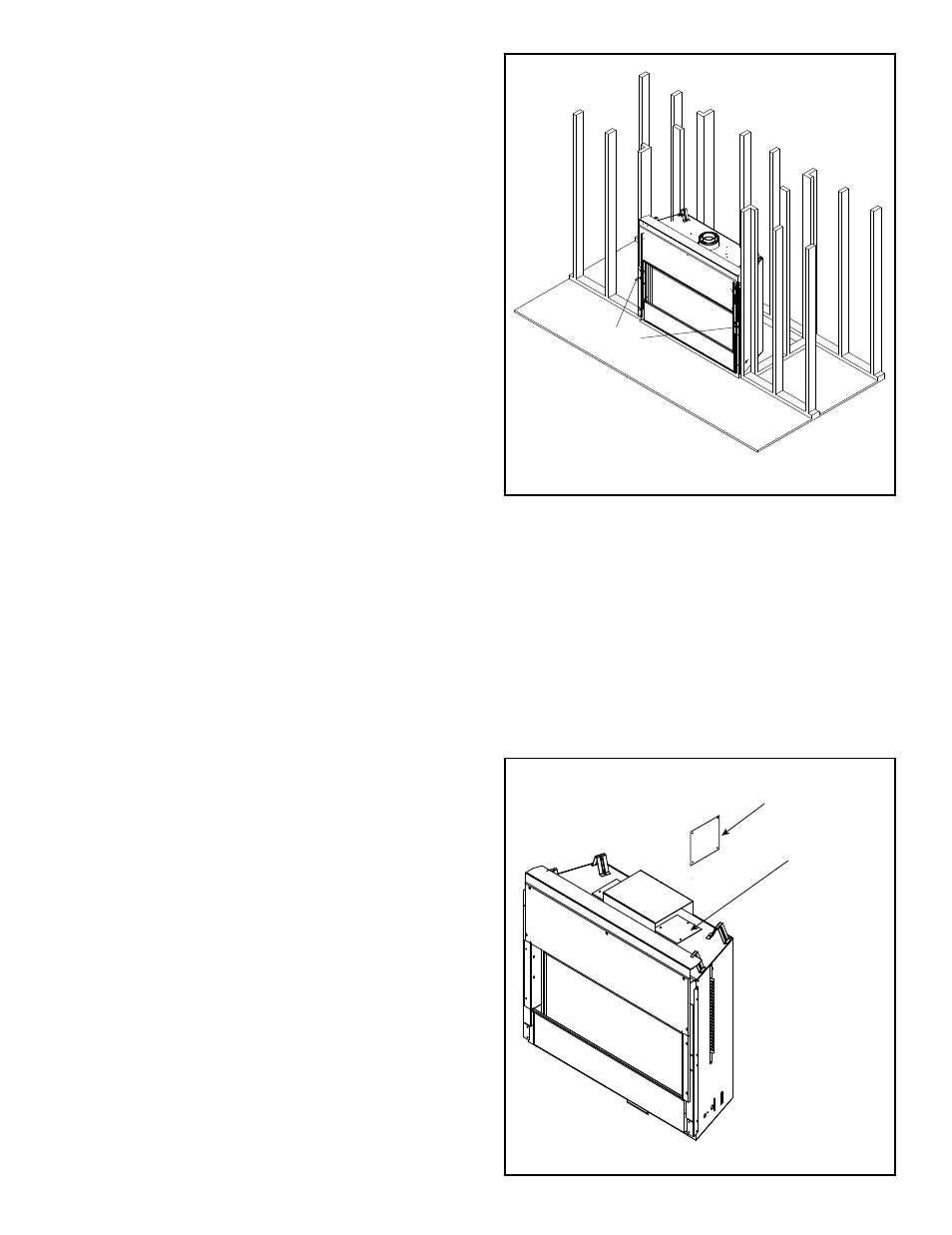

Figure 9.3 Proper Positioning, Leveling And Securing of an

Appliance

NAILING TABS

BOTH SIDES

C. Installing the Optional Heat-Zone®-240V

Kit

• Remove the cover plate from the fireplace and discard

it.

• Center the duct collar around the exposed hole and attach

it to the fireplace with 3 screws. Note: Do this BEFORE

final positioning of fireplace.

• Determine the location for the air register/fan housing

assembly.

Reference the Heat-Zone®-240V Kit instructions for the

remaining installation steps.

Figure 9.4 Remove Cover Plate

REMOVE

COVER

PLATE

ATTACH

HEAT-ZONE

®

-240V

HERE
