Heat & Glo • XLR-PLUS-N-AU, XLR-PLUS-PB-AU • 2264-900 Rev. o • 1/13

54

WARNING! Risk of Fire! Maintain specified air space

clearances to combustibles.

Failure to comply with these instructions may cause a

fire or cause the appliance to overheat.

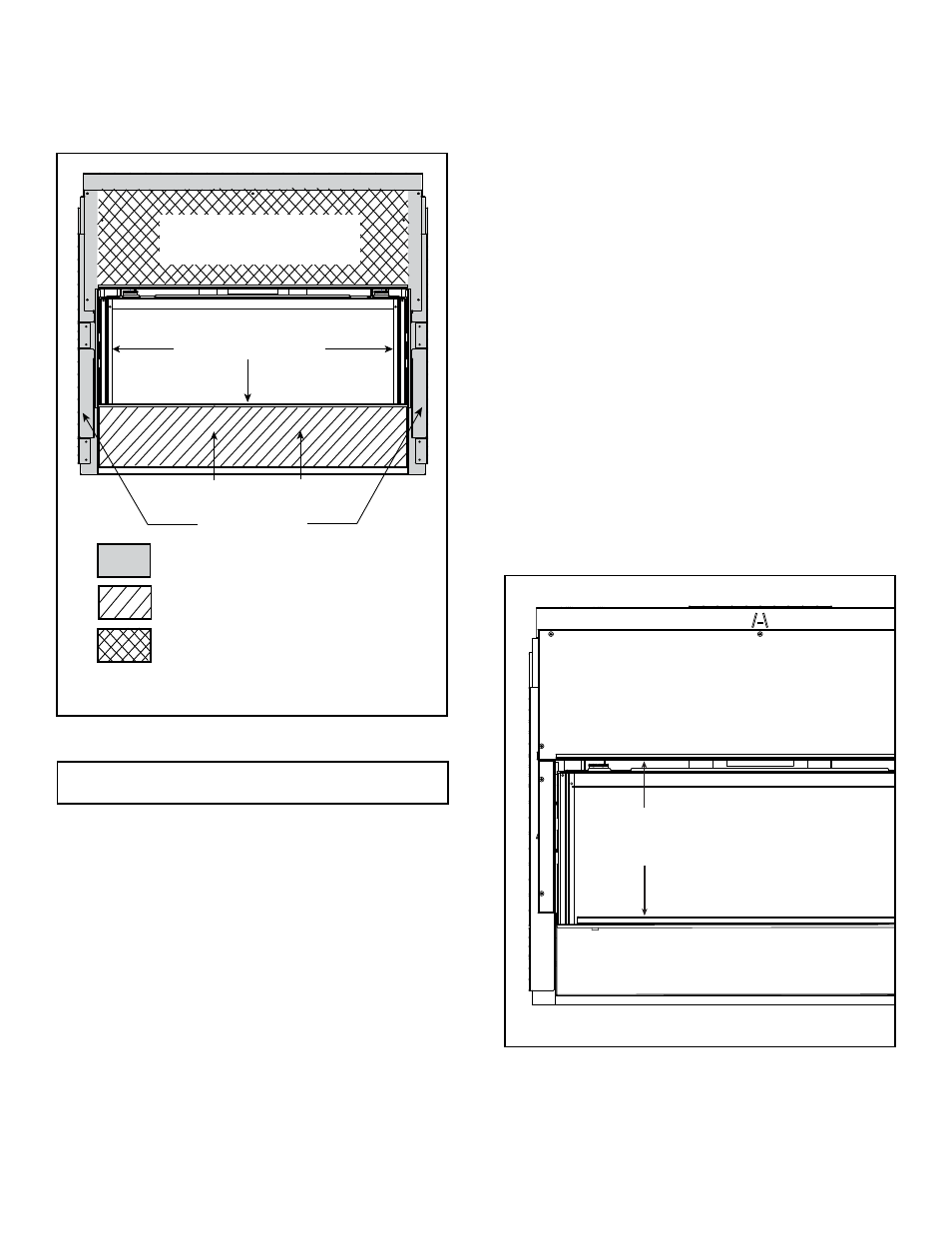

LOWER COVER PANEL

TOP FLANGE

FINISHING FLANGES

SIDE COLUMNS

= NO SCREWS ALLOWED

= 1 in. (25 mm) MAX. SELF-TAPPING

SCREWS ALLOWED

= 5-1/8 in. - 7 in. (130 mm - 180 mm)

SELF-TAPPING SCREWS ALLOWED

FACTORY-INSTALLED

NON-COMBUSTIBLE BOARD

Figure 13.3 Finishing Details

Self-tapping screws up to 1 in. (25 mm) long can be in-

stalled through the nailing tab and outer 1-3/4 in. (45 mm)

edges of the factory-installed non-combustible board to

secure the drywall adjacent to the factory-installed non-

combustible board. See Figure 13.3.
Do not drill or install screws which may penetrate the low-

er cover panel as this will restrict required access to the

glass, battery-back-up, and remote receiver. See Figure

13.3.
The appliance is designed to accept 1/2 in. (13 mm) wall

sheathing materials such as drywall, plywood, wood com-

posites, or non-combustible materials. The type of material

used depends whether the installation is an Inside or Over-

lap Fit Method. Refer to Section 13.C regarding installation

details associated with the Inside an Overlap Fit methods.
The left/right sides and bottom of the fireplace opening uti-

lize finishing flanges that will overlap the 3/8 in. (10 mm)

wall sheathing. The 3/8 in. (10 mm) thick wall sheathing

can be installed tight to the left, right, and bottom finish-

ing flanges such that the rough edges of the sheathing are

tucked behind the flanges when using the Overlap Method

of finishing.
Note: Finishing materials are designed to overlap the outer

edges of the finishing flanges up to the fireplace opening.

NOTE: It is acceptable to use a high temperature sili-

cone sealant to adhere drywall to lower cover panel.

Note: Refer to Section 13.C regarding installation details as-

sociated with the Inside and Overlap Fit methods.

CAUTION! Risk of Glass Damage and Cuts! DO NOT

drill or install any type of screw or fastener into the lower

cover panel. Sharp screw or fastener tips may penetrate

and break the glass or cause cuts.
The XLR-PLUS-AU must be finished using either the

Tonic or Martini decorative fronts. See Figures 13.12

and 13.13. The final fireplace installation can be accom-

plished by either the Overlap Fit or Inside Fit method. Ref-

erence Section 13.C regarding installation details associ-

ated with the Inside Fit and Overlap Fit methods.
It is acceptable to pre-drill holes and use self-tapped

screws in the factory-installed non-combustible board to

attach non-combustible backer board for tile, marble, etc.

Refer to Figure 13.3 for acceptable screw location and

screw length requirements.

FIREPLACE OPENING

15-3/4 in. to 16-1/8 in.

(400 mm to 410 mm)

Figure 13.4 Required Fireplace Opening Height
