Heat & Glo • XLR-PLUS-N-AU, XLR-PLUS-PB-AU • 2264-900 Rev. o • 1/13 26
INSTALLED
HORIZONTALLY
H
1
H
2
V
1

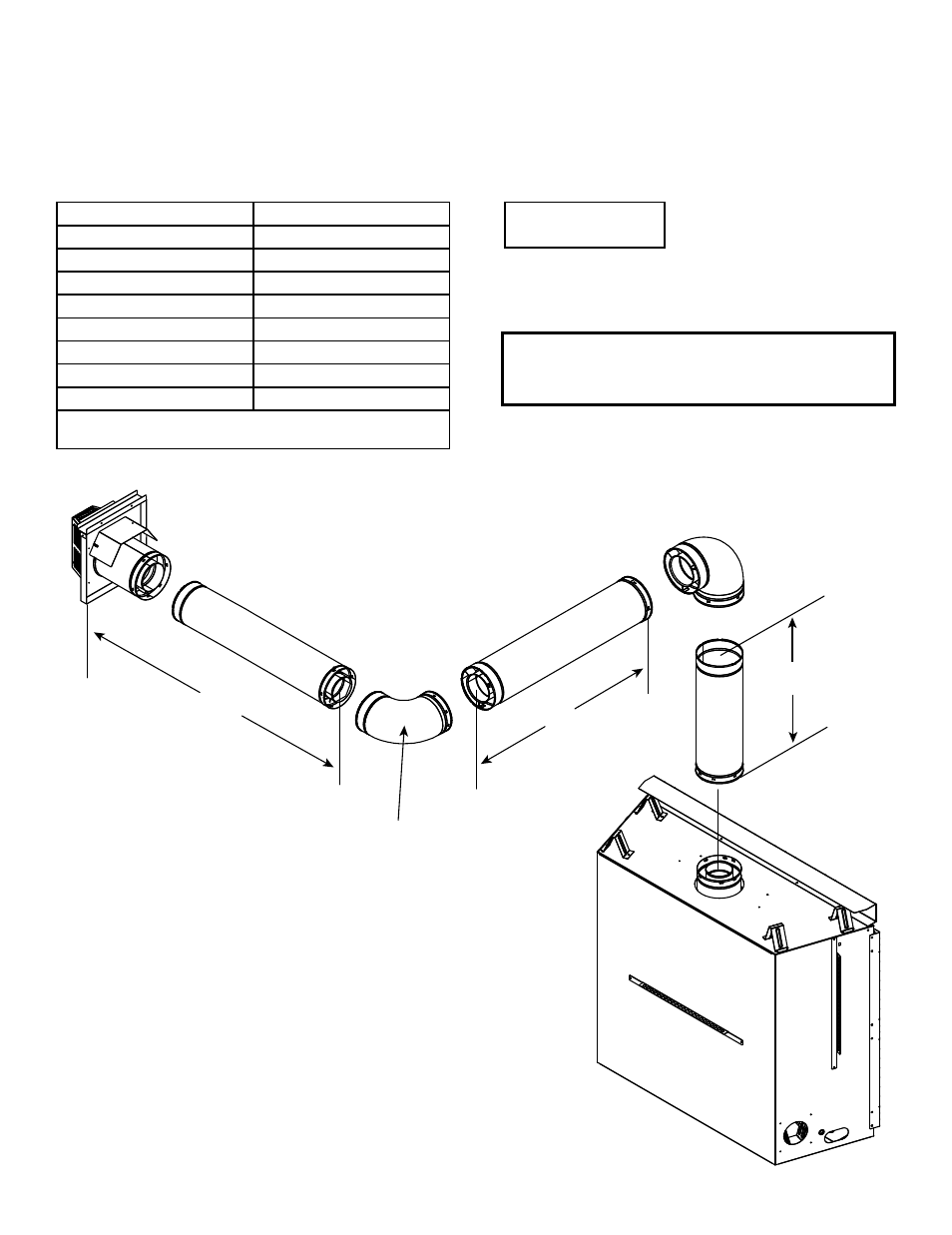

Figure 7.4
1. Top Vent - Horizontal Termination - (continued)
Top Vent - Horizontal Termination
Venting with 2 elbows
Note: Use SLP Series
components only.
V Minimum H
1
+ H
2
Maximum
90° Elbow 305 mm (1 ft.)
305 mm (1 ft.) 610 mm (2 ft.)
457 mm (1.5 ft.) 914 mm (3 ft.)
610 mm (2 ft.) 1.22 m (4 ft.)
762 mm (2.5 ft.) 1.53 m (5 ft.)
914 mm (3 ft) 1.8 m (6 ft.)
1066 mm (3.5 ft.) 2.75 m (9 ft.)
1.2 m (4 ft.) 4.6 m (15 ft.)
H + H
1
Max. = 4.6 m (15 ft.)
V + H + H
1
Max. = 12.2 m (40 ft.)
Note: All appliances that will burn butane must have
a 12 in. (305 mm) vertical section of pipe before
any other venting.
