8.12.3 UPS Help Screen

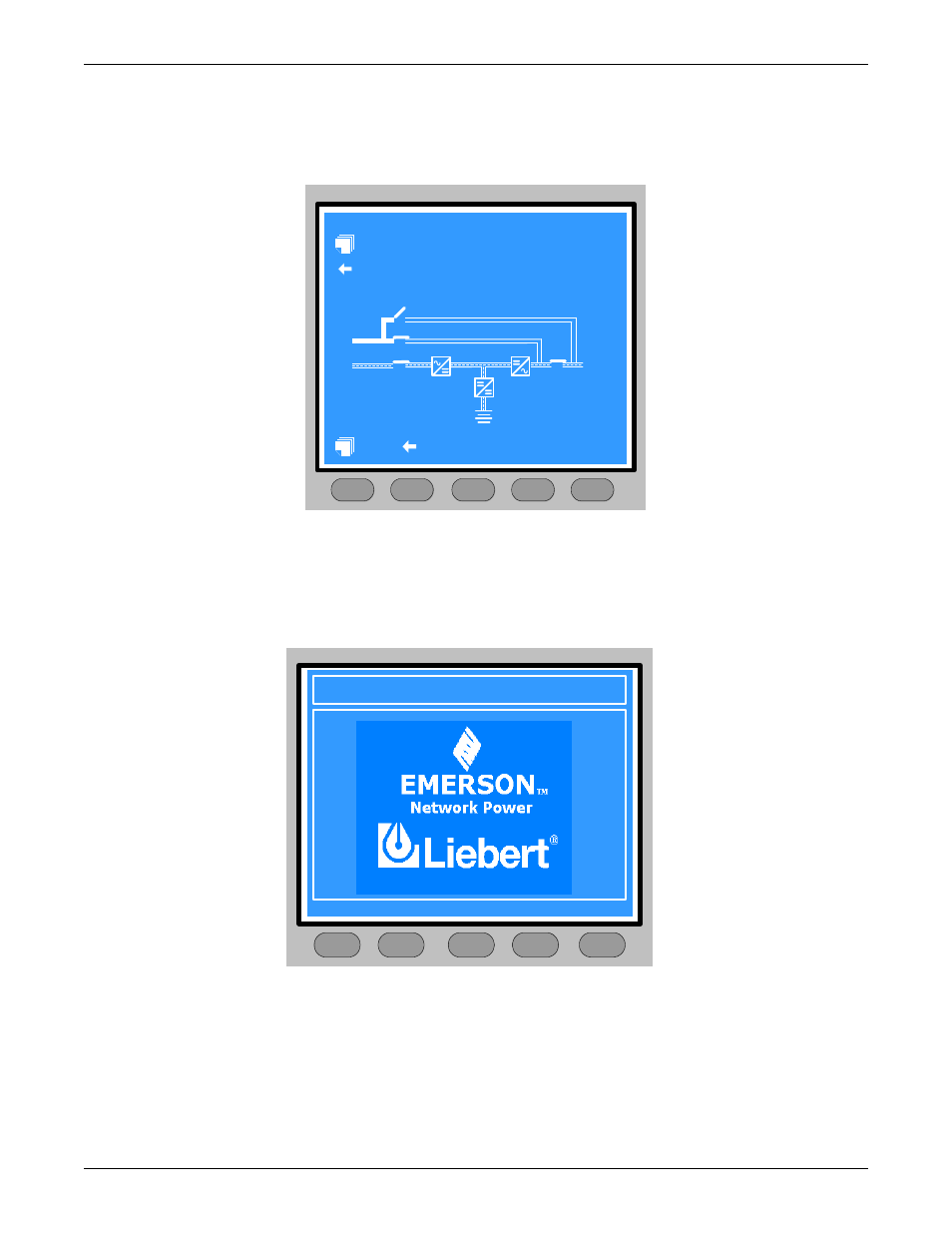

Press the HELP key below the LCD to display the Help window shown in Figure 56. (Press the
HELP key again to exit the Help window.)
Figure 56 Help screen
8.12.4 Screen Saver Window
If there has been no interaction with the NX’s LCD for 2 minutes, the screen saver window appears. It
remains on the LCD for 2 minutes, then the screen will go dark. The LCD will become active again
when any key is pressed.
Figure 57 Screen saver window
F2 F4 HELP F1 F3
Help information
Select the previous menu item
Select the current record window
Q3
Q2
Q1 Q5
Press help key back to main menu
F2 F4 F1 F3
2006-01-22 12:30:36
Single Normal
Liebert NX
Press any key back to main menu
30kVA-3X3
HELP
