Installation Drawings
52

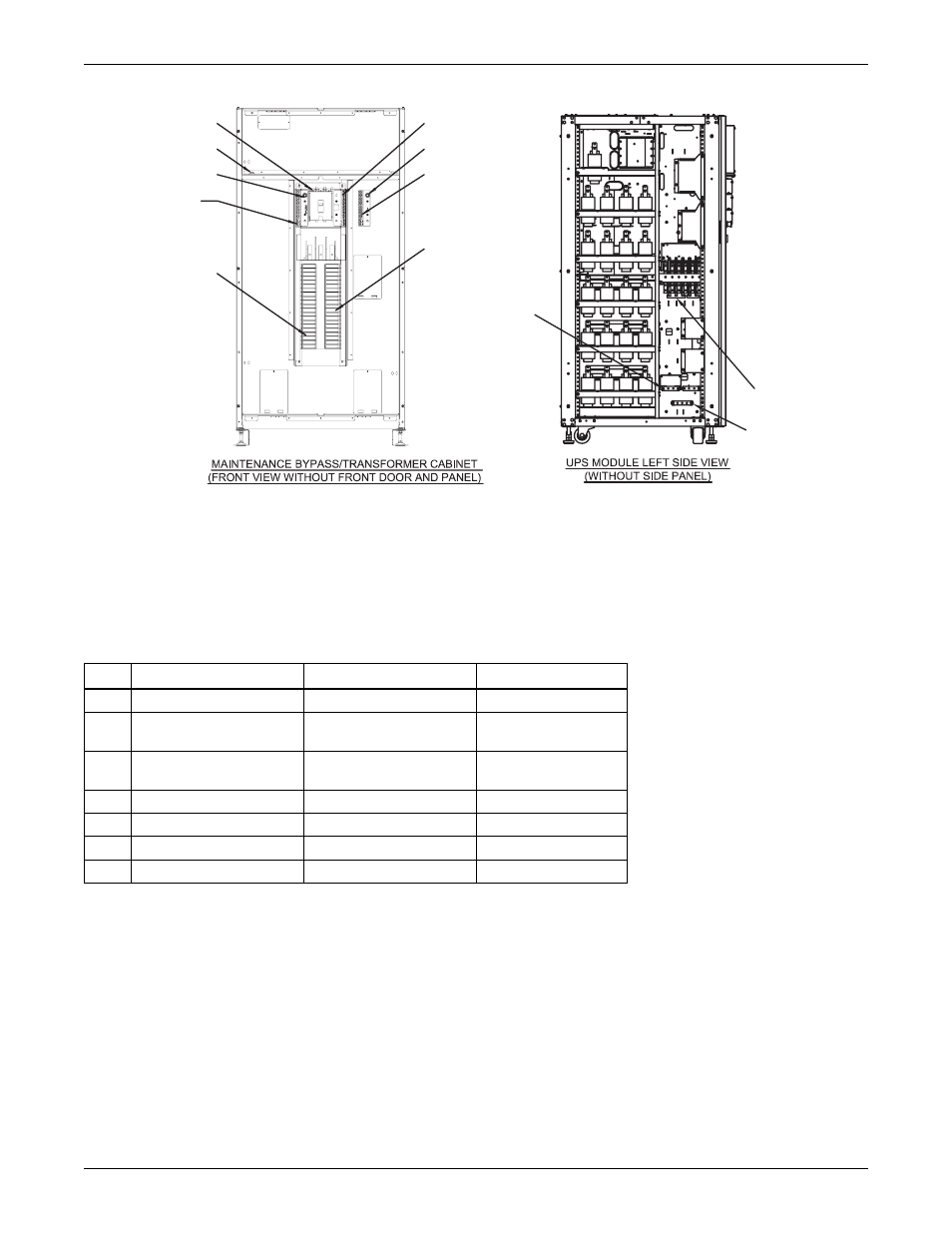

Figure 39 Lineup detail—SlimLine distribution cabinet to NX
Table 14 Liebert-supplied interconnect wiring—SlimLine distribution cabinet to NX
Run From To Conductors
A Distribution Cabinet Load AC Connection Isolated Ground
B Distribution Cabinet Load AC Connection
Neutral
Distribution Cabinet
C Distribution Cabinet Load AC Connection
Ground
Distribution Cabinet
D Distribution Cabinet Load AC Connection PH A,B,C
E UPS Module AC Output Distribution Cabinet PH A, B, C
G UPS Module AC Output Distribution Cabinet Neutral
H UPS Module AC Output All Ground Connections Ground
E
E
H
G
B
D
G
H
A
C
D
H
NOTES:
1. All Liebert-supplied cable will need to be repositioned prior to and while setting the cabinets in their
installed location.
2. All interconnection cables and hardware supplied by Liebert.
3. AC connections must be made to the UPS module before attaching.
4. See Figure 43 for placement of distribution cabinet.
5. Refer to the individual drawing of each piece of equipment for additional details.
