Option Installations
43
5.12 MultiPort 4 Card
The MultiPort 4 card provides four sets of voltage-free contact closures for remote monitoring of
alarm conditions UPS operation On Battery and battery low condition. A typical applicaton is to allow
a maximum of four computer systems to simultaneously monitor the status (e.g., utility power
failure-low battery) of a singleUPS.
This card is supported in any of the three Intellislot bays on the NX.

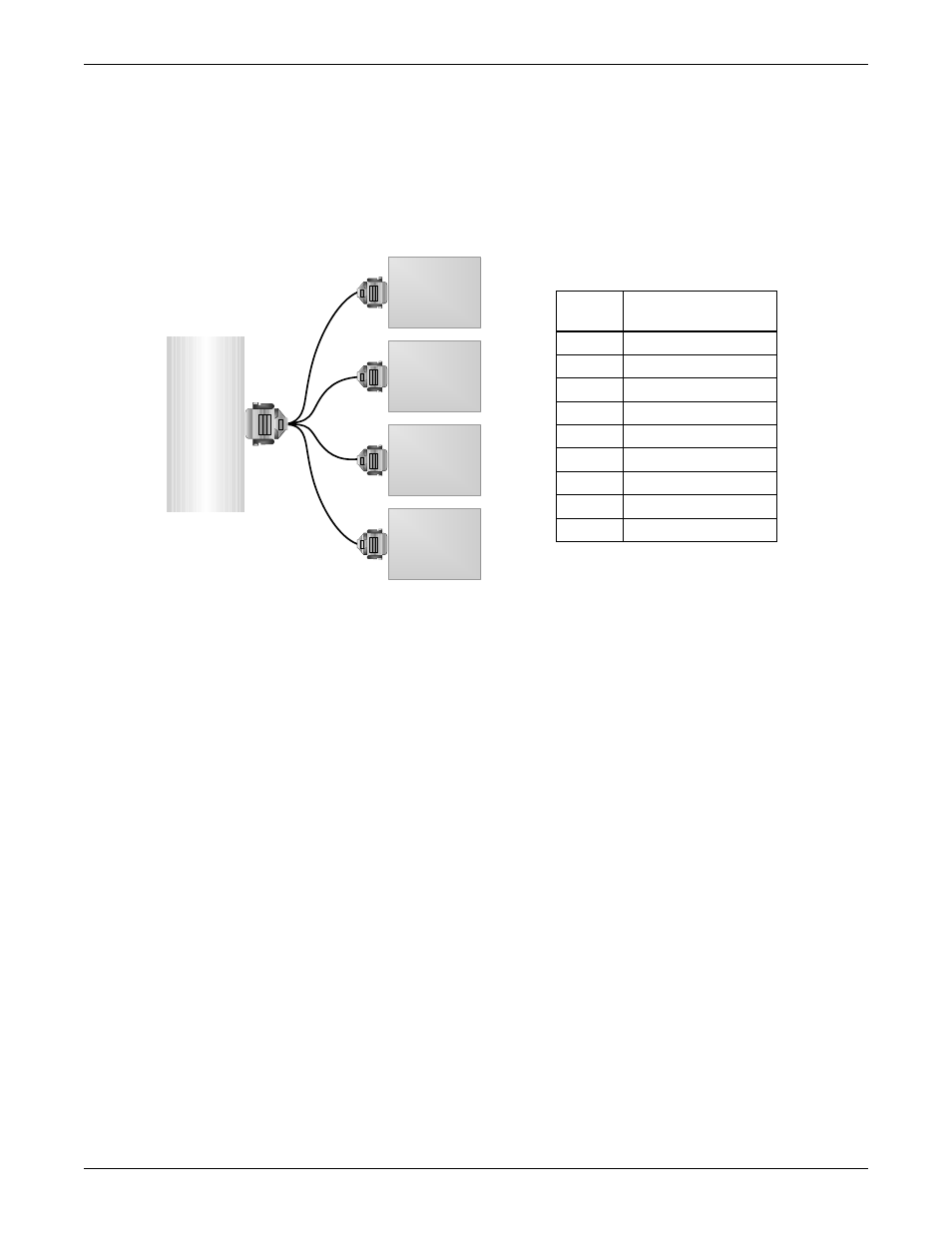

Figure 29 MultiPort 4 card pin assignment
UPS
CPU
CPU
CPU
CPU
Pin
Assignment
Description
1
Low Battery
2
Not Used
3
Not Used
4
Not Used
5
Not Used
6
Not Used
7
Low Battery Common
8
Utility Fail Common
9
Utility Fail
