Operator Control and Display Panel
64
8.6 Navigation Keys
The navigation keys on the front panel—F1 through F4 and Help—are used to access the LCD to view
the current status and other information about the NX.
Navigation key icons on the LCD appear above each key to indicate its operation (see Table 20). The
keys are “soft keys” that can change functions according to the icon.
• Use F1 either to move to a different portion of the LCD (shift icon) or to escape to a previous view
(ESC icon).
• Use F2 and F3 as cursor keys to move left and right or up and down, depending on the icons dis-
played above the keys.
• Use F4 as an Enter key to confirm a choice.
• Use HELP to access help information on the LCD.
8.7 UPS System Information
The UPS system information displayed at the top of the LCD is detailed in Table 21.

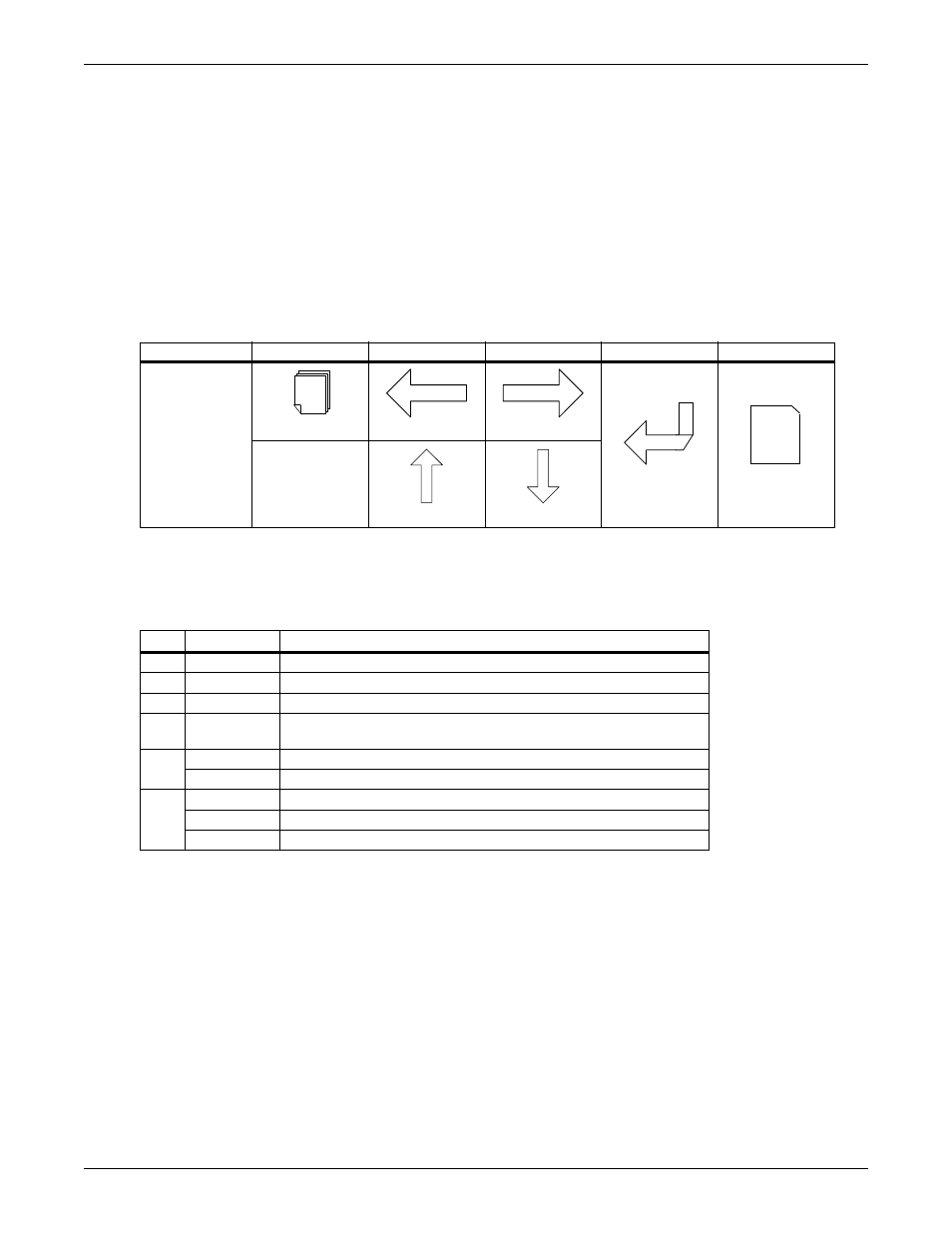

Table 20 Icons for navigation keys
Key F1 F2 F3 F4 HELP
Functions
Available
Enter Help
Shift Left Right
Exit Up Down
Table 21 Description of items in UPS system window
No. Item Type Explanation
1 Liebert NX UPS name
2 2002-10-12 Current date
3 12:30:36 Current time
4
030kVA-3x3 030 means UPS model is 30kVA;
3x3 means 3 by 3 system (three phase input and output)
5
Unit #1 #1 of 6 Paralleled changed to “Unit #1”
Single UPS is configured as a single-unit system running in Normal mode
6
Normal UPS in normal operation, inverter powering load, no warnings
Warning UPS has a general alarm
Fault UPS has a serious fault
?
ESC
