Operator Control and Display Panel
70
8.12 Types of LCD Screens
This section provides a quick guide to the main types of LCD screens.
8.12.1 Opening Display

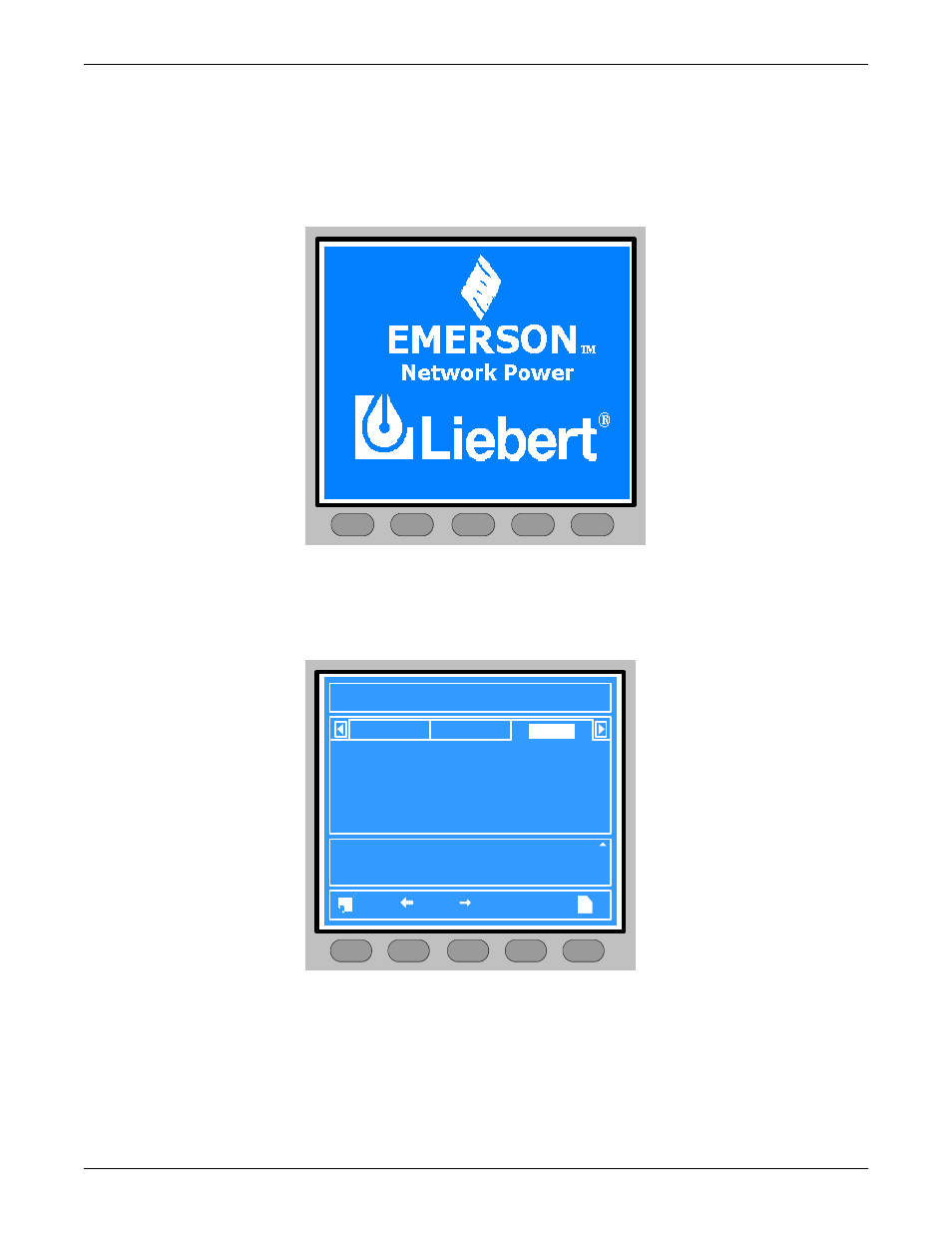

As the UPS begins powering up, the opening display appears, as shown in Figure 54.
Figure 54 Opening display
8.12.2 Default Screen
After the UPS has powered up and completed a self-test, the output screen appears, as shown in
Figure 55. This window is the default screen.
Figure 55 Default screen
F2 F4 F1 F3 HELP
?
F2 F4 HELP F1 F3
Bypass Mains Output
L1-N/L2 L2-N/L3 L3-N/L1
L-N voltage (V) 119.8 119.4 119.4
L-N current (A) 0.3 0.5 0.6
Frequency (Hz) 59.97 59.97 59.97
L-L voltage (A) 207.1 206.8 207.1
Power factor 0.00 0.00 0.00
2006-01-22 12:30:36 Liebert NX
Single Normal 30kVA-3X3
Fault reset 01-22 10:32
Manual turn on 01-22 10:32
Normal mode 01-22 11:05
