72
RiverMaster Administrator’s Guide
Adding a Remote Server Chapter 3
Configuring an ANG-3000/7000
To change properties for the Remote Tunnel, perform the following steps:
1 Select your Remote Tunnel from the tree list under Remote Servers
and click Properties in the display.
The Remote Tunnel Properties window appears as shown in
Figure 42.

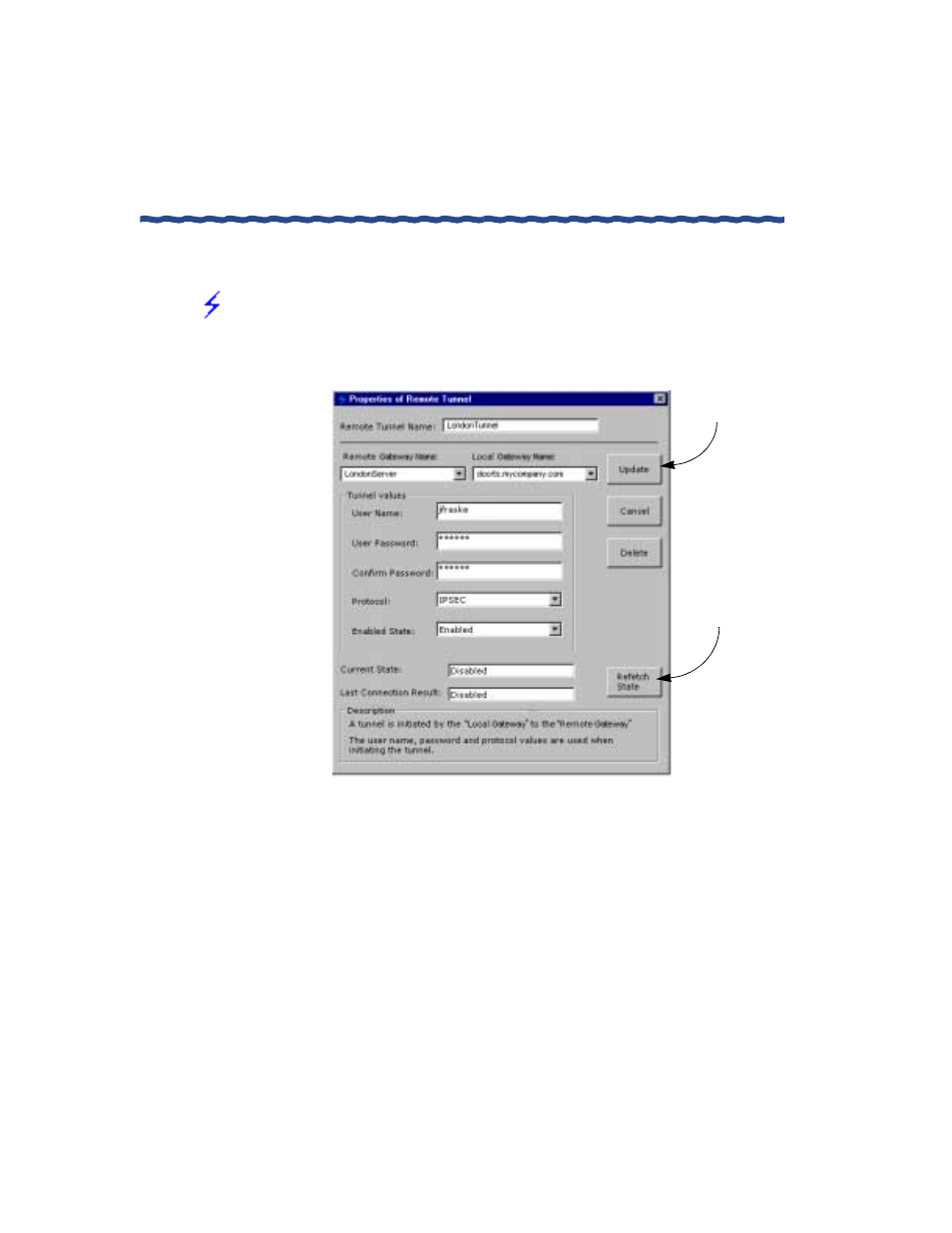

Figure 42 Remote Tunnel Properties Window
2 Change any information. If the Remote Tunnel is enabled, select
Disabled in the Enabled State field and do one of the following:
– Click Update to reconfigure the Remote Tunnel.
– Click Cancel to close the window without saving your changes.
– Click Delete to remove the Remote Tunnel configuration.
If you clicked Update, a window pops up asking if you want to save
the modified tunnel. Click Yes or No.
Click here to
update the
Click here to refresh
the values for the
Current state and
Last try result
attributes shown in
the Tunnel Protocols
window
tunnel
