The SRDY signal changes the "1" to "0," immedi-
ately after writing "1" into the transmit control bit
TXTRG or the receive control bit RXTRG and
returns from "0" to "1", at the point where the first
synchronous clock has been input (falling edge).
When you have set in the master mode, control the
transfer by inputting the same signal from the slave
side using the input port or I/O port. At this time,

_________

since the SRDY terminal is not set and instead P13
functions as the I/O port, you can apply this port
for said control.

■

Timing chart

The timing chart for the clock synchronous system
transmission is shown in Figure 5.8.6.4.

(a) Transmit timing for master mode

(b) Transmit timing for slave mode

(d) Receive timing for slave mode

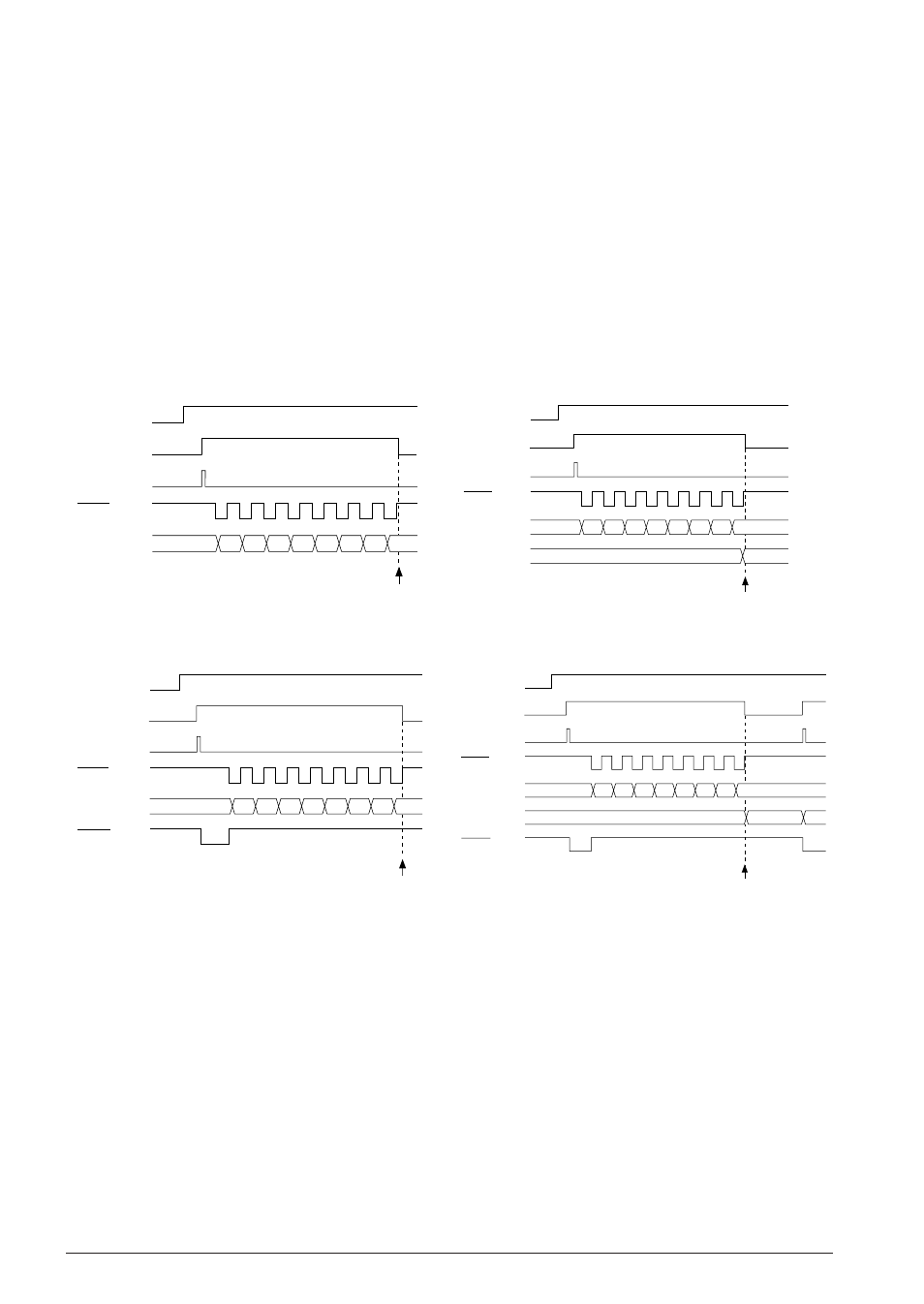

Fig. 5.8.6.4 Timing chart (clock synchronous system transmission, LSB first)

■

_________

Transmit/receive ready (SRDY) signal

When this serial interface is used in the clock
synchronous slave mode (external clock input), an

_________

SRDY signal is output to indicate whether or not
this serial interface can transmit/receive to the
master side (external serial input/output device).

_________

This signal is output from the SRDY terminal and
when this interface enters the transmit or receive
enable (READY) status, it becomes "0" (LOW level)
and becomes "1" (HIGH level) when there is a
BUSY status, such as during transmit/receive
operation.

SCLK

TXTRG (RD)

SOUT

D0 D1 D2 D3 D4 D5 D6 D7

TXEN

Interrupt

TXTRG (WR)

SCLK

TXTRG (RD)

SOUT

D0 D1 D2 D3 D4 D5 D6 D7

TXEN

Interrupt

TXTRG (WR)

SRDY

SCLK

RXTRG (RD)

SIN

D0 D1 D2 D3 D4 D5 D6 D7

RXEN

Interrupt

RXTRG (WR)

TRXD

1st data

SRDY

SCLK

RXTRG (RD)

SIN

D0 D1 D2 D3 D4 D5 D6 D7

RXEN

Interrupt

RXTRG (WR)

TRXD

1st data
