3 CPU AND BUS CONFIGURATION
3.5.2 Bus mode
In order to set bus specifications to match the
configuration of external expanded memory, two
different bus modes described below are selectable
in software.
■ Single chip mode
0EFFFFH
010000H
00FFFFH
00FF00H
00FD7FH
00F800H
00F7FFH
00D800H
00D7FFH
:
00C000H
00BFFFH
000000H
- MCU mode -
Kanji font ROM
(896K bytes)
I/O memory
Display memory
Internal RAM
Unused area
Internal ROM

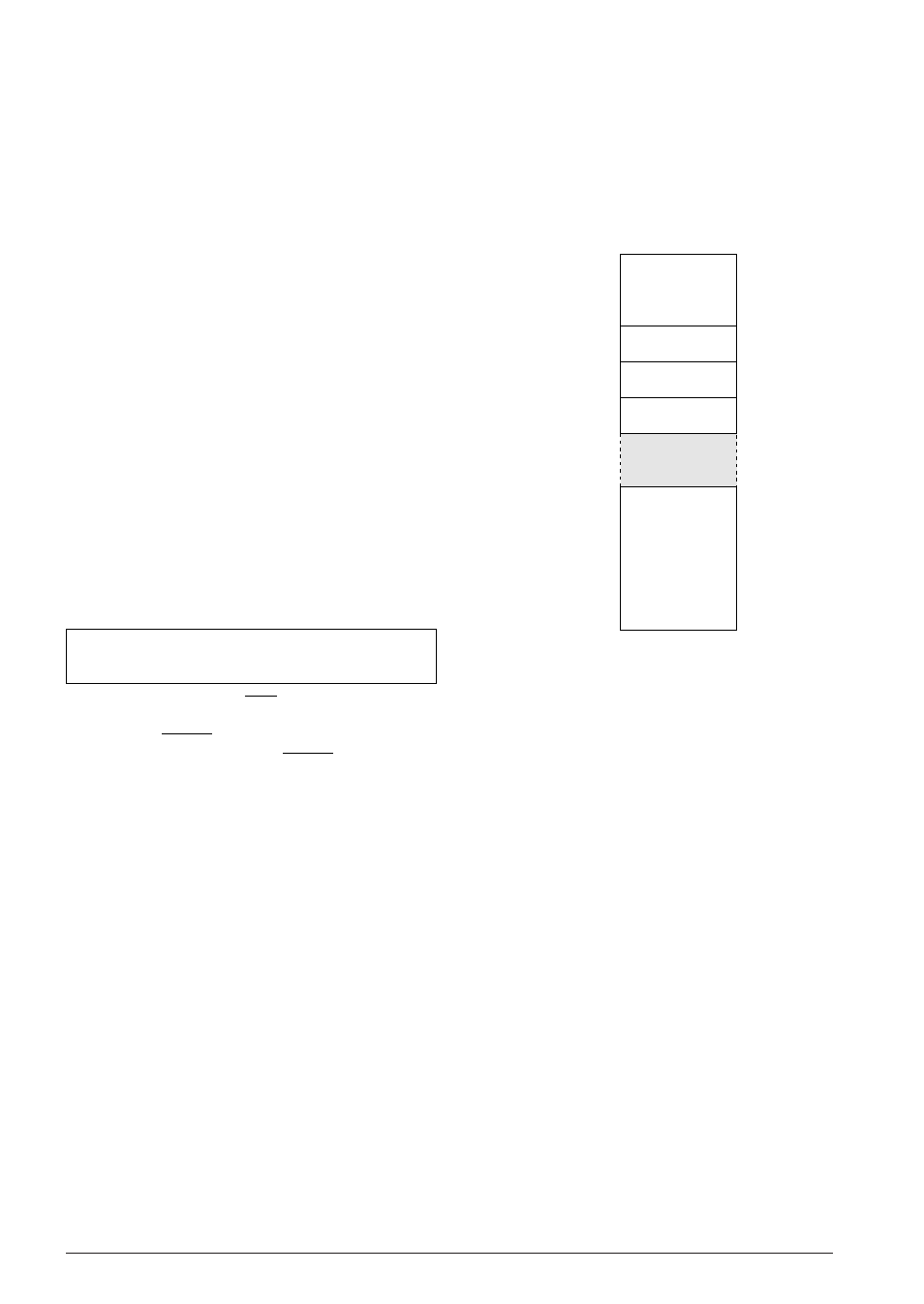

Fig. 3.5.2.1 Memory map for the single chip mode
The single chip mode setting applies when the
S1C88650 is used as a single chip microcom-
puter without external expanded memory.
Since this mode employs internal ROM, the
system can only be operated in the MCU mode
discussed in Section 3.5.1.
In the MPU mode, the system cannot be set to
the single chip mode.
Since there is no need for an external bus line in
this mode, terminals normally set for bus use
can be used as general purpose output ports or
I/O ports.
■ Expansion mode
The expansion mode setting applies when the
S1C88650 is used with less than 1M bytes
×
3 of
external expanded memory. This mode is
usable regardless of the MCU/MPU mode
setting.
Because internal ROM is being used in the MCU
mode, external memory in this model can be
assigned to the area from 100000H to 3FFFFFH.
Since the internal ROM area is released in the
MPU mode, external memory in this model can
be assigned to the area from 000000H to
2FFFFFH.
However, the area from 00C000H to 00FFFFH is
assigned to internal memory and cannot be
used to access an external device.
When accessing internal memory in this mode,
____ ____ _____
the chip enable (CE) and read (RD)/write (WR)
signals are not output to external memory, and
the data bus (D0–D7) goes into high impedance
status (or pull-up status).
Consequently, in cases where addresses overlap
in external and internal memory, the areas in
external memory will be unavailable.
■
_______
MPU mode... Set the MCU/MPU terminal to LOW
Internal ROM area is released to an external
device source. Internal ROM then becomes
unusable and when this area is accessed, chip
____ ____ _____
enable (CE) and read (RD)/write (WR) signals
are output to external memory and the data bus
(D0–D7) become active. These signals are not
output to an external source when other areas of
internal memory are accessed.
In the MPU mode, the system is activated by
external memory.
When employing this mode, the exception
processing vectors and initialization routine
must be assigned within the common area
(000000H–007FFFH).
You can select whether to use the built-in pull-up
_______
resistor of the MCU/MPU terminal by the mask
option.
Iput port pull-up resistor
_______
MCU/ MPU ..... ■ ■ With resistor ■ ■ Gate direct
Notes: • Setting of MCU/MPU terminal is latched at
the rising edge of a reset signal input from
the RESET terminal. Therefore, if the setting
is to be changed, the RESET terminal must
be set to LOW level once again.
• The data bus while the CPU accesses to the
internal memory can be select into high-
impedance status or pulled up to high using
the pull-up control register and mask option.
See Section 5.7, "I/O Ports (P ports)", for
details.
