8 ELECTRICAL CHARACTERISTICS

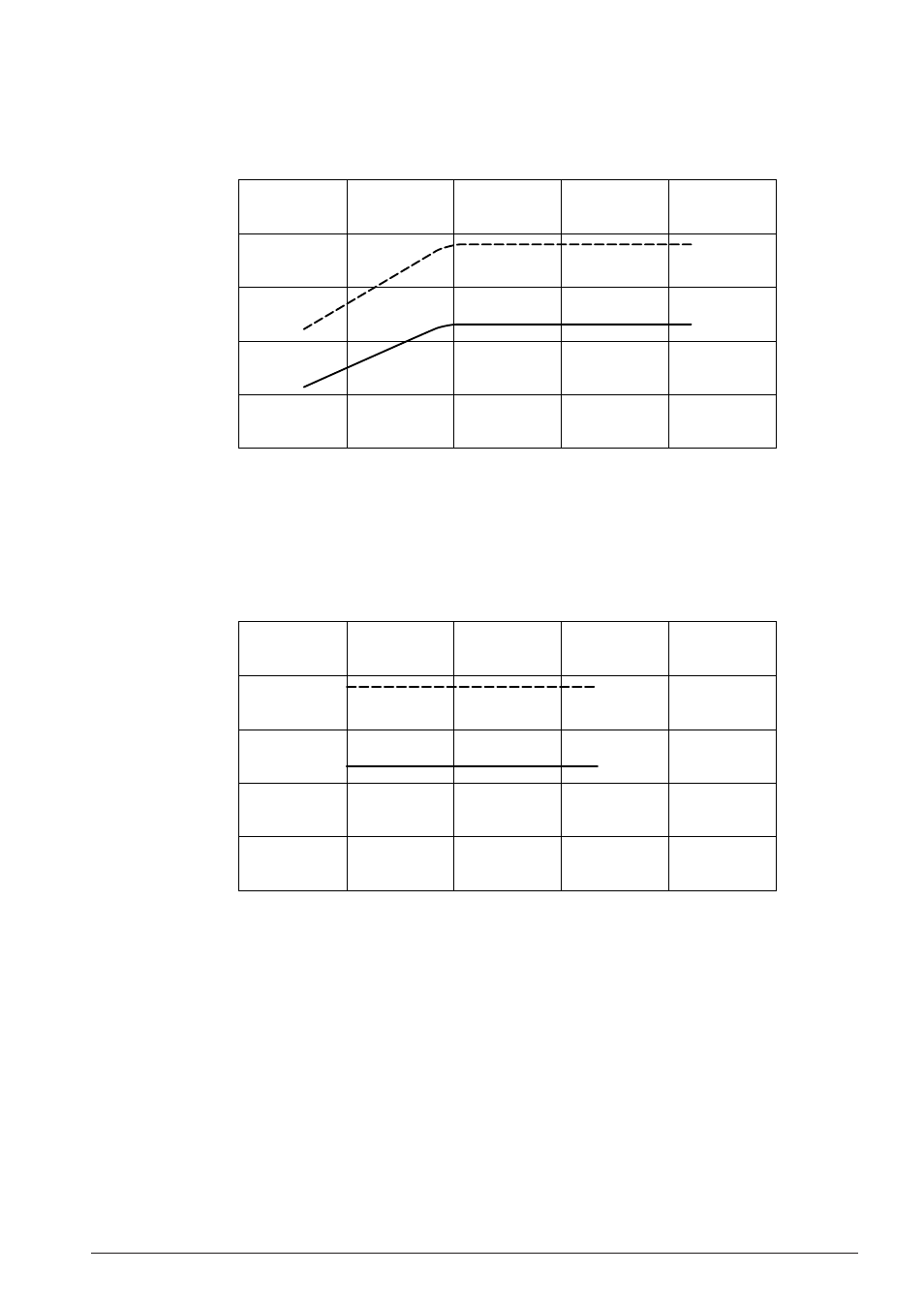

■ LCD drive voltage-supply voltage characteristic
(when the power voltage booster is not used)
Connects 1 M
Ω
load resistor between V SS and V C5 . (no panel load)
Ta = 25°C, Typ. value
1.5 2.0 2.5 3.0 3.5 4.0
7.0
6.0
5.0
4.0
3.0
2.0
V DD [V]
LCx = FH
LCx = 0H
V
C5
[V]
■ LCD drive voltage-supply voltage characteristic
(when the power voltage booster is used)
Connects 1 M
Ω
load resistor between V SS and V C5 . (no panel load)
Ta = 25°C, Typ. value
1.5 1.8 2.1 2.4 2.7 3.0
7.0
6.0
5.0
4.0
3.0
2.0
V DD [V]
LCx = FH
LCx = 0H
V
C5
[V]
