S1C88650 TECHNICAL MANUAL EPSON 163
APPENDIX A S5U1C88000P1&S5U1C88649P2 MANUAL (Peripheral Circuit Board for S1C88650)
APPENDIX A S5U1C88000P1&S5U1C88649P2 MANUAL
(Peripheral Circuit Board for S1C88650)
This manual describes how to use the Peripheral Circuit Board for S1C88650 (S5U1C88000P1&S5U1C88649P2).
This circuit board is used to provide emulation functions when it is installed in the ICE (S5U1C88000H5),
a debugging tool for the 8-bit Single Chip Microcomputer S1C88 Family.
The explanation assumes that the S1C88650 circuit data has been downloaded into the S1C88 Family
Peripheral Circuit Board (S5U1C88000P1).
Refer to the "S5U1C88000P Manual" for how to download circuit data into the S1C88 Family Peripheral
Circuit Board (S5U1C88000P1) and common specifications of the board. For details on ICE functions and
how to operate the debugger, refer to the separately prepared manuals.
A.1 Names and Functions of Each Part
The following explains the names and functions of each part of the S5U1C88000P1&S5U1C88649P2.
I/O #2 connector I/O #1 connector
SW1
LCDVCC
(on the back)
(1)
(2) (26) (26)
I/O #3 connector
(26)
I/O #4 connector
(26)
RESET
MONITOR
L S5U1C88000P1
S1C88 Family Peripheral circuit board
EPSON
I/O #2 I/O #1
H
OSC3
L H
OSC1
VSVD VLCD
LED 8 7 6 5 4 3 2 1
16 15 14 13 12 11 10 9
(3) (4) (5) (6) (7) (8) (9) (26)
(26) (25) (10–24)
Main board (S5U1C88000P1) Add-on board (S5U1C88649P2)

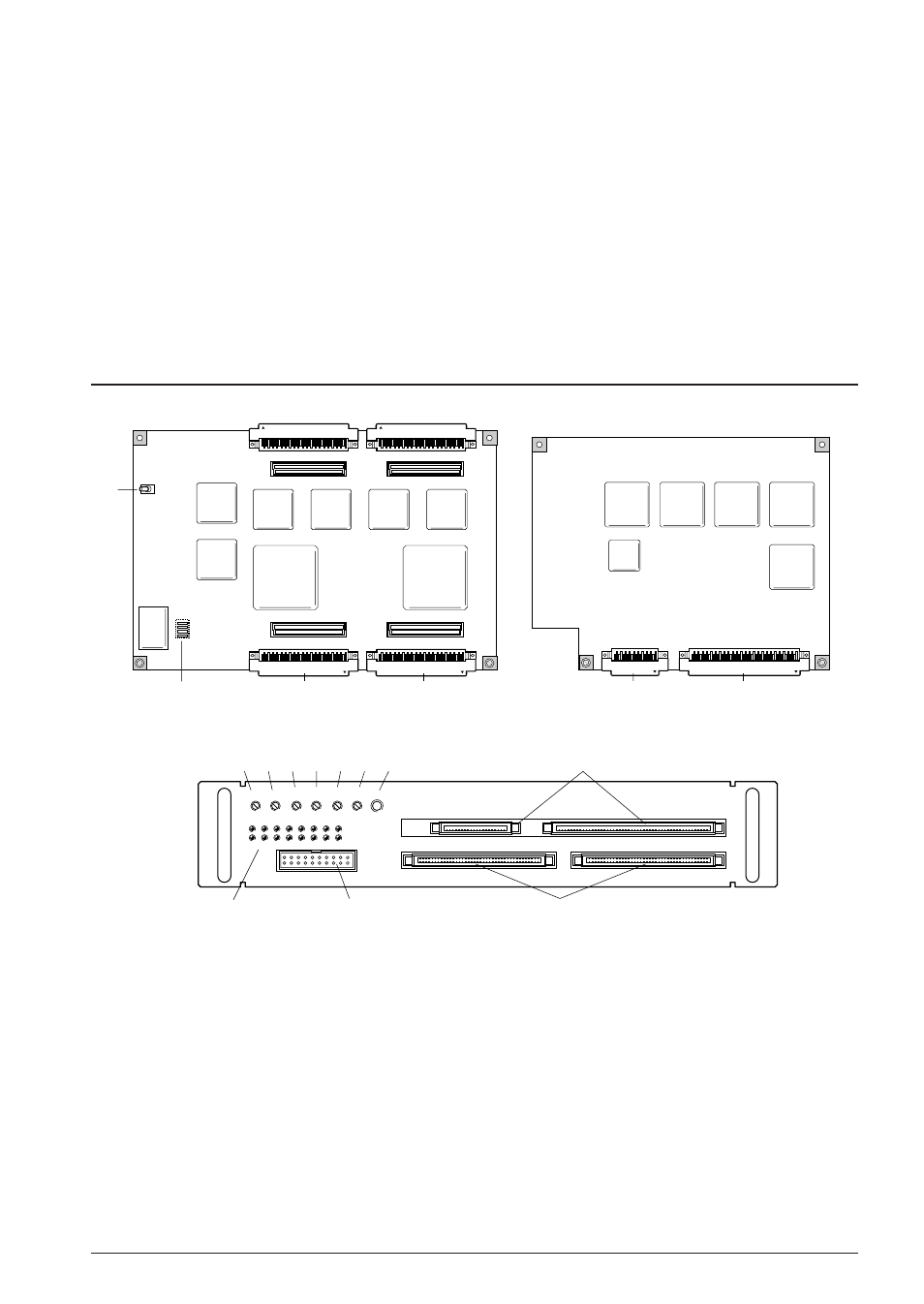

Fig. A.1.1 Board layout
Fig. A.1.2 Panel layout (S5U1C88000P1)
