108 EPSON S1C88650 TECHNICAL MANUAL
5 PERIPHERAL CIRCUITS AND THEIR OPERATION (LCD Driver)
5.11 LCD Driver
5.11.1 Configuration of LCD driver
The S1C88650 has a built-in dot matrix LCD driver
that can drive an LCD panel with a maximum of
4,032 dots (126 segments
×
32 commons).
Figure 5.11.1.1 shows the configuration of the LCD
driver and the drive power supply.
5.11.2 LCD power supply
The S1C88650 generates the LCD drive voltages
V
C1 to V C5 using the internal power supply circuit.
It is not necessary to apply an external voltage.
Note that the internally generated voltage cannot
be used for driving external loads.
The LCD system voltage regulator can be driven
with V
DD or V D2 depending on the power supply
voltage level. Use the LCD system voltage regulator
power select register VDSEL for this switching.
When VDSEL is set to "0", V
DD is selected and
when VDSEL is set to "1", V D2 is selected. The V D2
voltage is generated by approximately doubling the
V
DD voltage in the power voltage booster circuit.
When using V D2 , write "1" to the power voltage
booster circuit ON/OFF control register DBON to
turn the power voltage booster circuit on. This must
be done before the power source of the LCD system
voltage regulator can be switched to V
D2 .
V C1
V D2
V C3
V C4
V C5
CA
CB
CC
CD
CE
CF
CG
COM0–COM31
SEG0–SEG125
V SS
LCD system
voltage regulator
V C2
LCD contrast
adjustment circuit
LC3
FRMCS
LC2
LC1
LC0
LCD driver
DTFNT
V C1– V C5
LCDC1
LCDC0
LDUTY1
LDUTY0
Display memory
SEGREV
Power voltage
booster
Clock
control
circuit
V DD V D2
f OSC1
Divider
OSC1 oscillation
circuit
Programmable timer 5
underflow signal
DSPAR
VDSEL
DBON

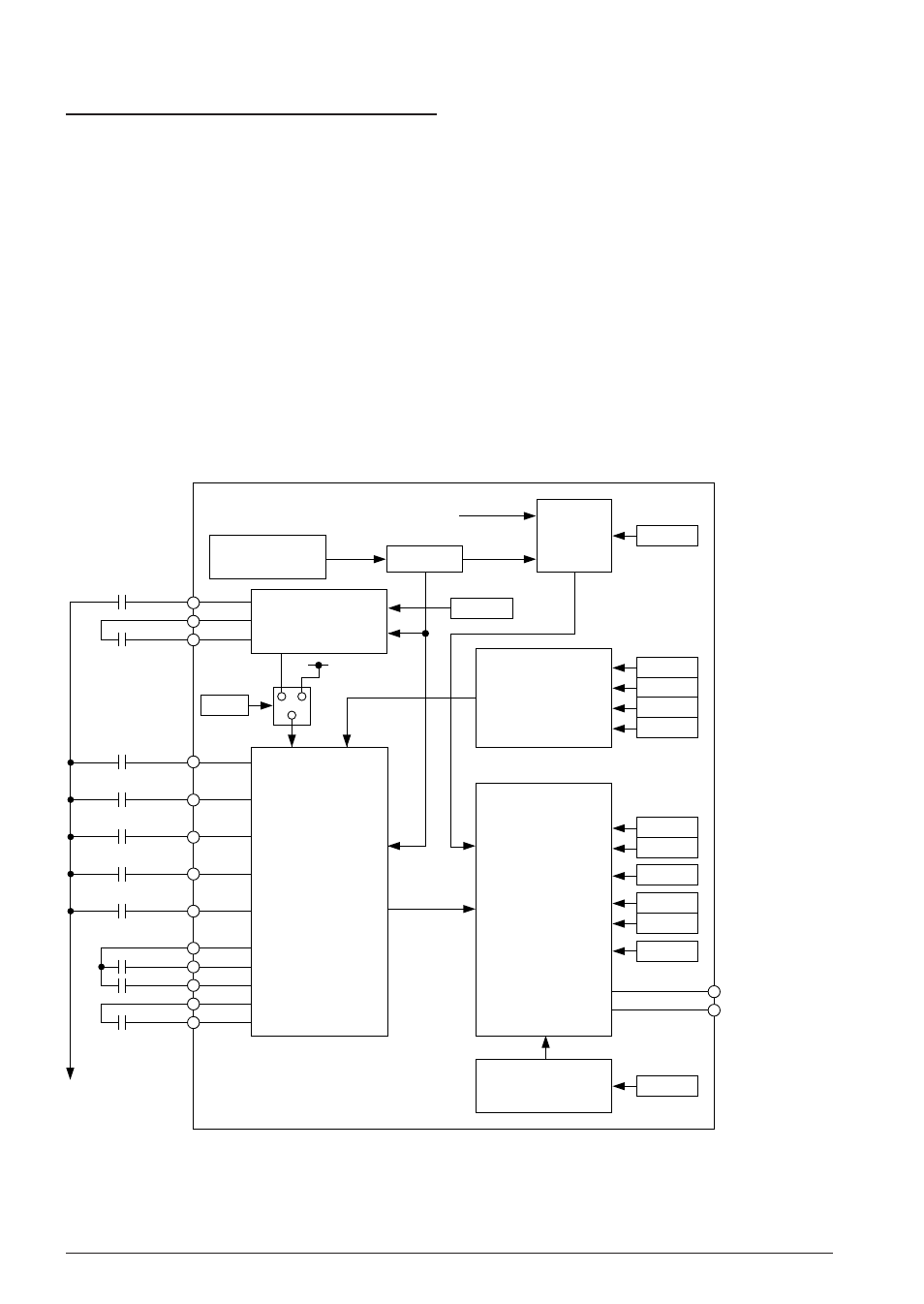

Fig. 5.11.1.1 Configuration of LCD driver and drive power supply
