628 12 Test Run and Program Run
12.1 Gr
aphics
Overview of display modes
The control displays the following soft keys in the Program Run and
Test Run modes of operation:
Limitations during program run
A graphical representation of a running program is not possible if the
microprocessor of the TNC is already occupied with complicated
machining tasks or if large areas are being machined. Example:
Multipass milling over the entire blank form with a large tool. The TNC
interrupts the graphics and displays the text ERROR in the graphics
window. The machining process is continued, however.

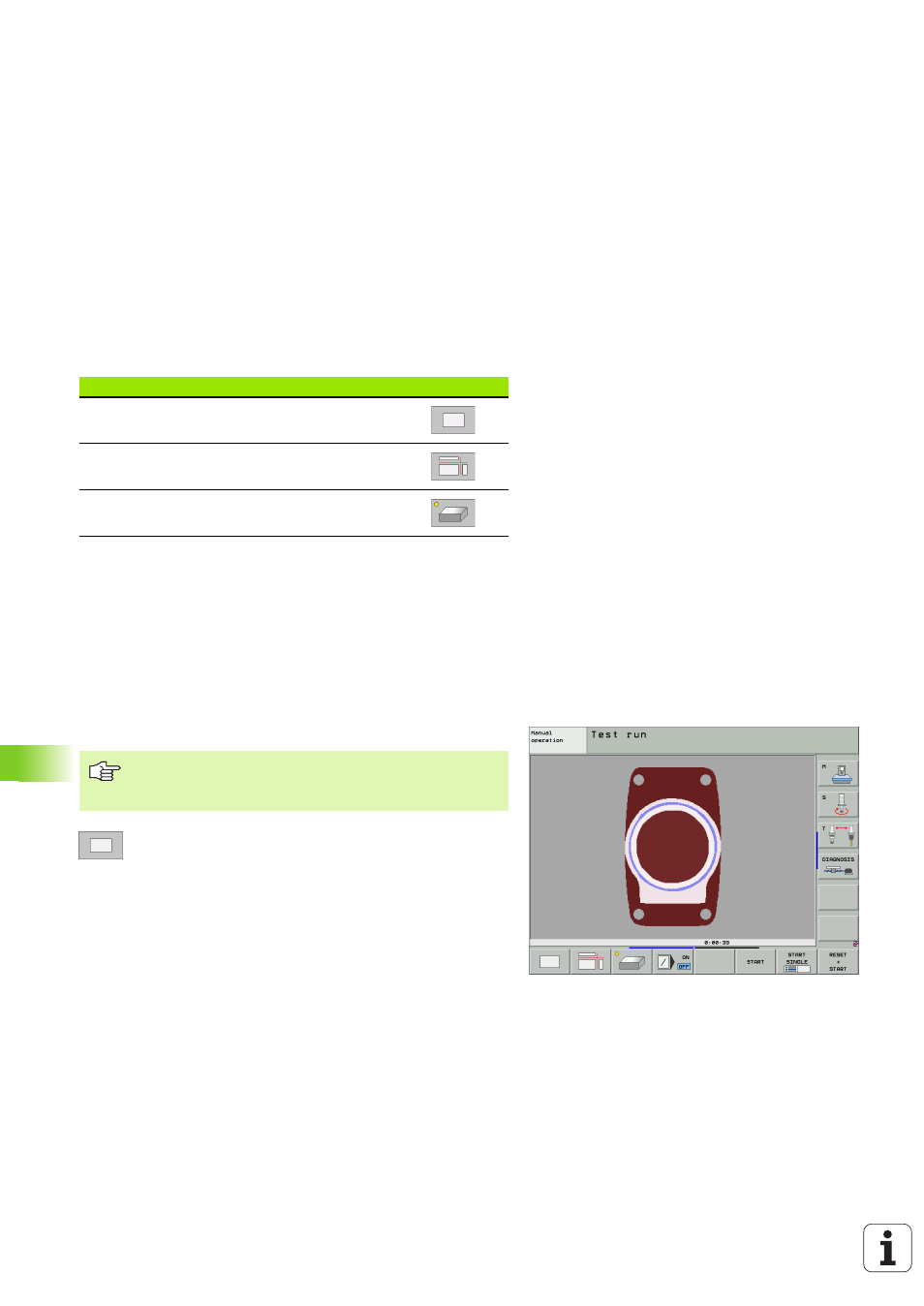

Plan view
This is the fastest of the graphic display modes.
8 Press the soft key for plan view.
8 Regarding depth display, remember: The deeper the
surface, the darker the shade.
View Soft key
Plan view
Projection in 3 planes
3-D view
If your machine has a mouse, the status bar shows the
depth of any location on the workpiece when you move
the mouse pointer over it.
