54 JUPITER AccuSwitch Soft Panels and Visual Status Display Instruction Manual
Section 4 — VSD Introduction
View
Create Custom View : Opens a new Custom view window allowing entry
of the IP address of the server to which the VSD will connect. A row must
be selected for this button to be active.
Open Custom View : Opens the Open Custom View window. Any custom
view, that is closed, will be listed in the window.
Close Current View : Closes the view that is currently being shown.
Delete Current View : Removes the existing View.
Tools
Change/ Set Password : Opens the Password dialog.
Tie Line Clearing Editor : Opens the Tie Line Clearing Editor.
Options : Opens the Options window allowing changes to VSD settings.
Help
About Jupiter VSD : Opens the About Jupiter Visual Status Display screen.
This screen displays information about the Jupiter VSD including the
Version number. An example of the About screen is shown below in
Figure 63 .

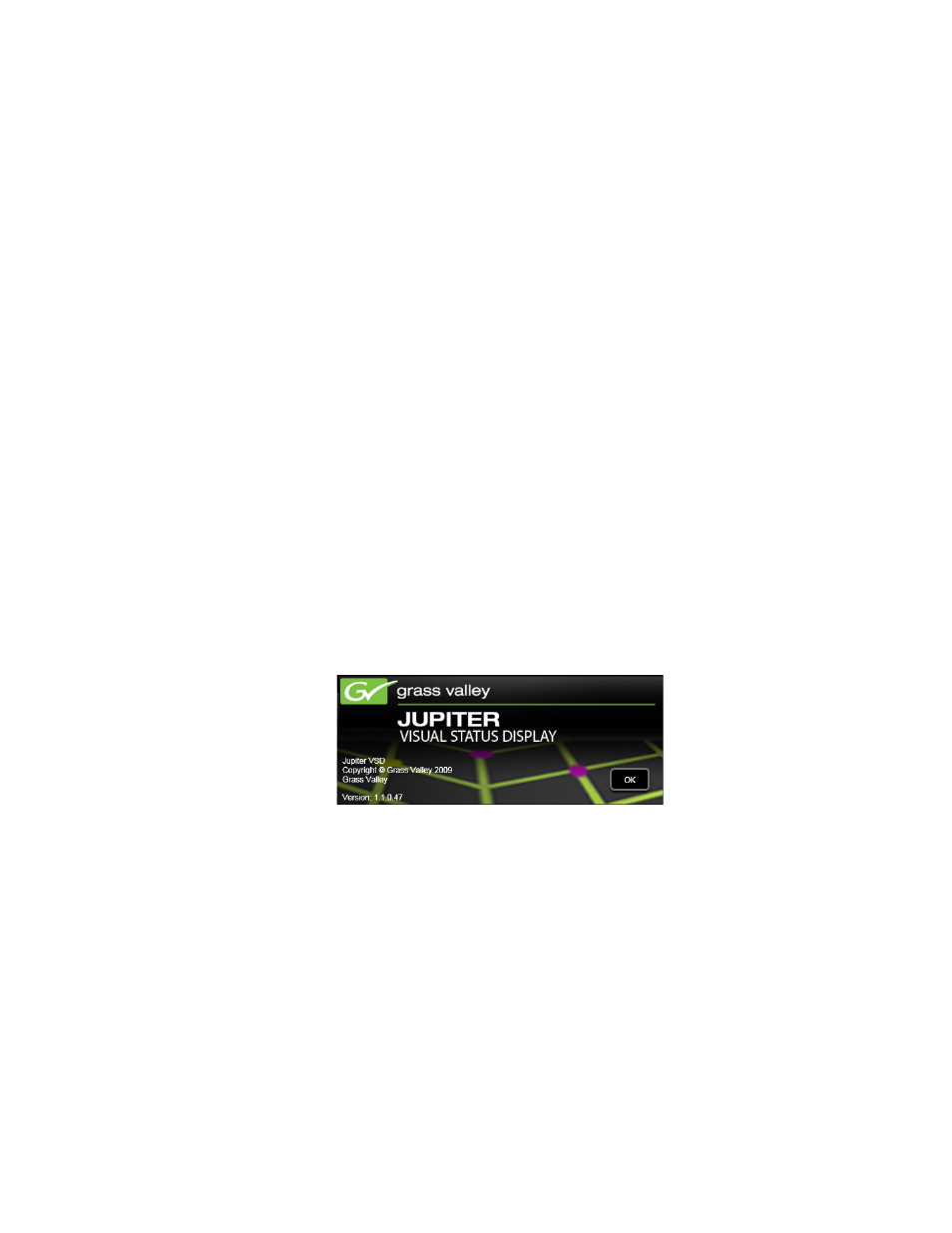

Figure 63. The Jupiter VSD About Screen
The Tool Bar
The Tool bar is a group of tools that you will use most often.
View Buttons
Create View : Opens a new Custom view window allowing entry of the IP
address of the server to which the VSD will connect. A row must be selected
for this button to be active.
Open View : Opens the Open Custom View window. Any custom view,
that is closed, will be listed in the window.
