JUPITER AccuSwitch Soft Panels and Visual Status Display Instruction Manual 31
Multi-Level XY Soft Panel Main Screen Description
Help Menu
The Help menu currently has the About Jupiter Multi-Level XY option. An
About screen will appear when this option is selected. The About screen
has the following information: Copyright information, the name of the
application, and the current version number of application. An example of
the about screen is shown below (
Figure 30 ).

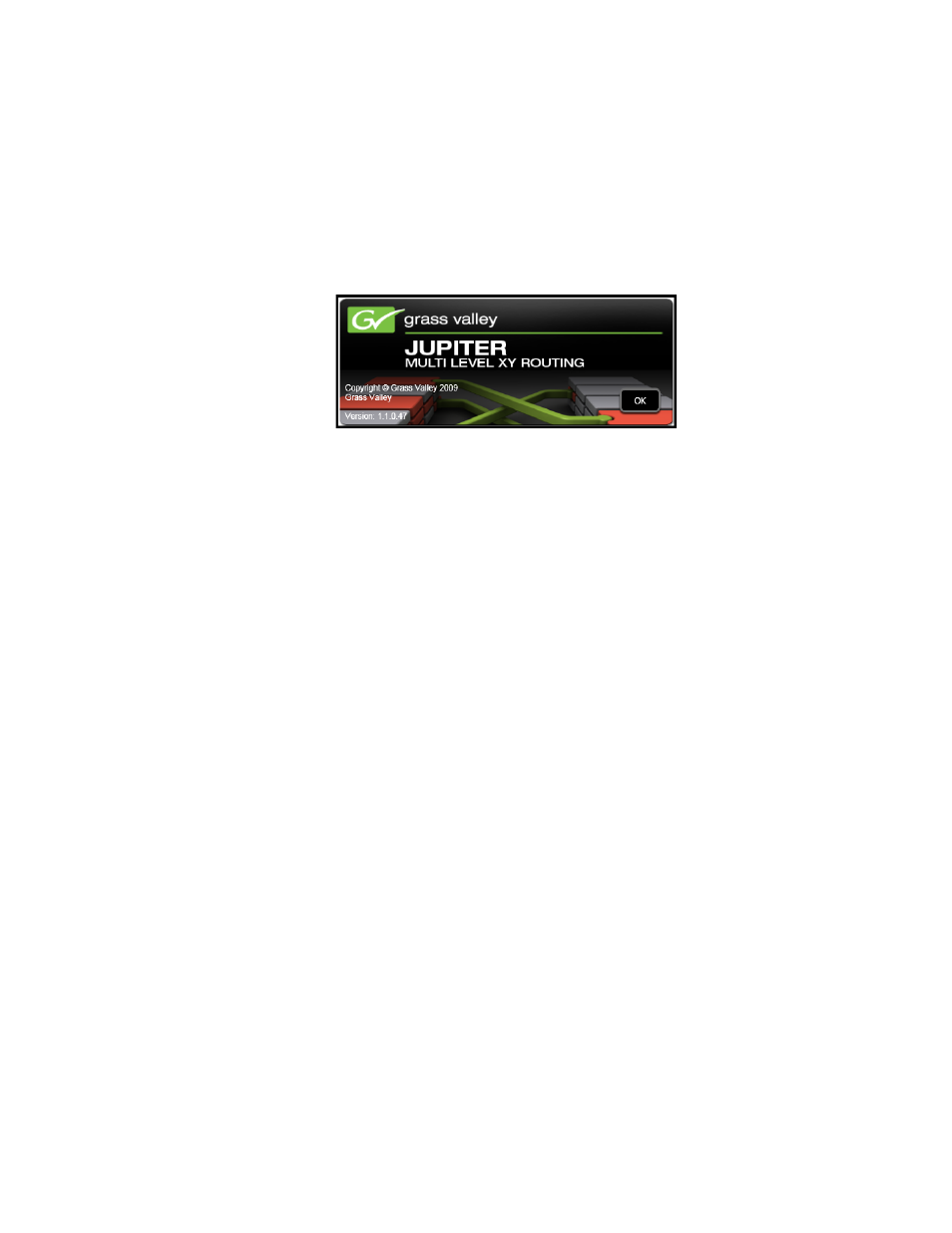

Figure 30. The Multi-Level XY About Screen
Click the OK button to close the About screen.
Multi-Level XY Soft Panel Descriptions
Display Fields
The definitions for the Multi-Level XY soft panel screen’s display fields are
provided below.
Source Categories - Displays the matrix router source categories that can be
selected by this Soft Panel.
Source Entries - Displays the specific matrix router sources that can be
selected by this Soft Panel.
Destination Categories - Displays the matrix router destination categories that
can be controlled by this Soft Panel.
Destination Entries - Displays the specific matrix router destinations that can
be controlled by this Soft Panel.
Page Indicator - Displays what page is being displayed for the Destination
Categories, Source Categories, Destination Entries, and Source Entries sec-
tions (For example, page 1 of 2.).
Preset - Displays a preview of the names of the new sources after they have
been selected. After the Take button is pressed, the previous source is then
shown in the Preset row, which allows you to “flip-flop” the sources, or to
switch between the current and preset sources by repeatedly pressing the
Take button.
Status - Displays the source presently switched to the panel's controlled des-
tination (shown for the levels listed in the “Level” row).
