Vcc-x expansion module 1 wiring, Vcc-x em1 expansion module output wiring, Vcc-x controller technical guide – Orion System VCC-X Controller User Manual

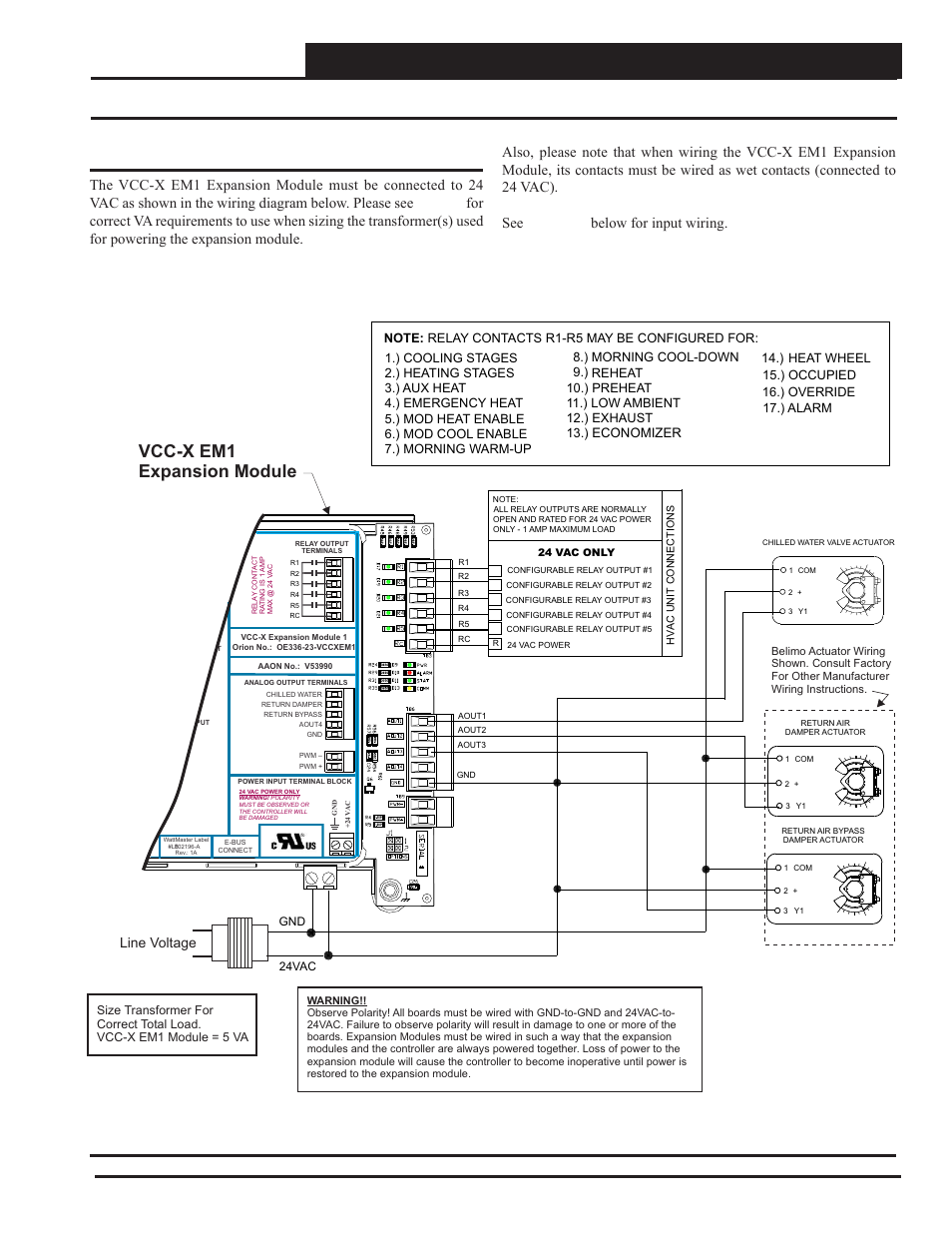

Page 41: 41 vcc-x em1 expansion module outputs, Vcc-x em1 expansion module, Line voltage, Economizer 14.)
