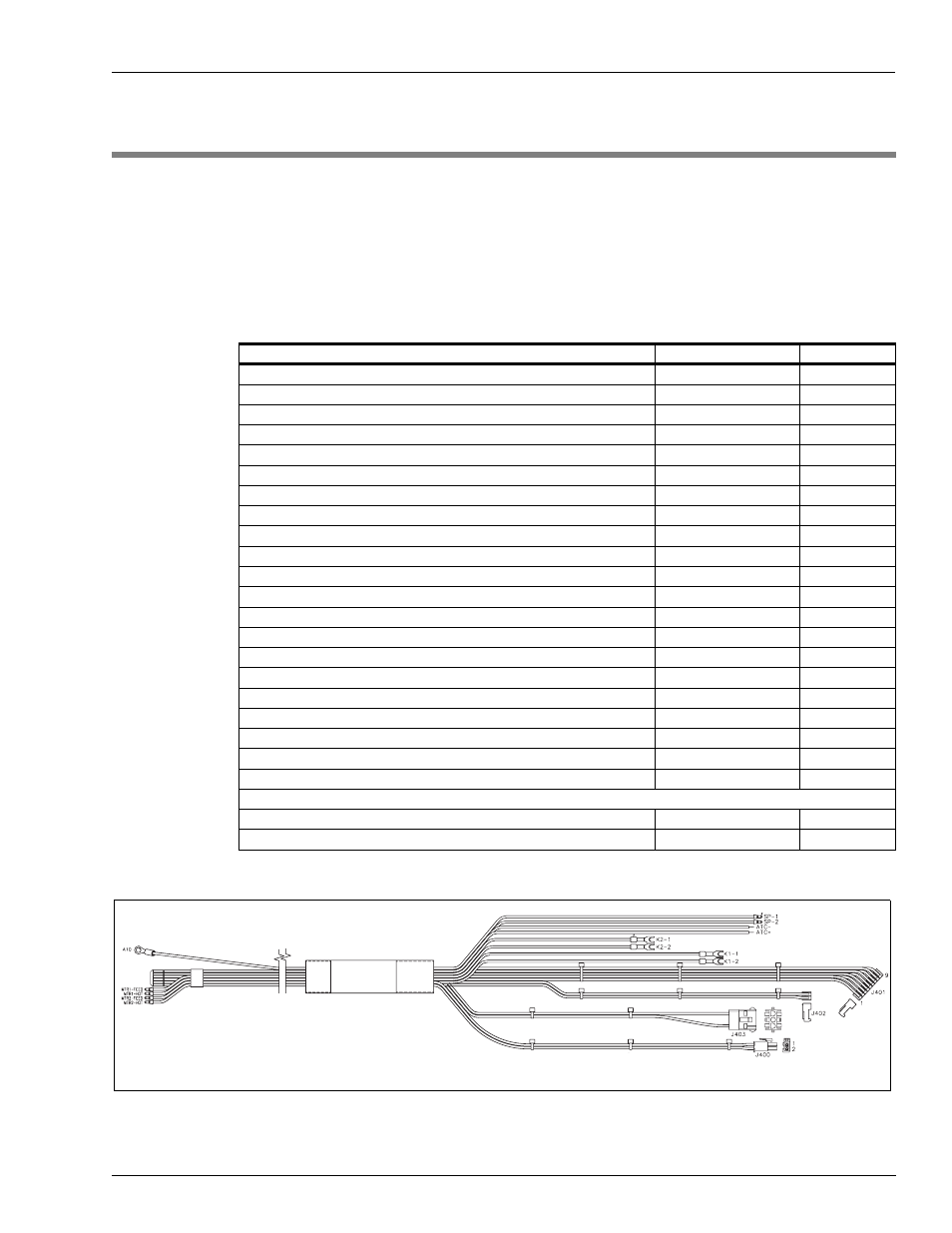

Standard Cables
Retail Cables
Retail Cables
Note: Refer to MDE-4334 Atlas Series Start-Up/Service Manual for Cable block diagrams.
Standard Cables
Part Description
Current Part
Previous Part
Main AC Power Cable and Conduit Assembly
M04850A006
-
Main AC Cable
T19983-G1
-
Main DC Interface Cable
M04658A001
-
LCD Main Display Cable
T17768-G1
-
Backlight Cable
T19872-G1
-
Manager Keypad Cable and Controller to Interface Cable
R19951-G1
-
Cable 2-wire Assembly
R20412-G3
-
Controller to Interface Cable
R19939-G1
-
Pulser Cable
R19072-G1
-
Motor Relay Cable 115 V
M04659A001
-
Motor Relay Cable 230 V
M04659A002
-
Motor Relay Cable 380 V
M04659A003
-
Power Select Plug for 115 V Power Supply
N21120-G6
-
Power Select Plug for 220 V Power Supply
N21120-G8
-
Power Select Plug for 230 V Power Supply
N21120-G9
-
Power Select Plug for 240 V Power Supply
N21120-G10
-
Varistor Assembly 115 V
T17448-G1
-
Varistor Assembly 230 V
T17448-G3
-
Electro-Mechanical Totalizer
M00455A003
-
Totalizer Retail Atlas Cable
M04889A001
-
Front-load Conduit and Cable Assembly
M05969A002
-
Not Shown
Audio Transducer
Q11763-01
-
Magnet, Actuator
Q12514-02
-
M04850A006
