Ultra-Hi Commercial Printed Circuit Boards Displays and Display Panels
Page 156 PT-1949D Gasboy Atlas™ Pump and Dispenser Illustrated Parts Manual · March 2010

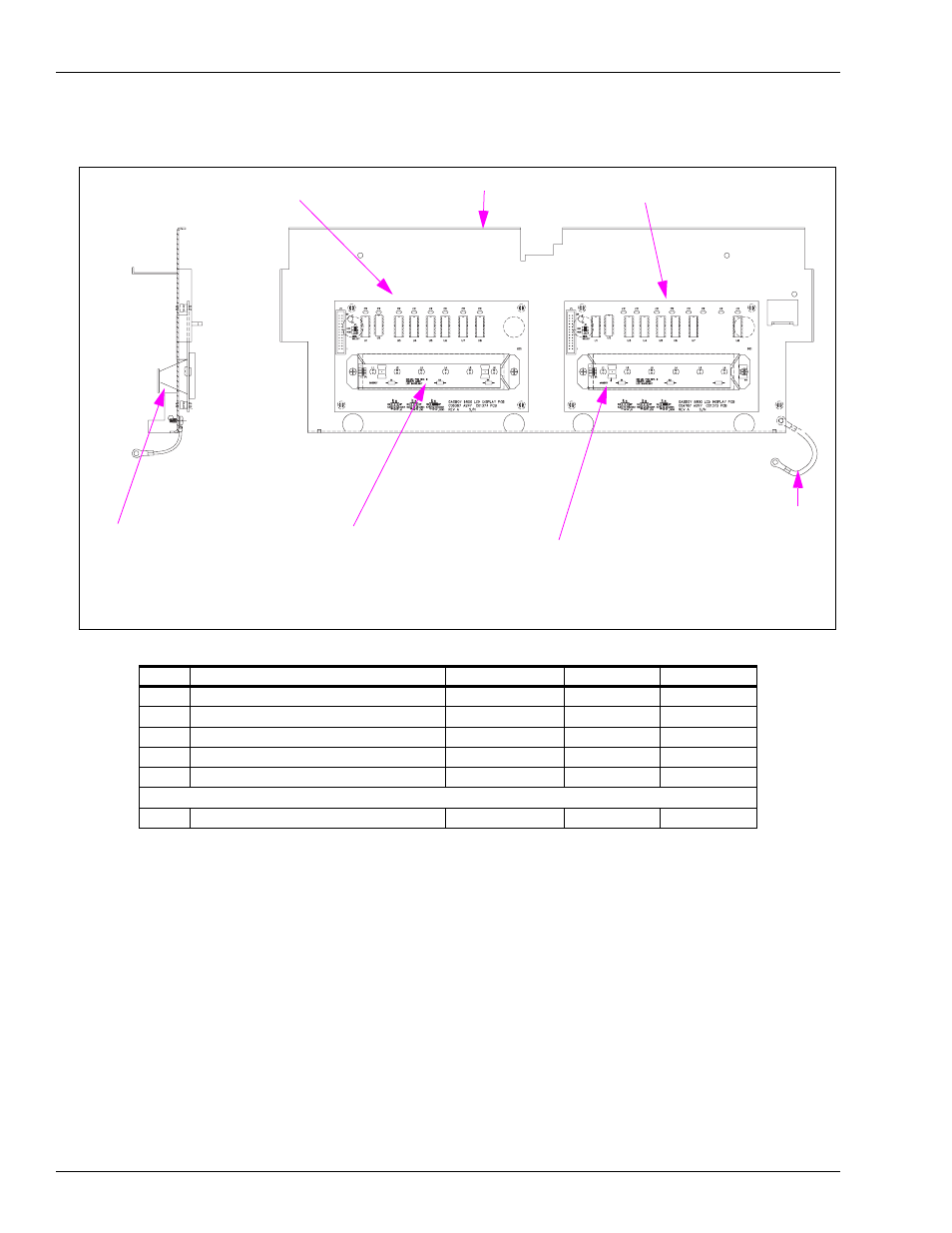

Ultra-Hi Display Panel and PCBs - Dual Side Load
5
4
4
2 2
3
M05771A001 (2 per Unit)
1
Item # Part Description Current Part Previous Part Quantity
1 Panel PCB Support Dual M05642B001 - 1
2 PCB Assembly, LCD Display C06387 - 2
3 Reflector LCD-Backlight 9 C35399 - 2
4 PCB Assembly, LED Sale Bklight C06372 - 2
5 Cable Assembly, Gnd #8R+Braid C06454 - 1
Not Shown
6 Mntg Button, 0.031/0.094 Grip C09701 - 4
