Nozzle Boots, Hose Hook, and Internal Hose Retrievers
Front-load Nozzle Boot
Page 14
PT-1949D Gasboy Atlas™ Pump and Dispenser Illustrated Parts Manual · March 2010

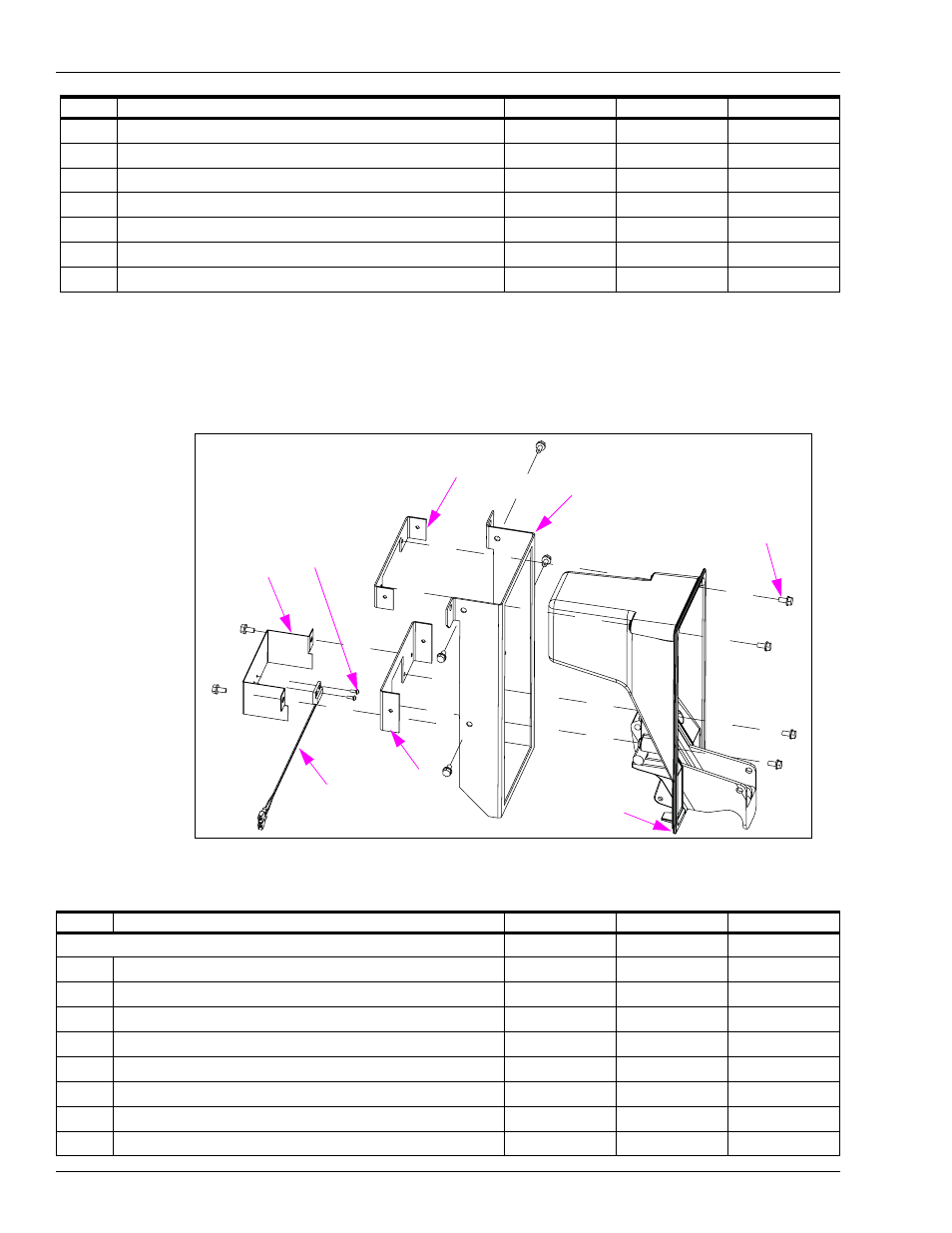

Front-load Nozzle Boot
1
2
3
4
5
6
7
8
Item #
Part Description
Current Part
Previous Part
Quantity
Assembly, Front-load Nozzle Boot
M04827A001
-
1
1
• Assembly. Nozzle Boot
W03879-G1
-
1
2
• Bracket, Nozzle Boot Mounting
M04826B001
-
1
3
• Bracket, Nozzle Boot Mounting
M04829B001
-
1
4
• Bracket, Nozzle Boot Mounting
M04829B002
-
1
5
• Bracket, Switch Mounting
M05314B001
-
1
6
• Screw, 6-32 X 3/8 Panhead
Q11769-15
-
2
7
• Screw, T8, Hex Washer HD M6 X 12
K85736-51
-
10
8
• Sensor Assembly - Nozzle Boot
C04243
-
1
Refer to the following table for Front-load Nozzle Boot Parts.
12
• Spacer, Nylon 0.115 1d X 0.312 od X 0.562
013190
-
2
13
• Spring, Handle
029363
-
1
14
• Switch Magnetic Reed
Q12514-10
-
1
15
• Truarc Retaining Ring
K76238-20
-
2
16
• Lock Washer, 5/16 PL
K73278-28
-
2
17
• Washer, Brass
067109
-
2
18
• Washer, Wave Bearing Loading
068951
-
1
Item #
Part Description
Current Part
Previous Part
Quantity
