Mechanical Pulser Option Dual Unit Volume
Page 112 PT-1949D Gasboy Atlas™ Pump and Dispenser Illustrated Parts Manual · March 2010

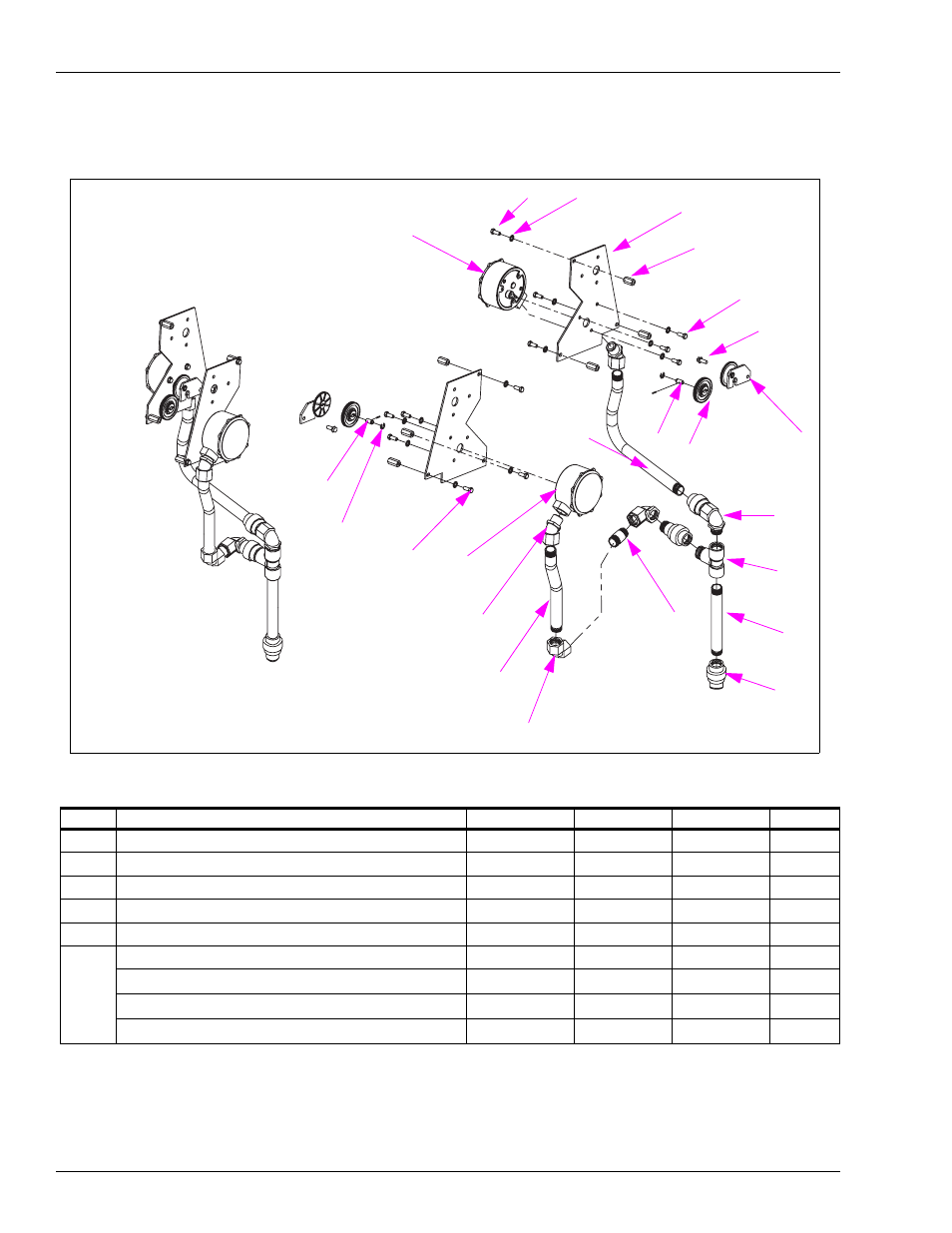

Dual Unit Volume
1
3 5
4
6
18
6
2
7
12
14
16
17
8
9
10
11
13
15
19
20
21
22
Item # Part Description Where Used Current Part Previous Part Quantity
1 Top Spacer All 056895 - 2
2 Screw, Hex Head Cap, Finished All - - 6
3 Washer, Lock Ext 1114 All 068891 - 12
4 Plate Mounting Pulser All 046970 - 2
5 Spacer, 0.944 All 056877 - 4
6 Pulser and Coupling Assembly
• Pulser and Coupling Assembly 10:1 Volume 1 046973 - 2
• Pulser and Coupling Assembly 100:1 Volume 5 046972 - 2
• Pulser and Coupling Assembly 1:1 Volume 6 046969 - 2
Where Used:
All = All Mechanical Dual Units
1 = Pulser 10:1, gallons, Commercial and Retail, no EK 5 = Pulser 100:1, gallons, Commercial and Retail, no EK
2 = Pulser 10:1, gallons, Commercial only, with EK 6 = Pulser 1:1, liters, Commercial only, no EK
3 = Pulser 100:1, gallons, Commercial only, split with EK 7 = Pulser 1:1, liters, Commercial only, with EK
4 = Pulser 100:1, gallons, Retail only, (money) 8 = Pulser 1:1, liters, Commercial only, split with EK
