PT-1949D Gasboy Atlas™ Pump and Dispenser Illustrated Parts Manual · March 2010
Page 65

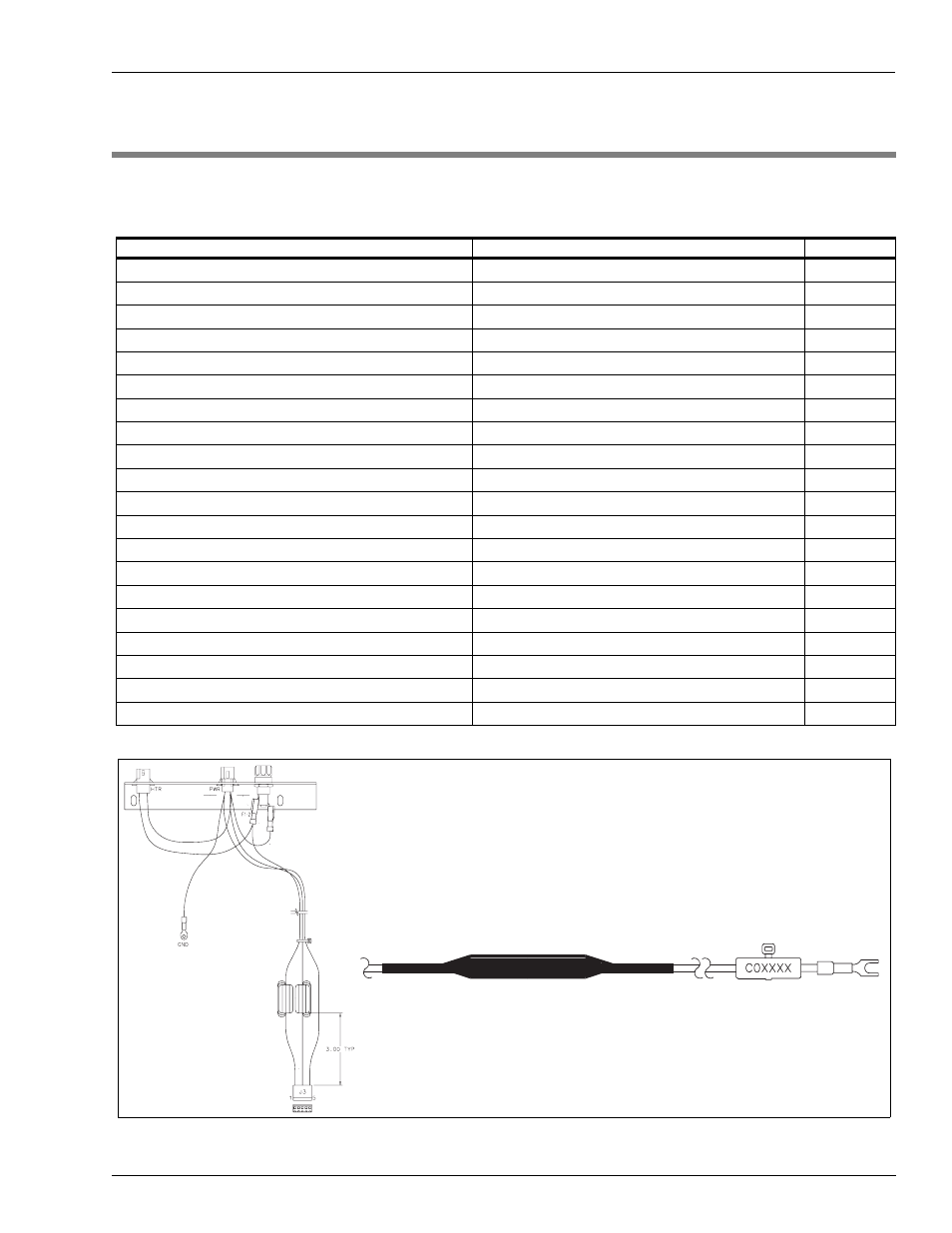

Commercial Cables
Commercial Cables
Note: Refer
Part Description
Current Part
Previous Part
AC Fuse Cable Assembly
M05110A001
-
Main AC Power Cable Assembly
M04850A008
-
DC Power Cable Assembly, Pulse-out/RS-485
M05189A002
-
DC Power Cable Assembly, Dispenser Mount TopKAT
M05189A006
-
Display Cable, Single
C06455
-
Display Cable, Dual
M05109A001
-
Backlight Power Cable
M05108A001
-
Pulser Adapter Cable
M05201A001
-
Handle Switch Cable, Single
M05105A002
-
Handle Switch Cable, Dual
M05105A001
-
Heater Cable, 115 V
M05120A001
-
Heater Cable, 230 V
M05120A002
-
Authorization Cable (10 W Power Resistor Assembly), 115 VAC
C05818
-
Totalizer ATC Sensor Cable
M05119A001
-
Varistor, 115 V
T17448-G1
-
Varistor, 230 V
T17448-G3
-
Electro-Mechanical Totalizer
M00455A002
-
Display Panel Ground Cable Assembly
C06454
-
I.S Barrier, Front-load
C06766
-
Magnet, Actuator (Not Shown)
Q12514-02
-
to MDE-4334 Atlas Series Start-Up/Service Manual for cable block diagram.
M05110A001
C05818
