Retail Printed Circuit Boards ATC T-Meter Module
Page 84 PT-1949D Gasboy Atlas™ Pump and Dispenser Illustrated Parts Manual · March 2010

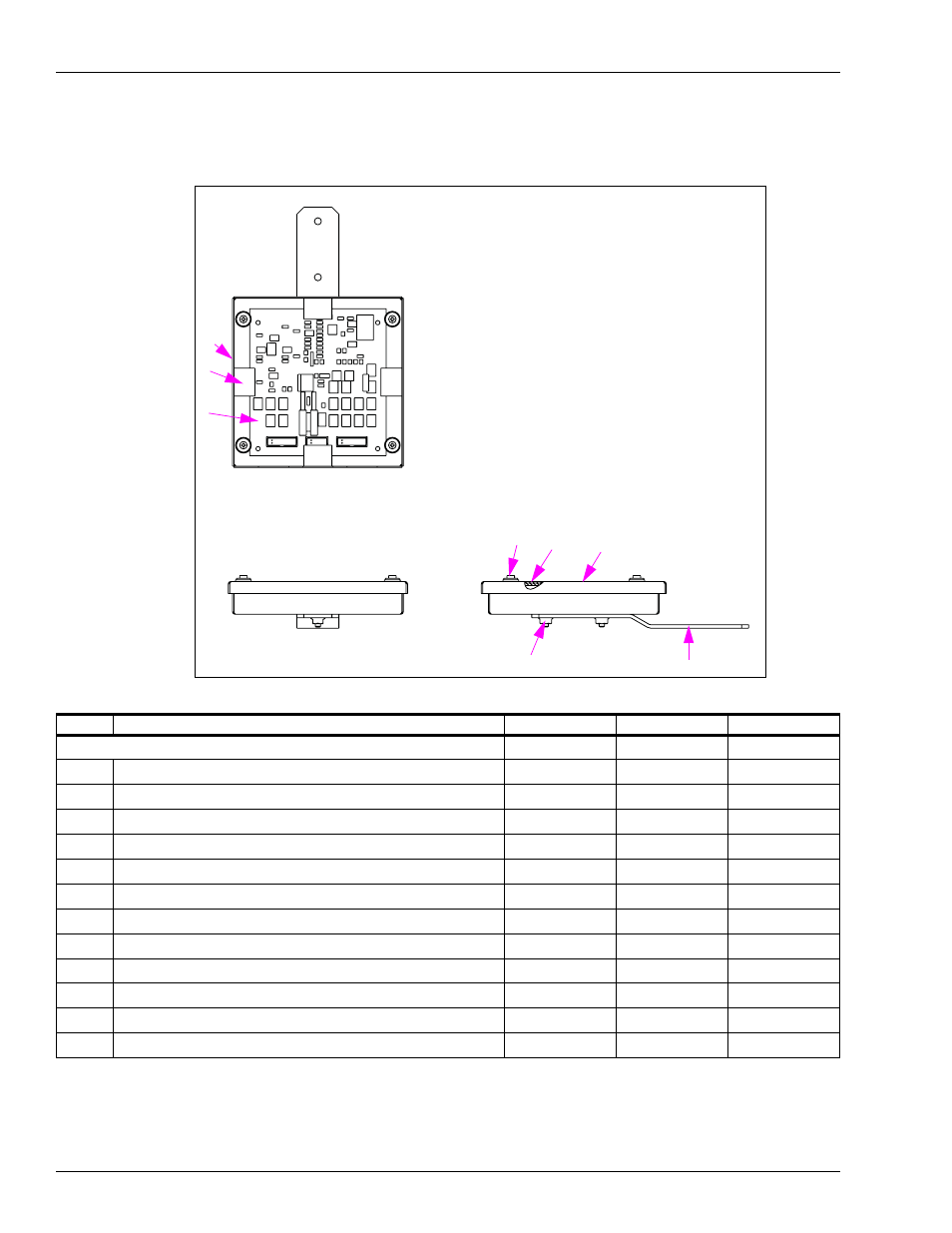

ATC T-Meter Module
11
6
5
4
1
10
9
7, 8, 12
Item # Part Description Current Part Previous Part Quantity
T-Meter Module T19405-G4 - 1
1 • Bracket, T-Meter Module Mounting M05625B001 - 1
2 • Cable Assembly, T-Meter I.S. Barrier R20147-G1 - 1
3 • Cable Assembly, T-Meter Probe R20148-G3 - 2
4 • Nut Hex Flanged #10-32 Q11890-03 - 2
5 • Pcb Assembly, T-Meter T19386-G1 - 1
6 • Ribbon Cable Support Block N23616-02 - 4
7 • Screw Self Locking Ppdh 6-32 X 0.38 K93293-06 - 4
8 • Spacer / Washer Tabulation Q10385-32 - 4
9 • T-Meter Housing Cover Gasket R20129-01 - 1
10 • T-Meter Module Cover T19397-01 - 1
11 • T-Meter Module Housing T19319-G1 - 1
12 • Washer, Flat 0.149 X 0.500 X 0.056 N16599-48 - 4
